[ES1J-SMBF] ES1JBF/ES1MBF/ES1DBF ASEMI Patch ultrafast recovery
  • TypeES1JBF

    BrandASEMI

    PackagSMBF

    FeatureUltra recovery diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    1A 50V~1000V GPP Silicon 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.95V~1.7V 30A 50MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    5uA -65℃~150℃ >35ns 3Kpcs/T&R

    Product Introduction

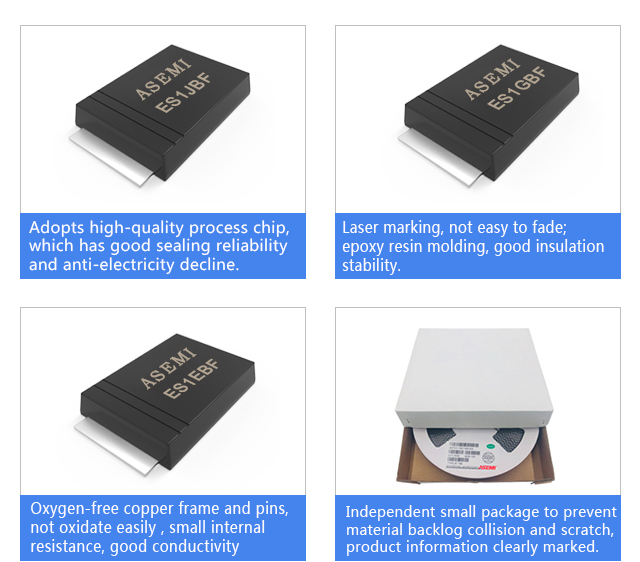

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

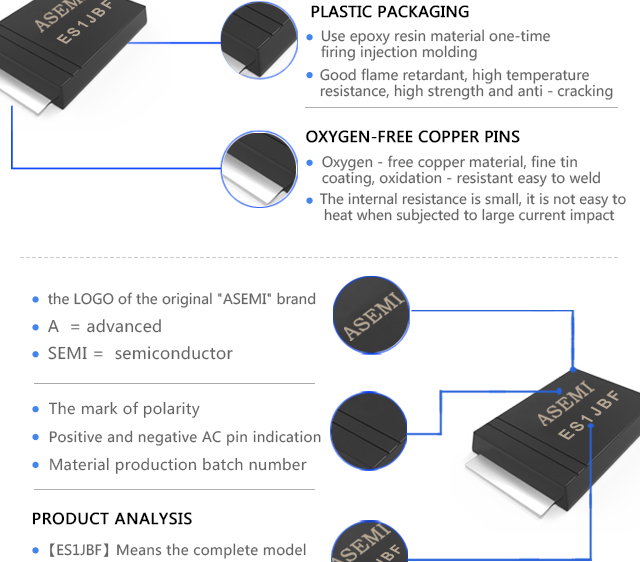

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

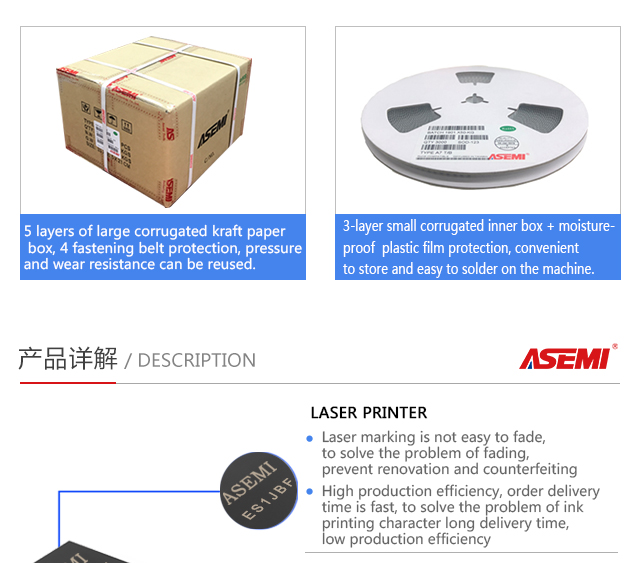

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    ES1JBF_01ES1JBF_02ES1JBF_03ES1JBF_04ES1JBF_05ES1JBF_06ES1JBF_07ES1JBF_08ES1JBF_09ES1JBF_10
