Home 0.8A~2.0A SMD BRIDGE RECTIFIER

KMB16F/KMB14F/KMB110F，ASEMI SMD schottky rectifier bridge

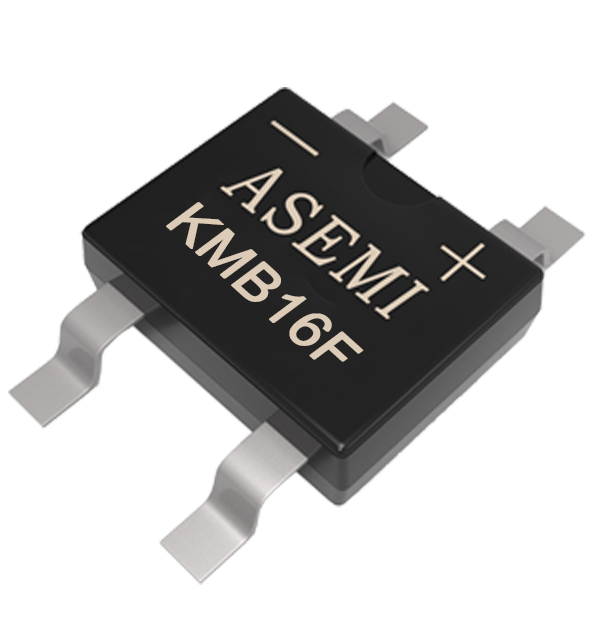

  • TypeKMB16F

    BrandASEMI

    PackagKMBF

    FeatureSMD rectifier bridge

    • 正向电流
    （lo）    		 反向耐压
    VRRM    		 芯片材质
    Material    		 芯片个数
    Number
    1A 20V~100V GPP Silicon 4
    正向电压
    （VF）    		 浪涌电流
    IFSM    		 芯片尺寸
    Chip Size    		 引线数量
    Lead Number
    0.5V~0.85V 30A 50MIL 4
    漏电流
    （lr）    		 操作温度
    Temperature    		 恢复时间
    （Trr）    		 包装方式
    Package
    5uA -55~+150℃ >5ns 5K/T&R 10K/box

    Product Introduction

    ●Rectifier bridge KMB16F electrical parameters 1A 20V~100V

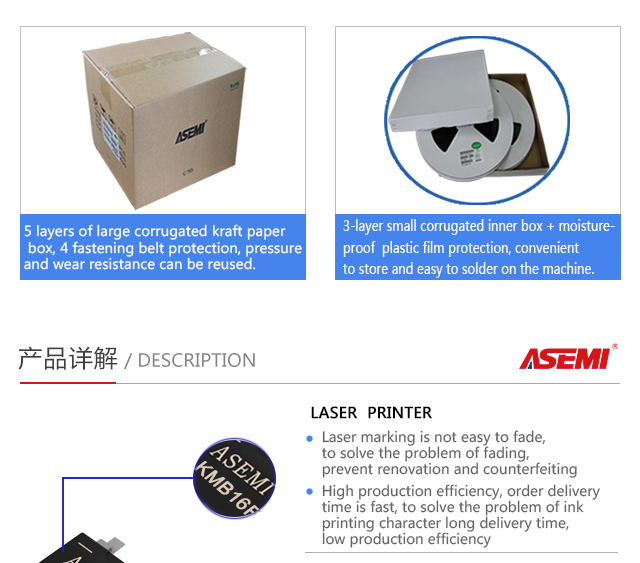

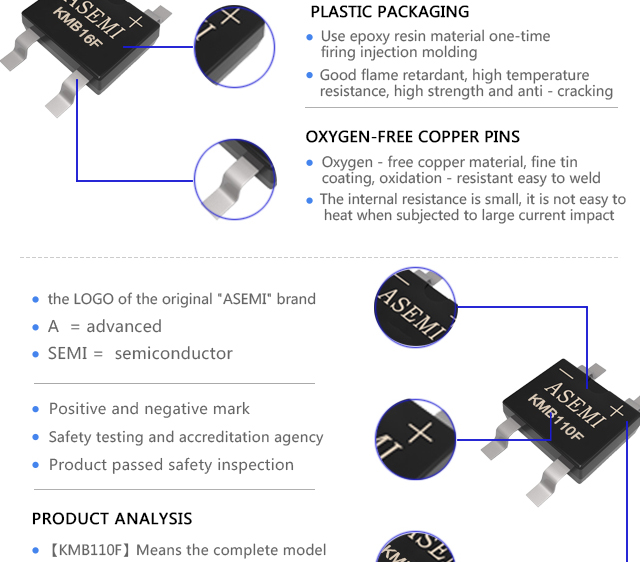

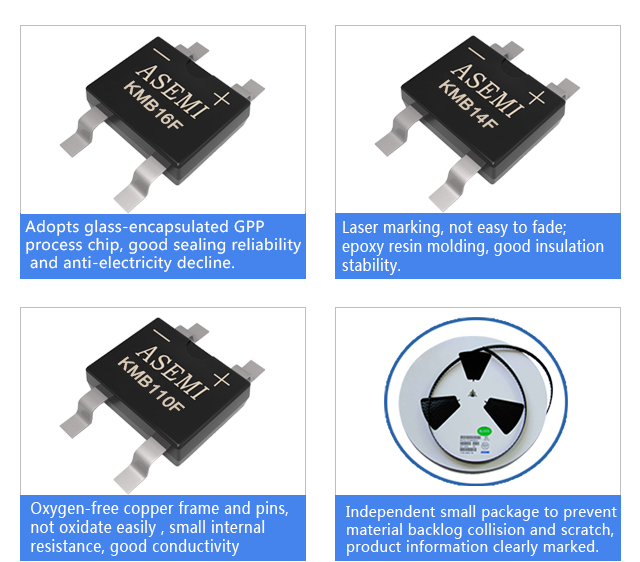

    ●Laser marking, not easily fade, vinyl material：epoxy resin material, good encapsulation stability

    ●The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction

    ●KMB16F :50K/CTN, material: kraft paper, resistant to pressure, abrasion and impact

    ●5K/T&R ,10K/box, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.

    Product details

    MB110F_01MB110F_02MB110F_03MB110F_04MB110F_05MB110F_06MB110F_07MB110F_08MB110F_09MB110F_10
