Home 1A~6A SMD STD RECTIFIER DIODE

【M7F-SMA】M6F,M5F,M4F,M3F,M2F,M1F, ASEMI Rectifier diode

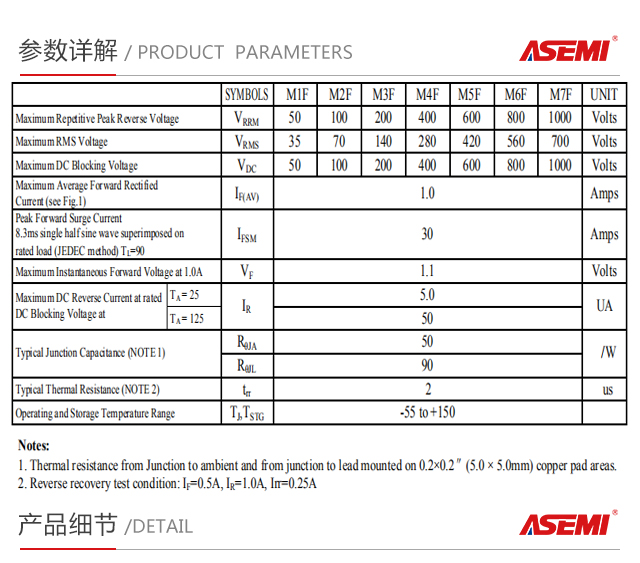

  • TypeM7F

    BrandASEMI

    PackagSMAF

    FeatureSMD diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    1A 50V~1000V GPP(si) 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.1V 30A 46MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    20ua -40℃~170℃ >>500ns 3Kpcs/T&R 6Kpcs/box

    Product Introduction

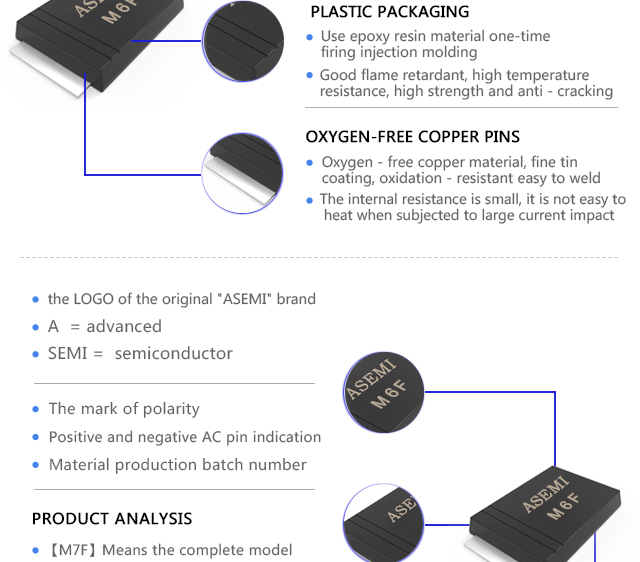

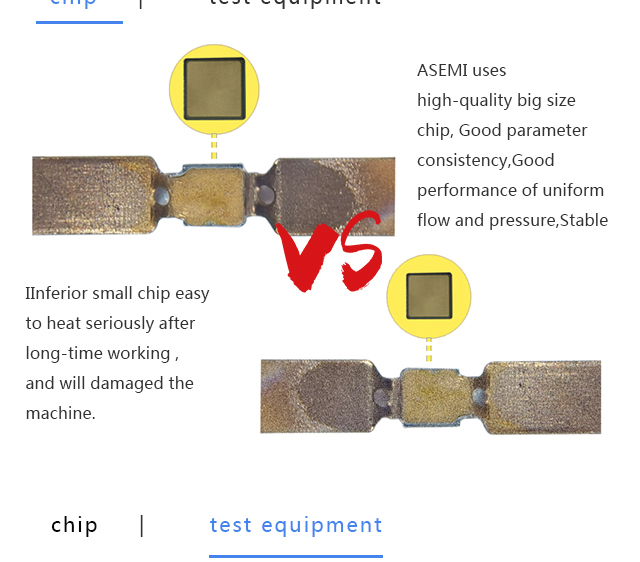

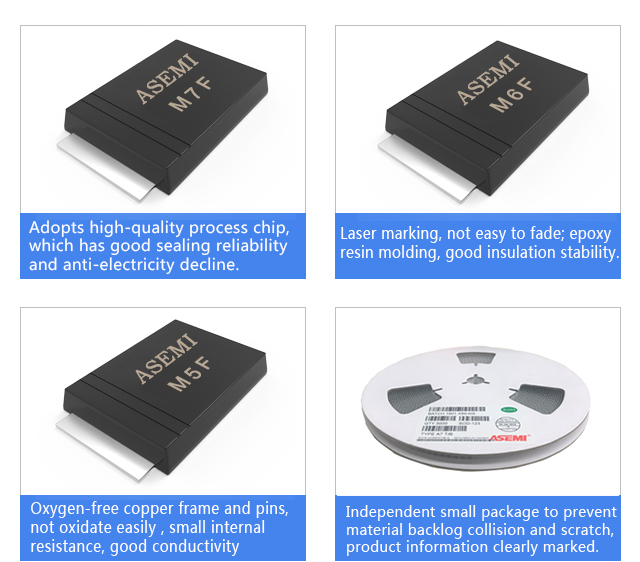

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

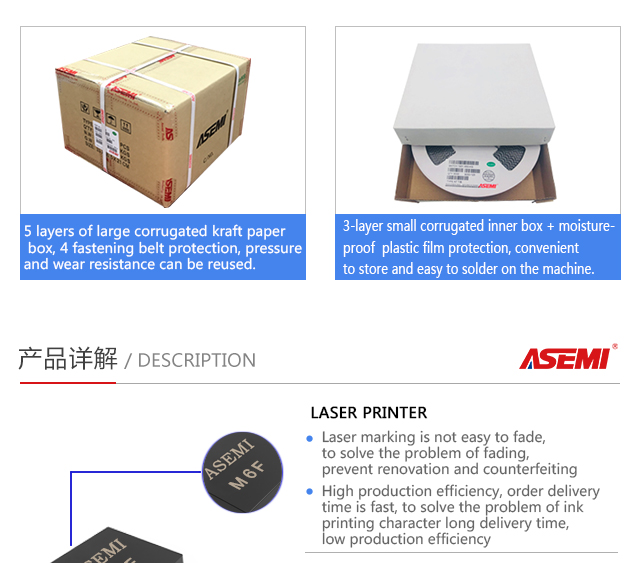

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    M7F_01

    M7F_02

    M7F_03

    M7F_04

    M7F_05

    M7F_06

    M7F_07

    M7F_08

    M7F_09

    M7F_10
