Home 20A~40A FR-SF RECTIFIER DIODE

MUR3060PT,MUR3040PT,MUR3020PT, ASEMI Super Fast recovery diode

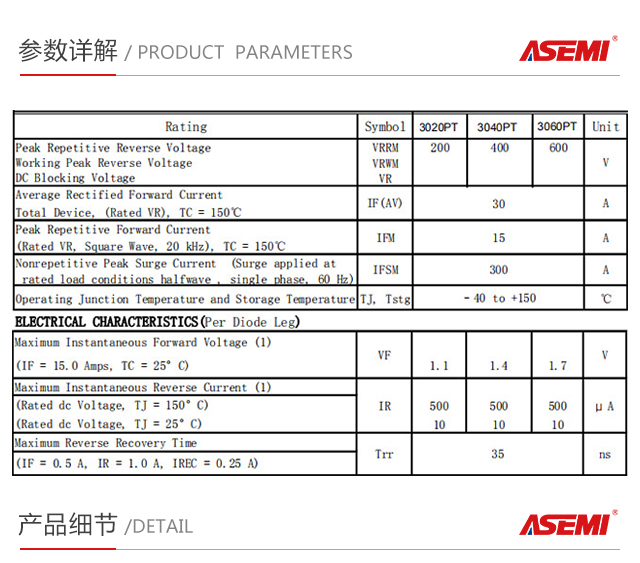

  • TypeMUR3060PT

    BrandASEMI

    PackagTO-247/3P

    FeatureFast recovery diode

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    30A 200V~600V Metal & silicon chip 2 (twin cells)
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    1.05V~1.50V 300A 130mil 3
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    20ua -40℃~170℃ >35ns 80pcs/tube.360pcs/box

    Product Introduction

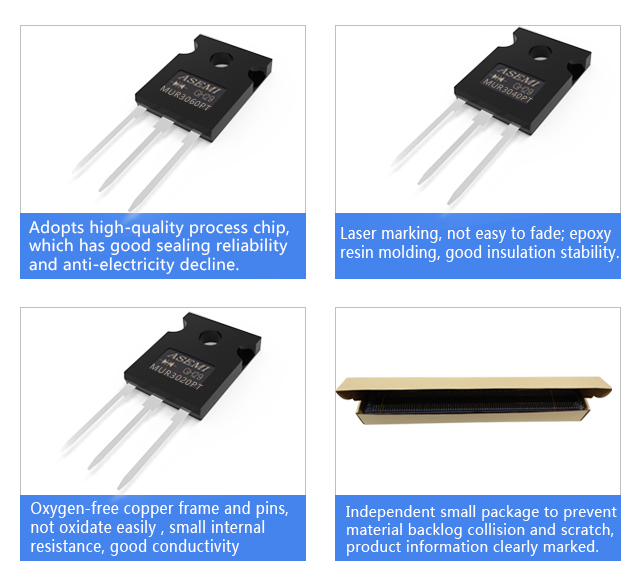

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

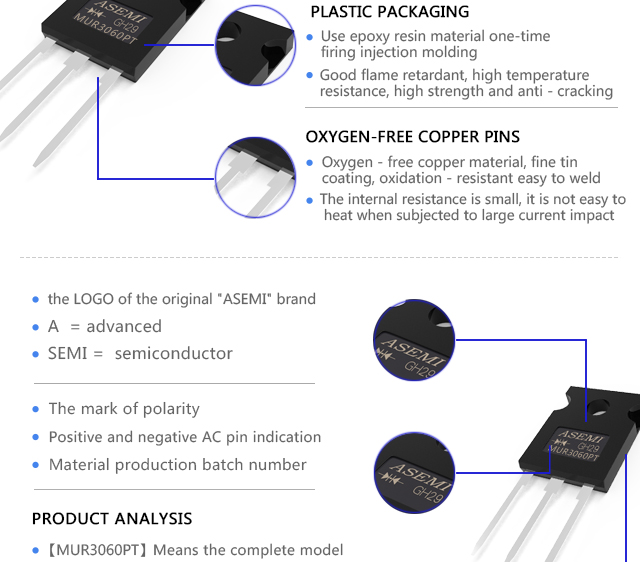

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

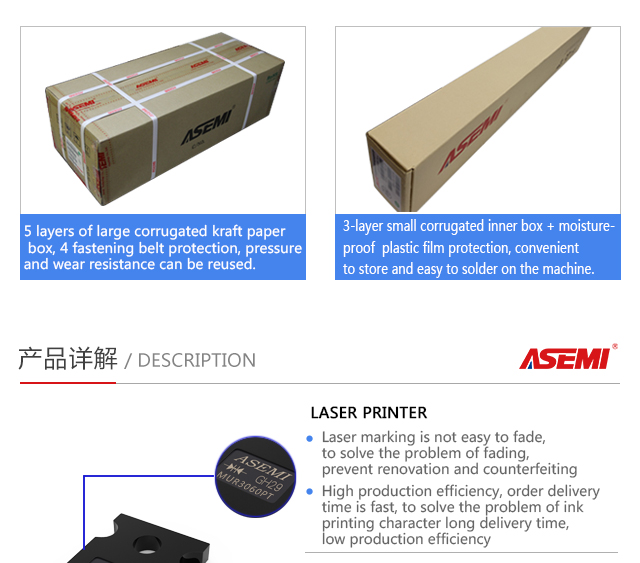

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

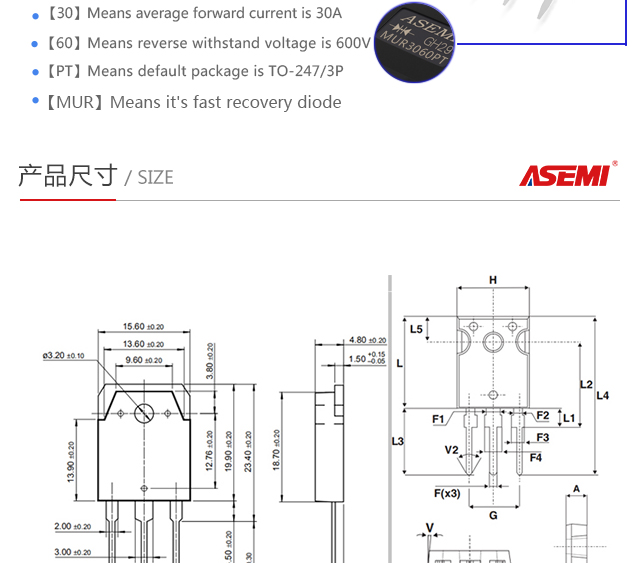

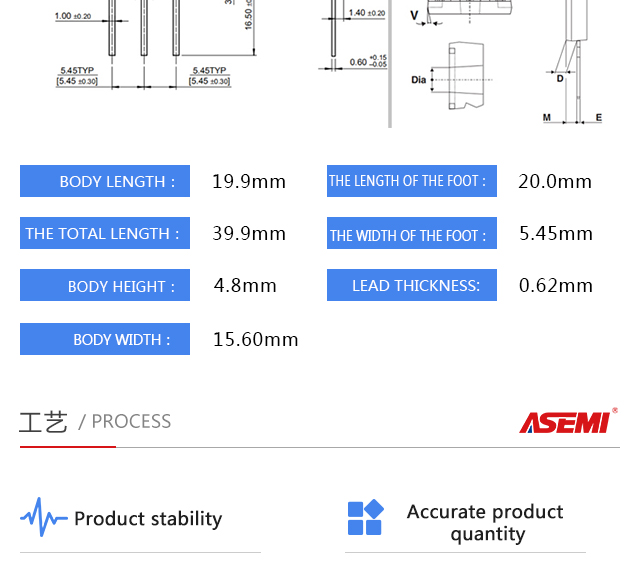

    MUR3060PT_01MUR3060PT_02MUR3060PT_03MUR3060PT_04MUR3060PT_05MUR3060PT_06MUR3060PT_07MUR3060PT_08MUR3060PT_09MUR3060PT_10
