SB40100LFCT,SB4060LFCT, SB4045LFCT, Low VF Schottky diode
  • TypeSB40100LFCT

    BrandASEMI

    PackagITO-220AB

    FeatureLOW VF

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    40A 45V~200V Metal & silicon chip 2
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.40V~0.66V 300A 120mil*2 3
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    20ua -40℃~170℃ >5ns 1Kpcs/box. 5Kpcs/ctn

    Product Introduction

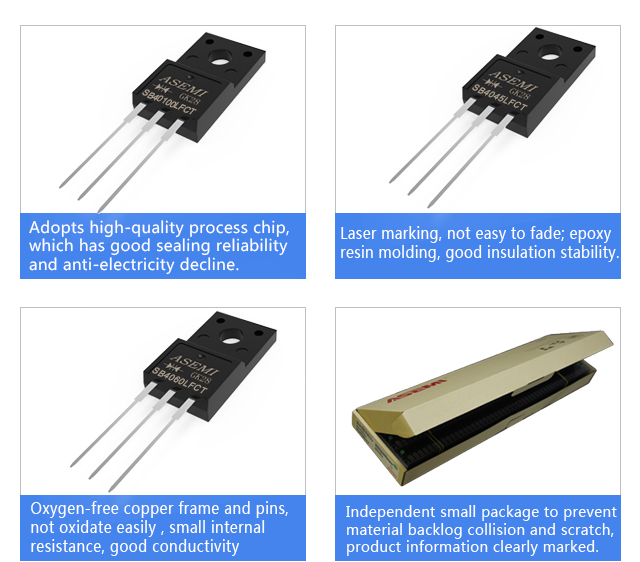

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

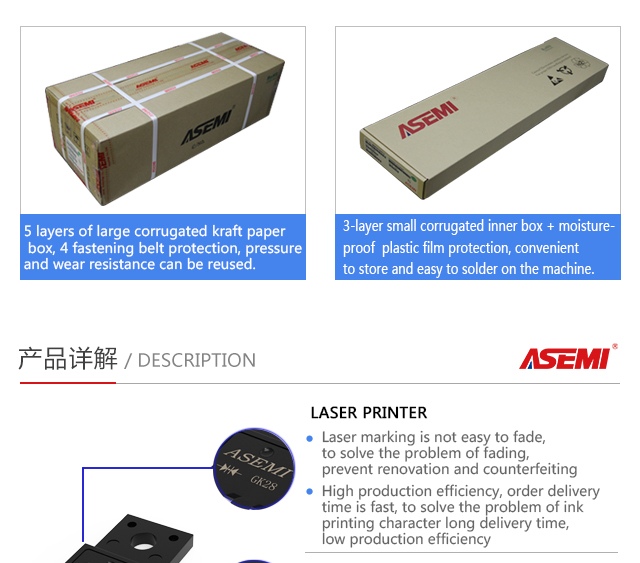

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SB40100LFCT_01SB40100LFCT_02SB40100LFCT_03SB40100LFCT_04SB40100LFCT_05SB40100LFCT_06SB40100LFCT_07SB40100LFCT_08SB40100LFCT_09SB40100LFCT_10
