Home 10A 45V~200V SCHOTTKY DIODE

SBT30100VDC,SBT30200VDC/SBT30150VDC/3060/3045VDC,ASEMI Schottky
  • TypeSBT30100VDC

    BrandASEMI

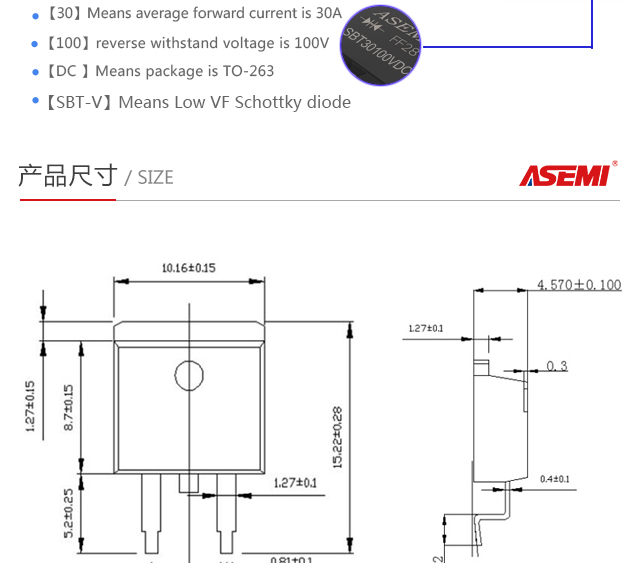

    PackagTO-263

    FeatureLOW VF

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    30A 45V~200V Metal & silicon chip 2 ( separated )
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.40V~0.66V 175A 95MIL*2 3
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    20ua -40℃~150℃ >5ns 800pcs/box. 5Kpcs/ctn

    Product Introduction

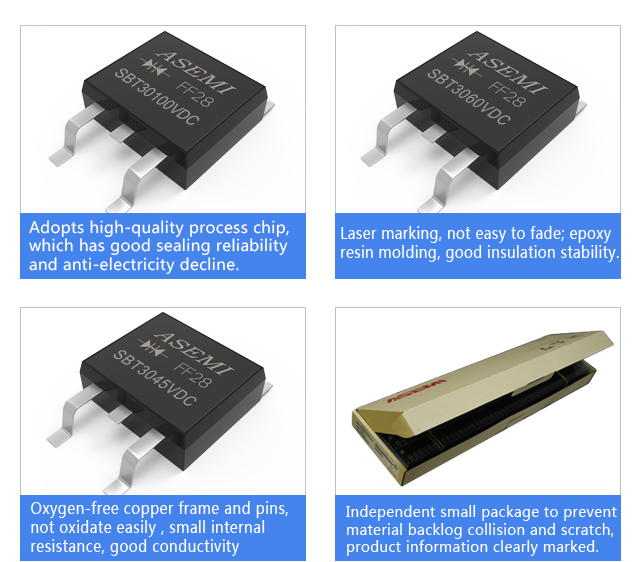

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

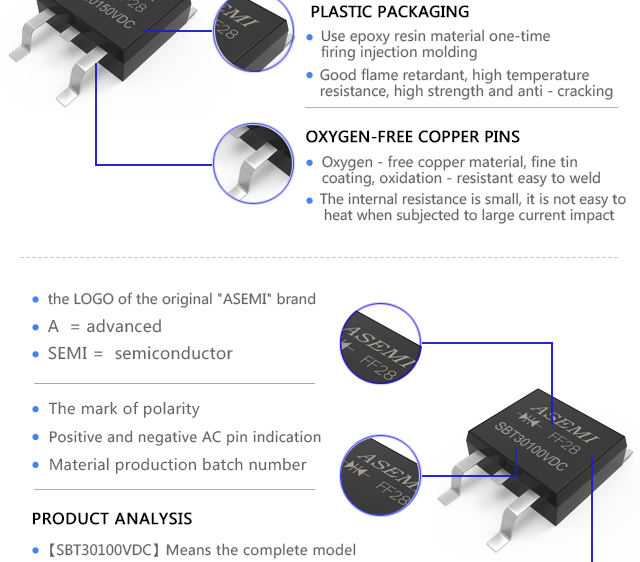

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

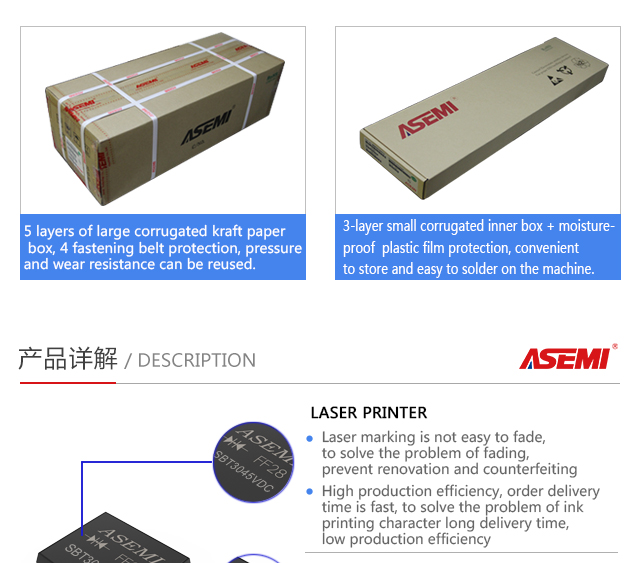

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SBT30100VDC_01

    SBT30100VDC_02

    SBT30100VDC_03

    SBT30100VDC_04

    SBT30100VDC_05

    SBT30100VDC_06

    SBT30100VDC_07

    SBT30100VDC_08

    SBT30100VDC_09

    SBT30100VDC_10
