Home 1A~6A DO FR-SF RECTIFIER DIODE

SF18//SF17/SF16/SF15/SF14/SF13/SF12, ASEMI super fast recovery
  • TypeSF18

    BrandASEMI

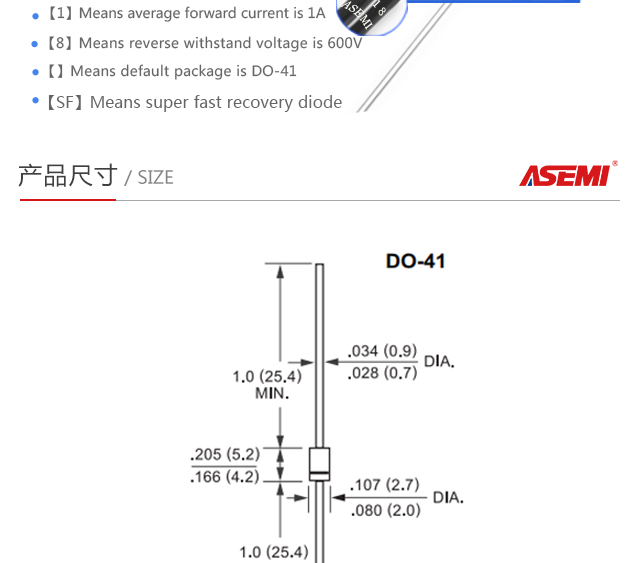

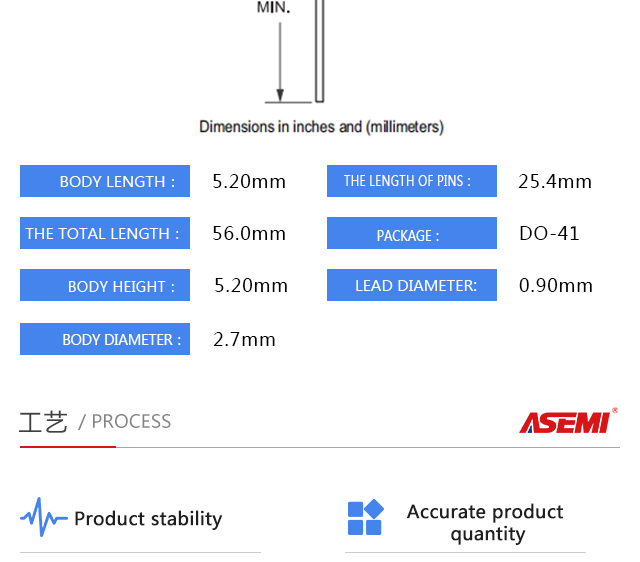

    PackagDO-41

    FeatureSuper fast diode

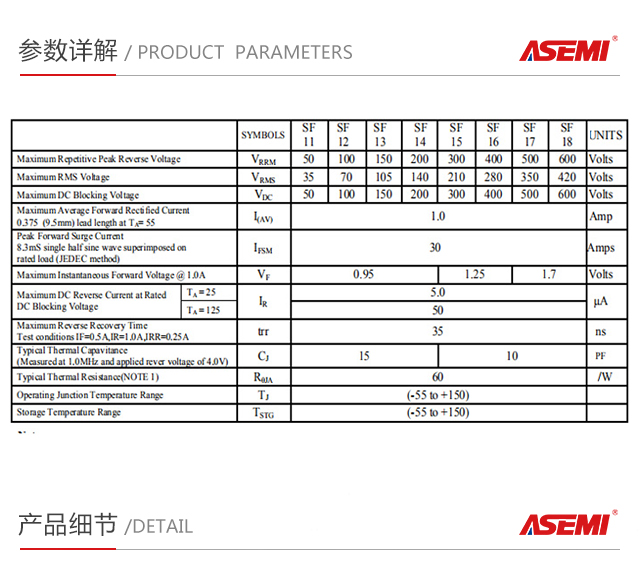

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    1A 50V~1000V GPP silicon chip 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.95V~1.7V 30A 50mil 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    5ua -55~+150℃ >50ns>75ns 5Kpcs/box

    Product Introduction

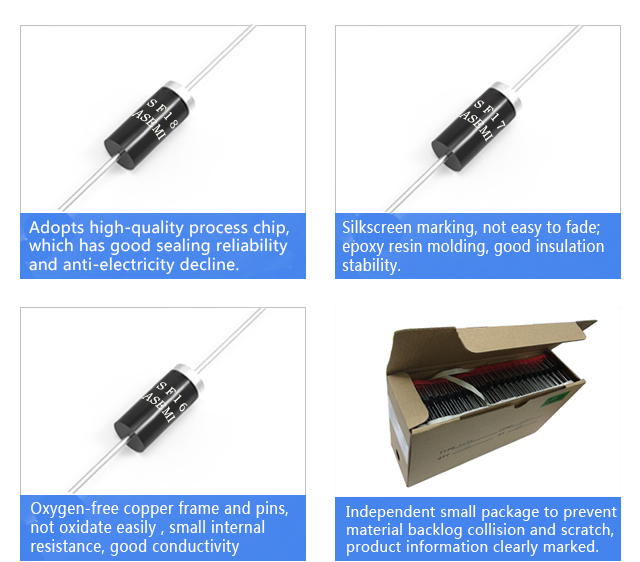

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

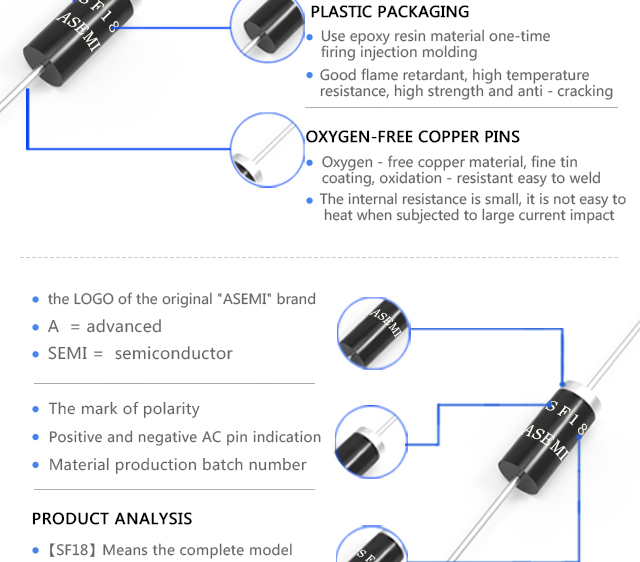

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

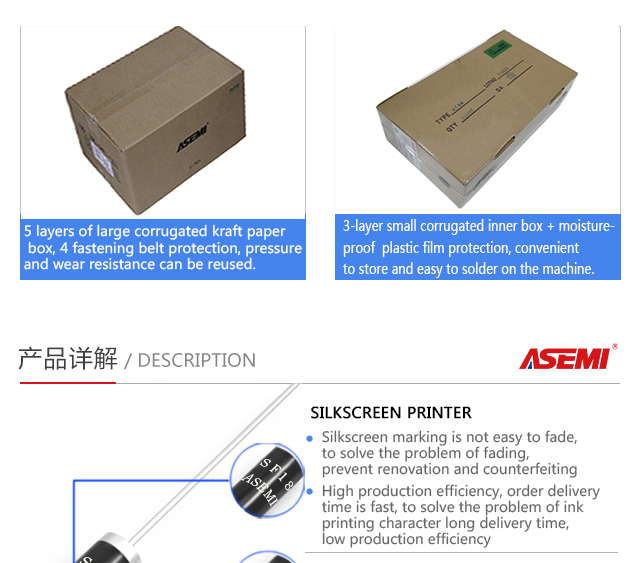

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SF18_01SF18_02SF18_03SF18_04SF18_05SF18_06SF18_07SF18_08SF18_09SF18_10
