TypeSF38
BrandASEMI

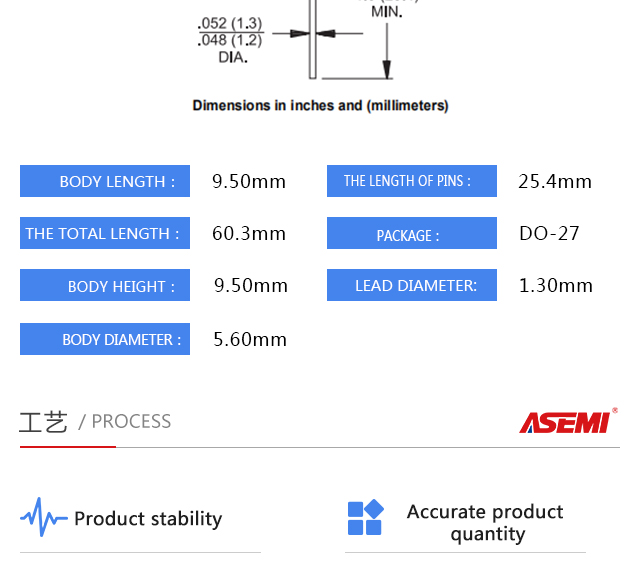

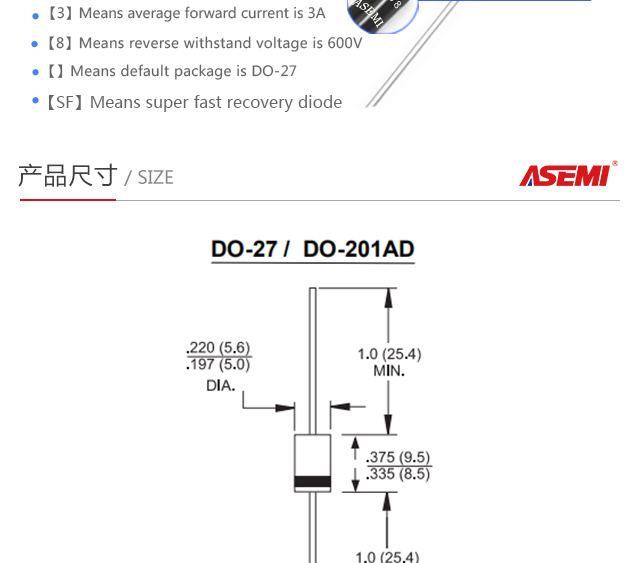

PackagDO-27
FeatureSmall current, Axial type

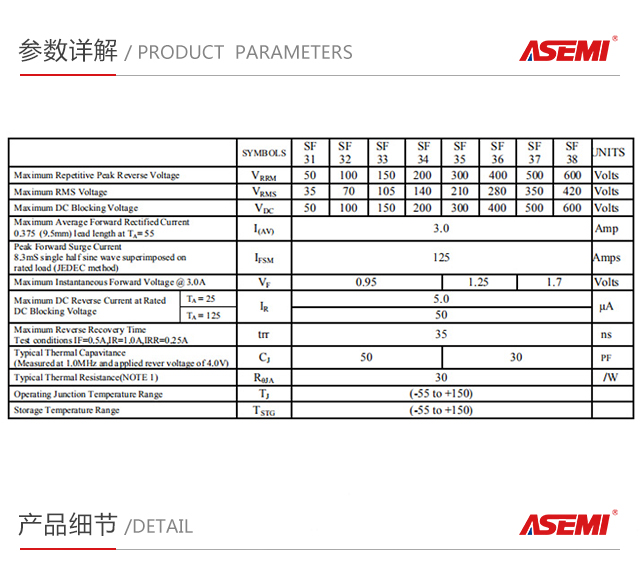

正向电流 (lo) |
反向耐压 VRRM |
芯片材质 Material |
芯片个数 Number |
---|---|---|---|
3A | 50V~600V | GPP Silicon | 1 |
正向电压 (VF) |
浪涌电流 IFSM |
芯片尺寸 Chip Size |
引线数量 Lead Number |
1.25~1.7V | 125A | 90MIL | 2 |
漏电流 (lr) |
操作温度 Temperature |
恢复时间 (Trr) |
包装方式 Package |
≤5ua | -55~+150℃ | >35ns | 1.2Kpcs/box |

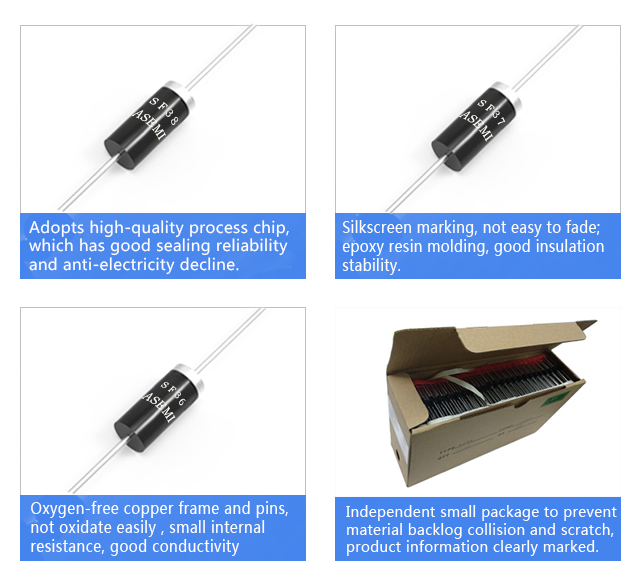

●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

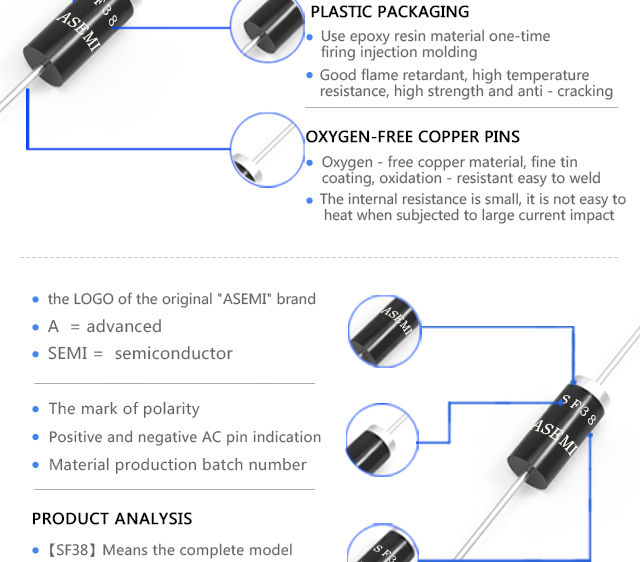

●Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

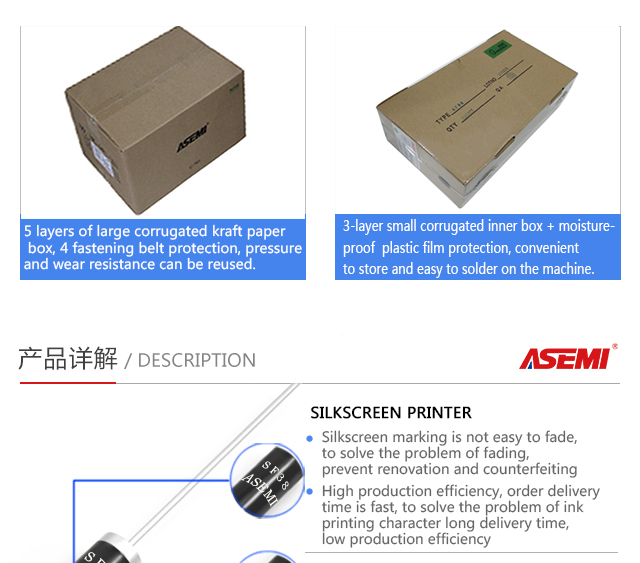

●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
