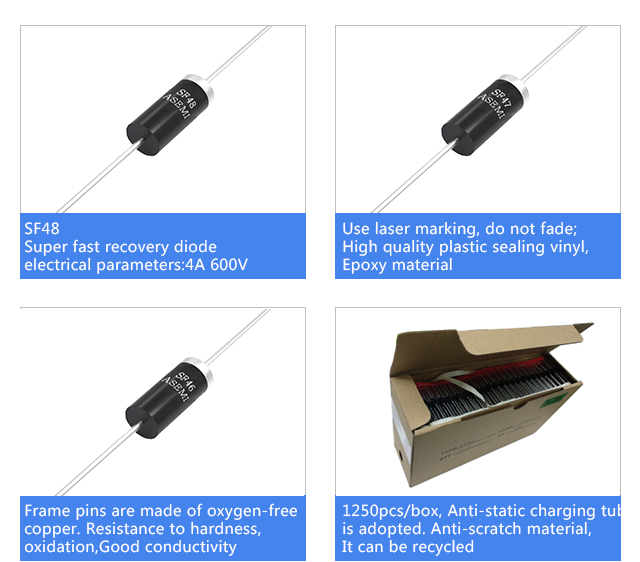

[SF48-DO-27] SF48/SF47/SF46 ASEMI super fast recovery diode

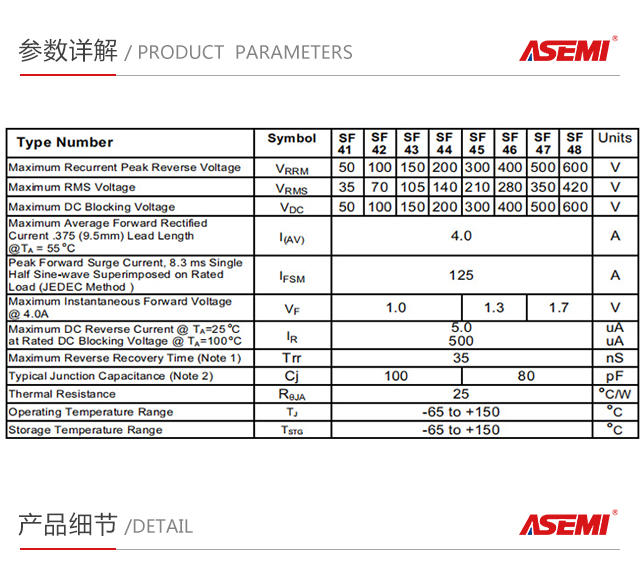

  • TypeSF48

    BrandASEMI

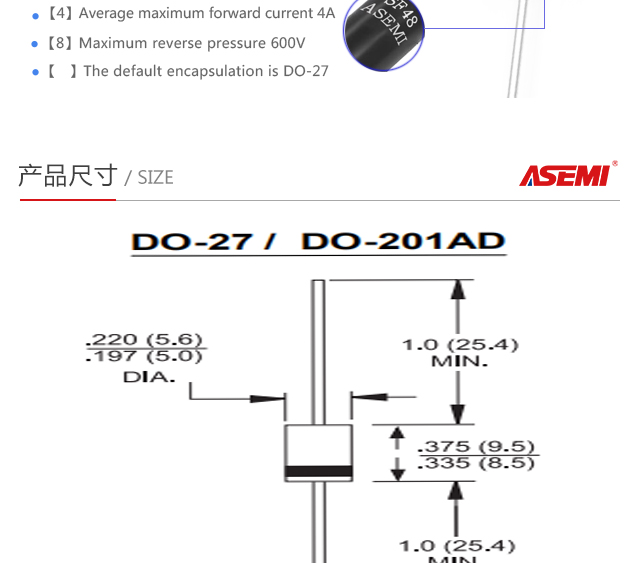

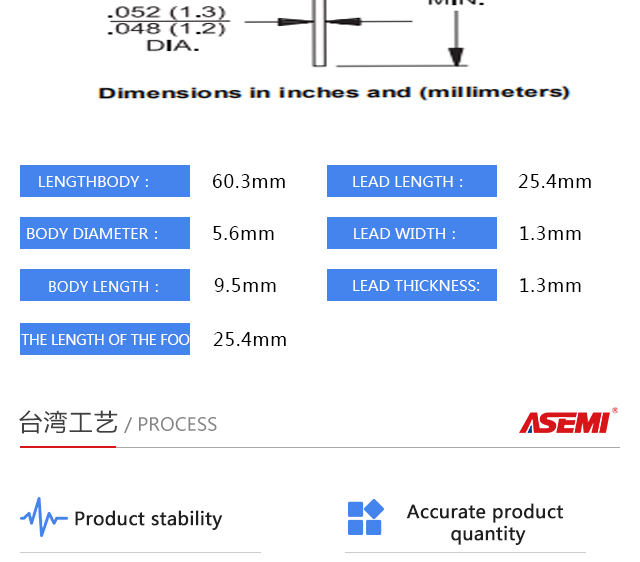

    PackagDO-27

    FeatureSmall current, Axial

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    4A 50V~600V GPP Silicon 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number

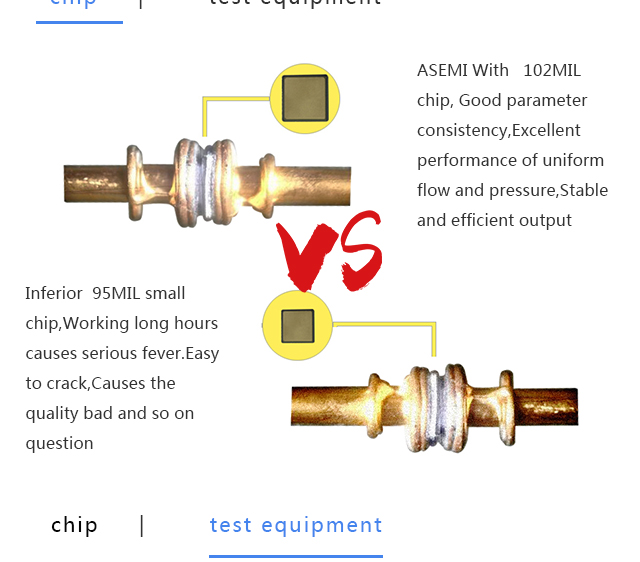

    1.3~1.7V 125A 102MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    ≤5ua -40~+150℃ >35ns 1.2KPCS/T&R

    Product Introduction

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

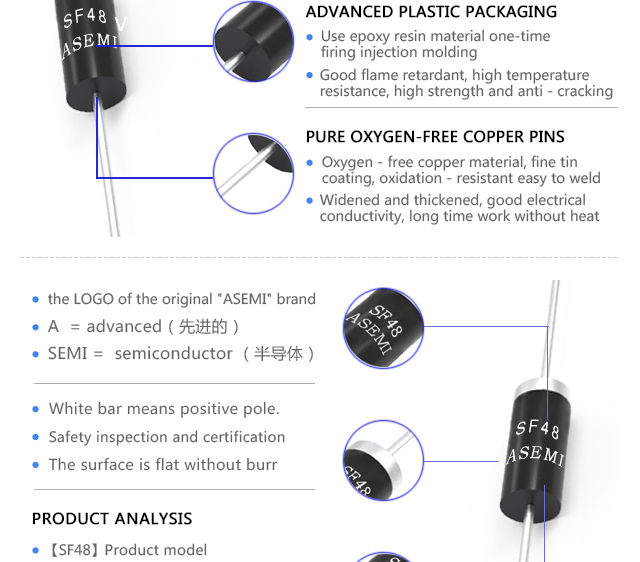

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

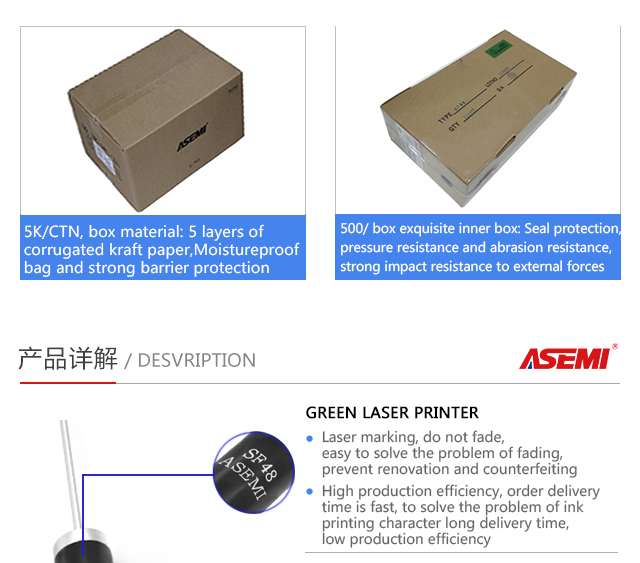

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SF48_01

    SF48_02

    SF48_03SF48_04SF48_05SF48_06SF48_07SF48_08SF48_09SF48_10
