Home 1A~5A DO SCHOTTKY DIODE

[SR3100-DO-27] SR3100/SR3150/SR3200/SR380 ASEMI Schottky diode

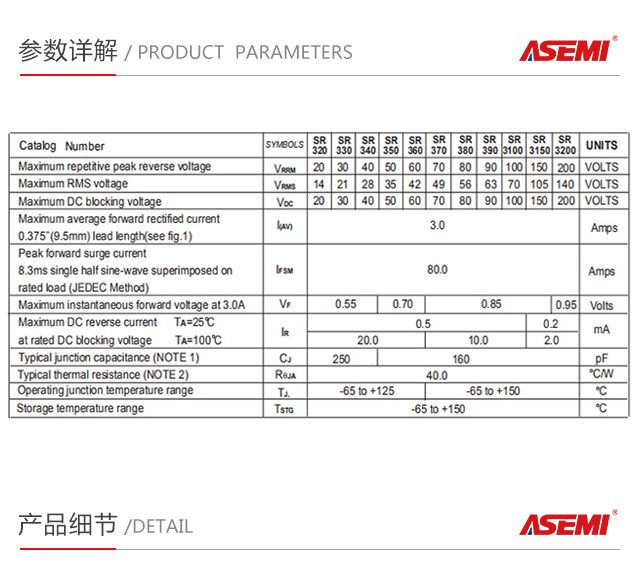

  • TypeSR3100

    BrandASEMI

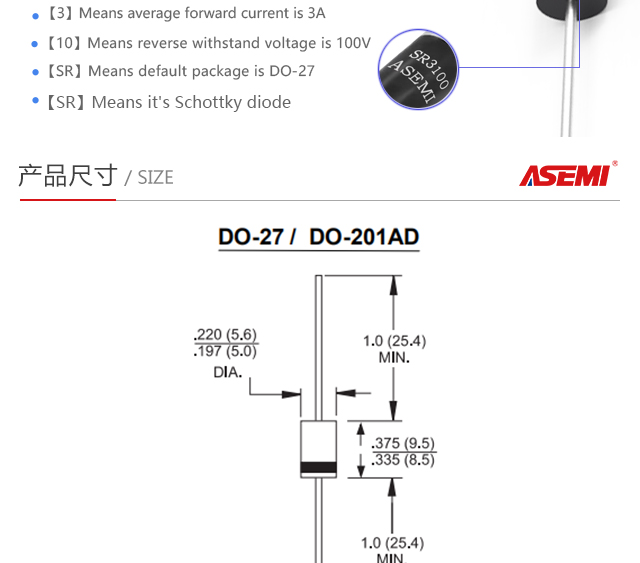

    PackagDO-27

    FeatureSmall current, Axial type

  • 正向电流
    (lo)
    反向耐压
    VRRM
    芯片材质
    Material
    芯片个数
    Number
    3A 20V~200V GPP Silicon 1
    正向电压
    (VF)
    浪涌电流
    IFSM
    芯片尺寸
    Chip Size
    引线数量
    Lead Number
    0.55~0.95V 80A 55MIL 2
    漏电流
    (lr)
    操作温度
    Temperature
    恢复时间
    (Trr)
    包装方式
    Package
    10mA -65~+150℃ >5ns 1.2Kpcs/box

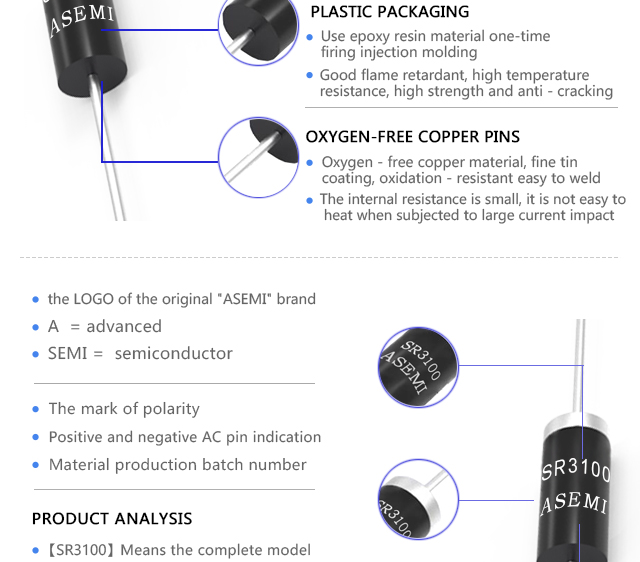

    Product Introduction

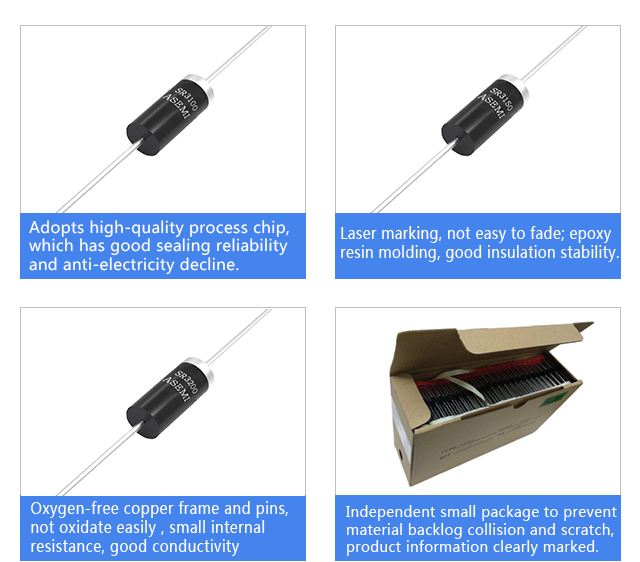

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

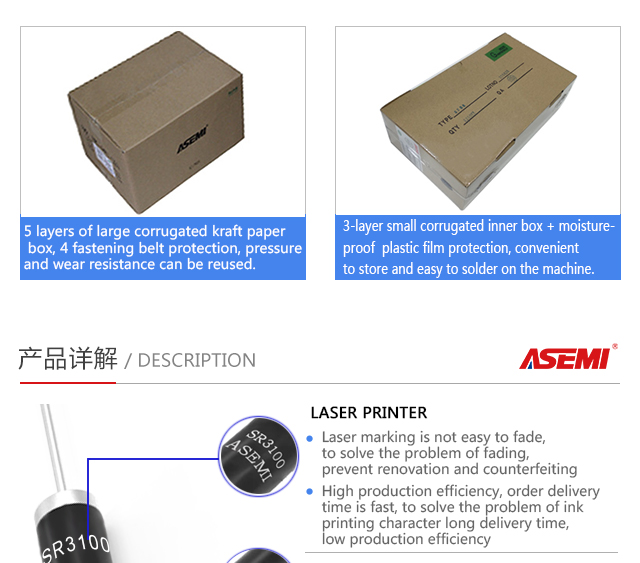

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Product details

    SR3100_01

    SR3100_02

    SR3100_03

    SR3100_04

    SR3100_05

    SR3100_06

    SR3100_07

    SR3100_08

    SR3100_09

    SR3100_10
