In order to reduce the series resistance of the package,reduce the forward voltage drop, and maximize the contact area between the lead and the chip.

Axial lead, transparent housing, small size, light weight and high reliability

Achieve optimal barrier metal thickness and form the best surface for the best electrical performance and high yield of the die

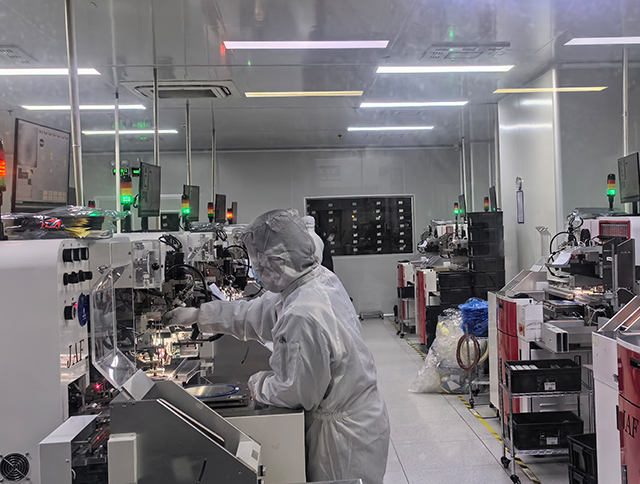

100% microscopic inspection of the chip before packaging, eliminating defective chips

The reverse leakage characteristics were checked under temperature and the sample was subjected to a destructive physical experiment.

Hard breakdown characteristic curve, minimum leakage current at room temperature, 0.2-0.3mA/p>

Under the 200mA breakdown current, the characteristic curve is stable, no leakage current becomes large, the curve becomes soft, and the failure modes such as creep channel, bubbling, punch-through, etc.

Beautifully printed and tightly packed

Thick cardboard for better protection

ASEMI logo, quality assurance

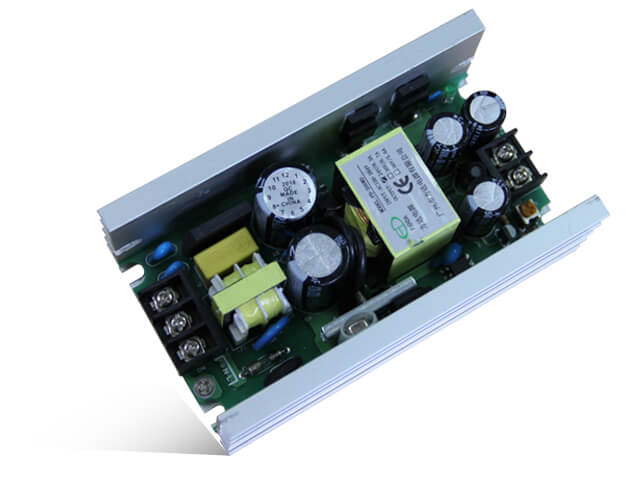

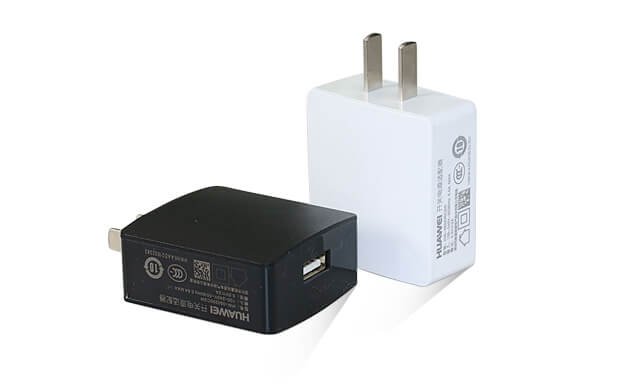

Schottky diodes are widely used in switching power supplies, inverters, drivers and other circuits for high frequency, low voltage, high currentrectifier diodes, freewheeling diodes, protection diodes, or rectifier diodes and small signal detection in circuits such as microwave communication. The diode is used. Welcome to consult the sampling test.Sampling test, selection consultation
