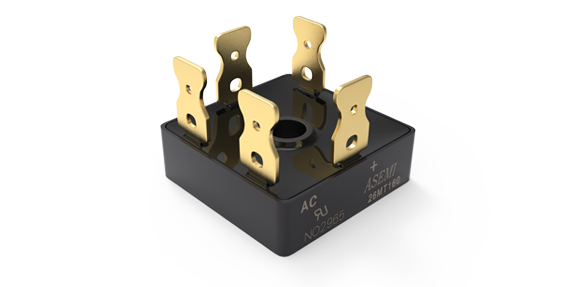

Type26MT160
BrandASEMI
PackageD-63
FeatureThree-phase rectifier
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 25A | 100V~1600V | GPP Silicon | 5 | 500uA | -55℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.05v | 360A | 180MIL | 5 | 500ns | 100pcs/box 500pcs/ctn |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO

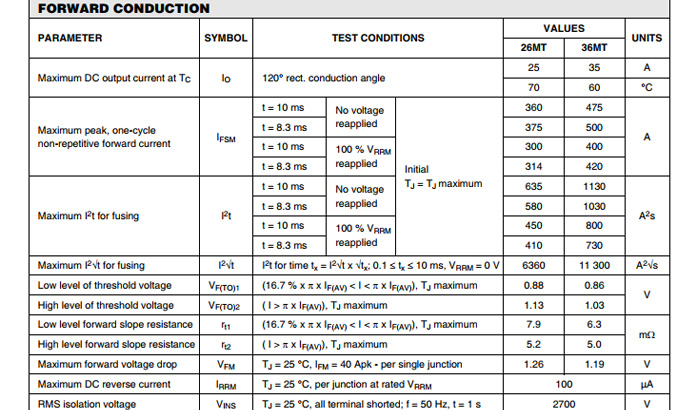

PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL
Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.

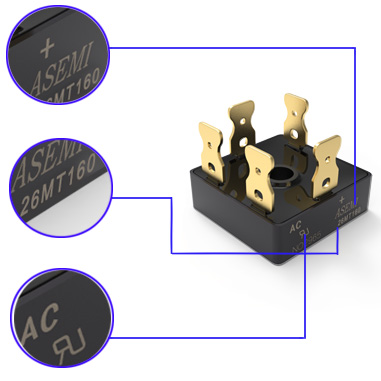

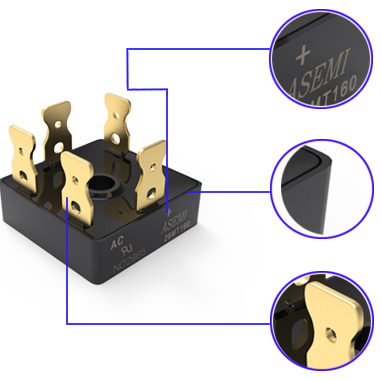

Laser marking, not easy to fade; epoxy resin molding, good insulation stability.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION

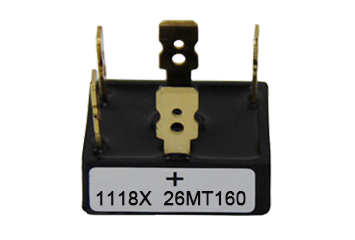

GREEN LASER PRINTER
●laser marking is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 1.13mm, can work for a long time without heating

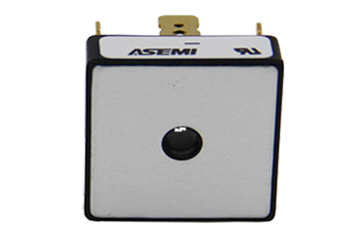

●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●the figure shows the common negative diode symbol
●generally, input at both ends and output in the middle
●two diodes integrated inside
PRODUCT ANALYSIS

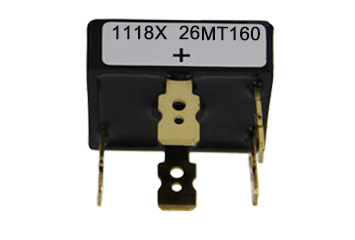

●[26MT160] represents the complete model of the product
●[ MT ] For the packaging of this product is DO-63
●[26] means its forward current is 25a
●[160] represents its reverse withstand voltage of 1600V
SIZE

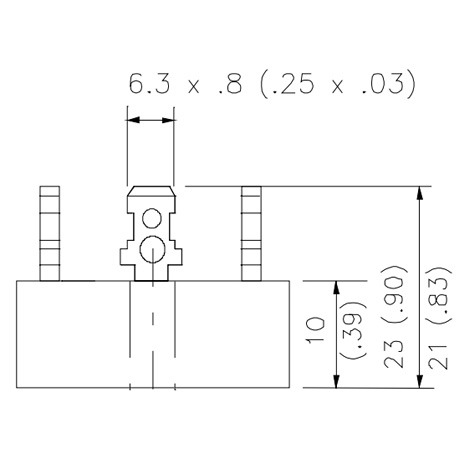

Body Width ：
25.3mmBody Height ：
21.83mmLead Length ：
11.53mmLead Space ：
16.63mm
Body Thickness：
10.39mmLead Thickness：
0.8mmPositing Hole Height：
10.25mmPROCESS
Product
stability
Product stability
Adopt GPP chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopts 180mil High quality chip, good parameter consistency, stable and efficient output
Some uses inferior 170mil Poor quality chip, long time working heat, easy to blow up
ASEMI uses laser marking is not easy to fade and prevent renovation
Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment
ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance
ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time
Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Power adapter of laptop
Automobile industry
lo
25AVRRM
100V~1600VIFSM
360Alr
500uATemperature
-55℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

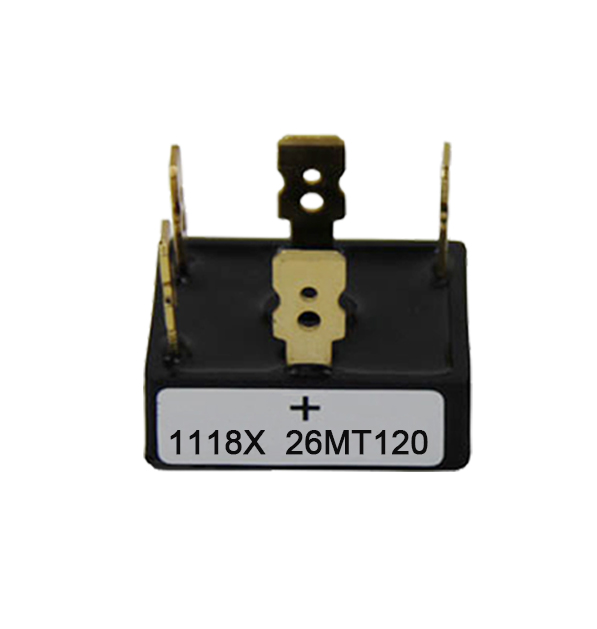

26MT160/26MT140/26MT120 ASEMI Three Phase Bridge
26MT160 electrical parameters: maximum forward average current 25A; maximum reverse peak voltage 1600V
26MT160 packaging method: 100pcs/box, 500pcs/carton
The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
