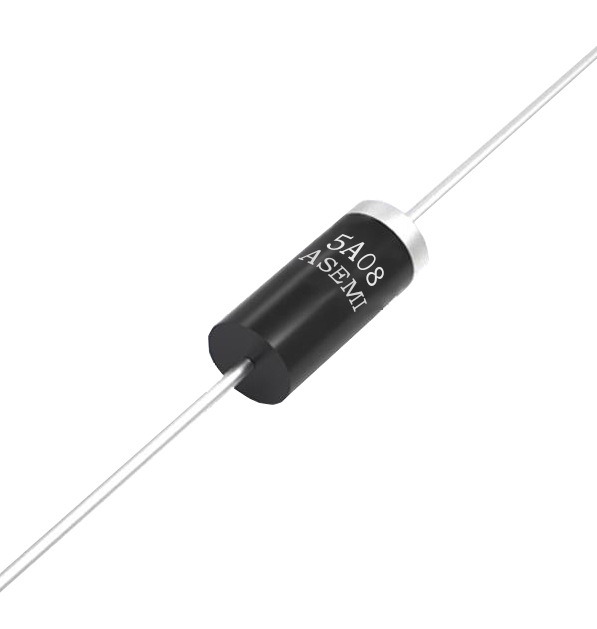

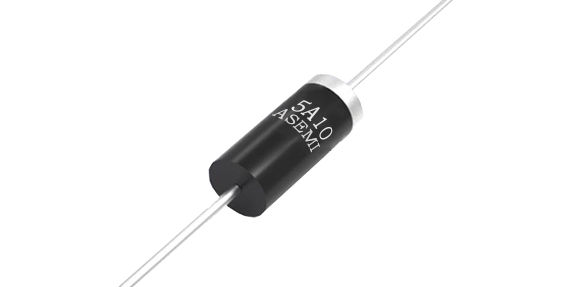

Type5A10
BrandASEMI
PackageDO-27
FeatureSmall current, Axial type

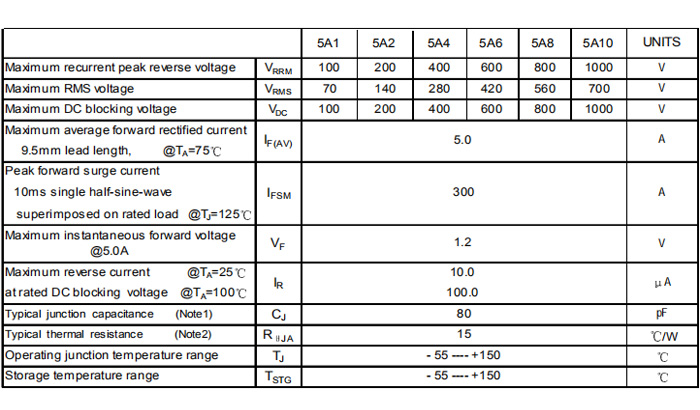

| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 5A | 50V~1000V | GPP Silicon | 1 | ≤10ua | -55℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.2V | 300A | 100MIL | 2 | >500ns | 1.2Kpcs/box 12Kpcs/ctn |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Silkscreen marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

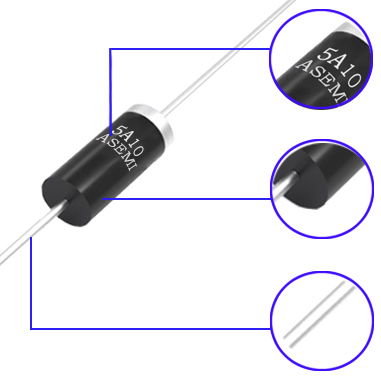

DETAIL
Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION

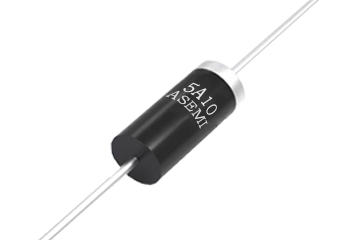

SILKSCREEN PRINTER
SILKSCREEN PRINTER
●silkscreen marking is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

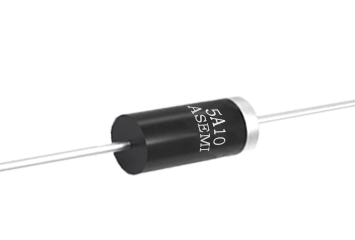

PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance

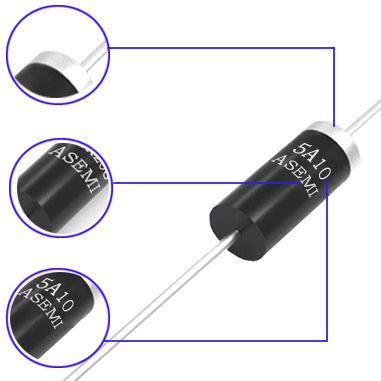

OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 1.3mm, can work for a long time without heating

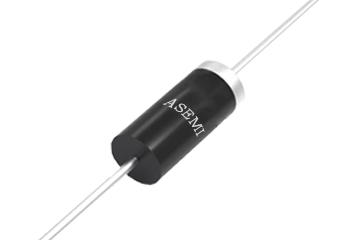

●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●the figure shows the symbol of common cathod diode
●both ends are input current and the middle is output current in general
●there are two diodes integrated inside
PRODUCT ANALYSIS
●[5A10] represents the complete model of the product
●[A] stands for rectifier diode
●[5] means its forward current is 5a
●[10] represents its reverse withstand voltage is 1000V
●[ ]The default packaging mode of this product is do-27

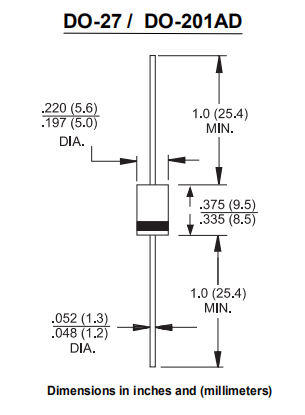

SIZE
Length ：
60.3mmBody Length ：
9.5mmLead Length ：
25.4mmBody Diameter：
5.6mm
Body Widtht：
5.6Body Length：
9.5mmLead Diameter：
1.30mmPROCESS
Product
stability
Product stability
Adopt high-quality process chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopts 100mil high-quality large chip, with good parameter consistency and stable and efficient output
Use inferior 95mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine
ASEMI uses silkscreen marking is not easy to fade and prevents refurbishment
Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation
ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins
Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Power adapter of laptop
Automobile industry
lo
5AVRRM
50V~1000VIFSM
300Alr
≤10uaTemperature
-55℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US
[5A10-DO-27] 5A10/5A8/5A6/5A4/5A2 ASEMI Rectifier diode
5A10 electrical parameters: maximum forward average current 5A; maximum reverse peak voltage 100V
5A10 packaging method: 1.2Kpcs/box, 12Kpcs/carton
The diodes is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
