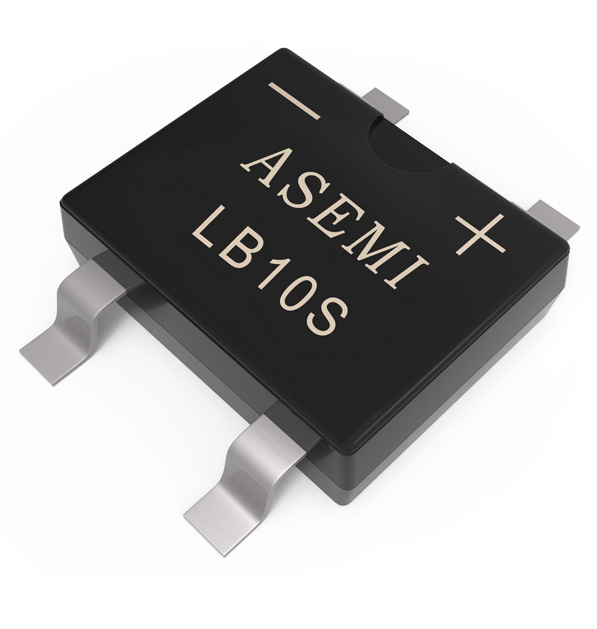

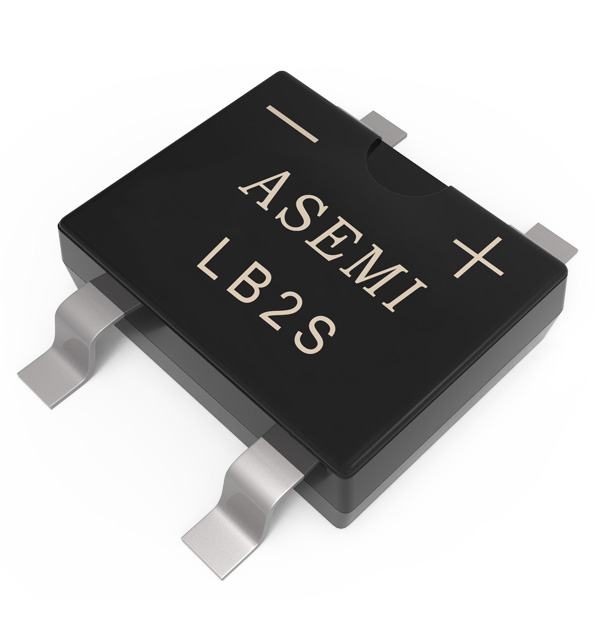

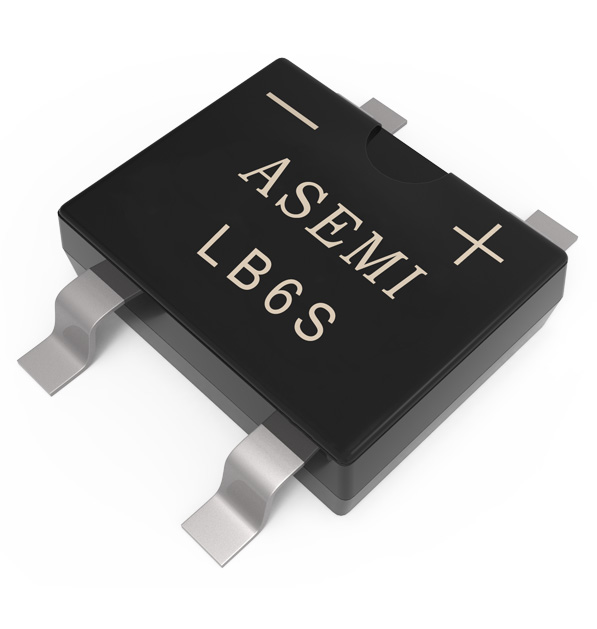

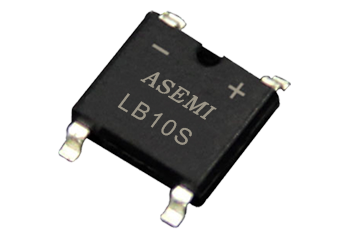

LB10S,LB8S,LB6S,LB4S,LB2S ASEMI SMD bridge rectifier
  • TypeLB10S

    BrandASEMI

    PackageLBS-4

    FeatureSMD bridge rectifier

  • lo VRRM Chip Material Chip Number lr Temperature
    1A 50V~1000V GPP Silicon 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.95V 30A 50MIL 4 >500ns 5Kpcs/reel, 10Kpcs/box

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand LB6S,LBS-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand LB10S,LBS-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    LB10S 产品规格书

    DETAIL

    LB10S 缩1

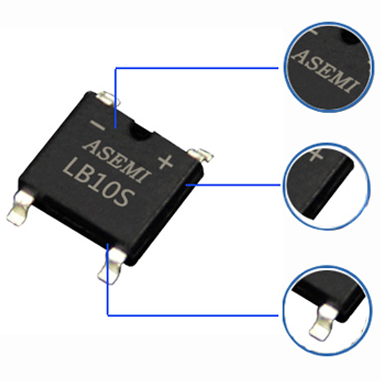

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.


    LB10S 脚1

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    MB6S3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    LB10S 缩3

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    LB10S 缩5

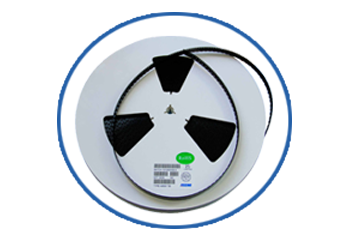

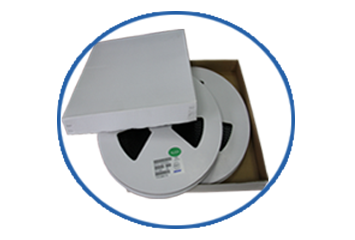

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    LB10S 缩4

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    LB10S 详1
    LB10S 详2
    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [LB10S] represents the complete model of the product

    [LBS] stands for the encapsulation way of this package

    [   ] means its forward current is 1.0a

    [10] represents its reverse withstand voltage is 1000V


    SIZE

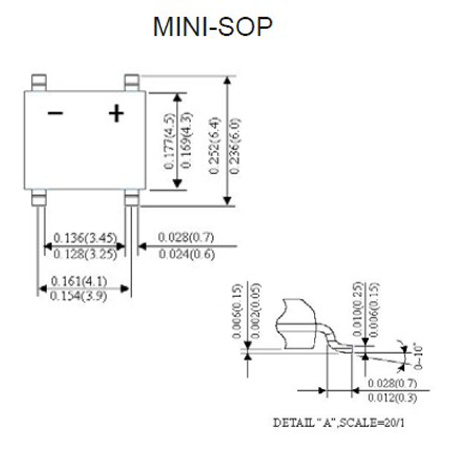

    LB10S 产品尺寸图1
  • Lead Spacing :

    4.1mm
  • Body Length :

    6.4mm
  • Body Height :

    1.42mm
  • Body Width:

    5.1mm

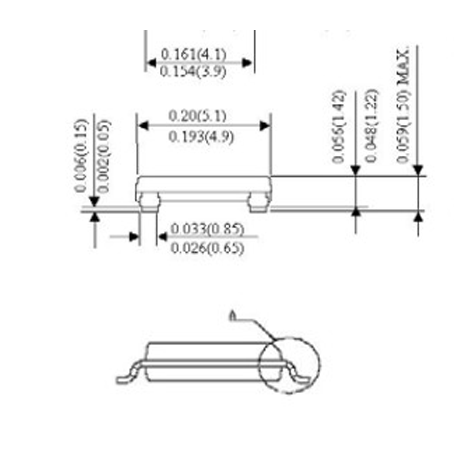

  • LB10S 产品尺寸图2
