TypeGBL410
BrandASEMI
PackageGBL-4
FeatureThin flat bridge
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 4A | 50V~1000V | GPP silicon chip | 4 | >10ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 200A | 84MIL | 4 | >500ns | 500 pcs/box 5000PCS/CTN |
●Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO

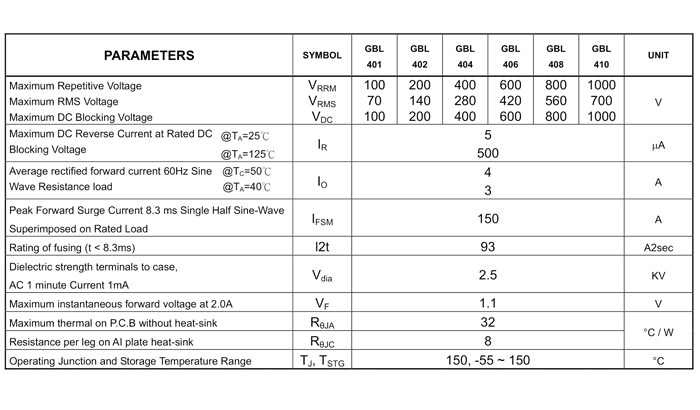

PRODUCT PARAMETERS
Video content details：

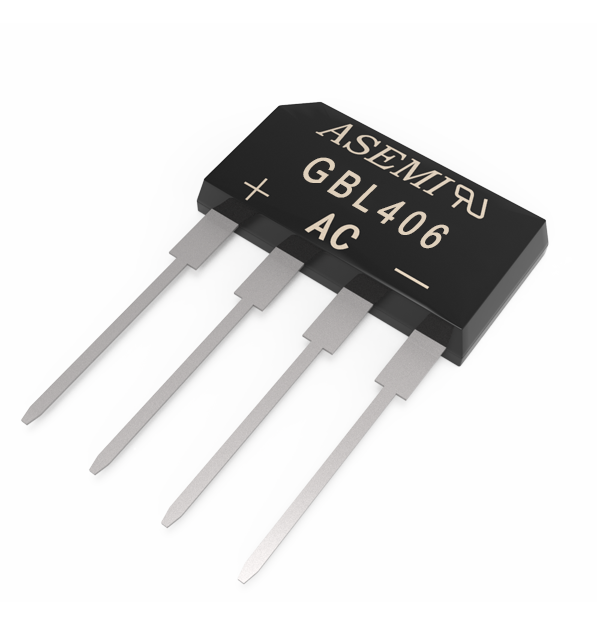

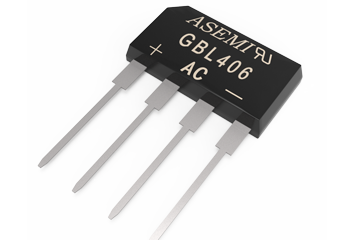

ASEMI brand GBL406,GBL series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：

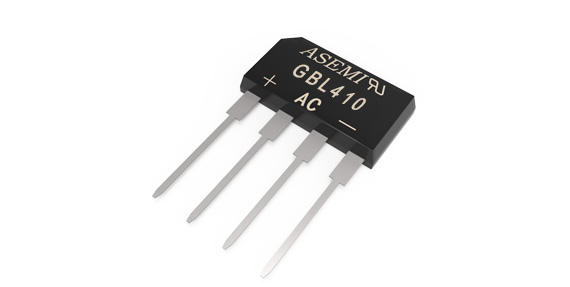

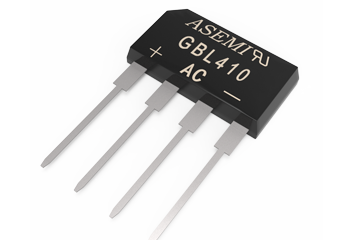

ASEMI brand GBL410,GBL series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL
Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.
Laser marking, not easy to fade; epoxy resin molding, good insulation stability.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION
GREEN LASER PRINTER
●laser marking, non-fading is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.81mm, can work for a long time without heating

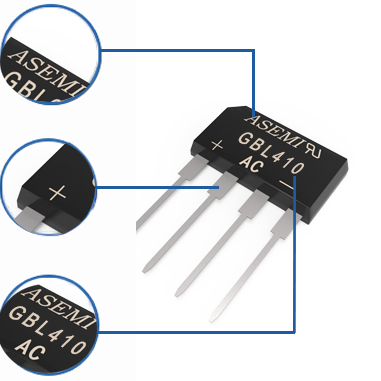

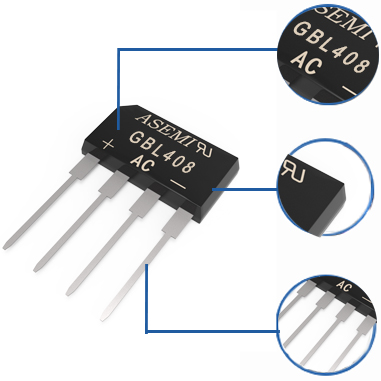

●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●Safety certification LOGO
●Positive and negative sign
●Ac foot identification
PRODUCT ANALYSIS
●[GBL410] represents the complete model of the product
●[GBL] For the package of this product
●[4] means its forward current is 4a
●[10] represents its reverse withstand voltage of 1000V
SIZE
Body Width ：
20.0mmBody Height ：
11.0mmLead Length ：
14.0mmLead Space ：
5.0mm
Body Thickness：
3.60mmLead Thickness：
0.60mmLead width
1.70mmPROCESS
Product
stability
Product stability
Adopt GPP chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopt 84mil High quality chip, good parameter consistency, stable and efficient output
Some uses inferior 76mil poor quality chip, long time working easy to heat and blow up
ASEMI uses laser marking is not easy to fade and prevents refurbishment
Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment
ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance
ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time
Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

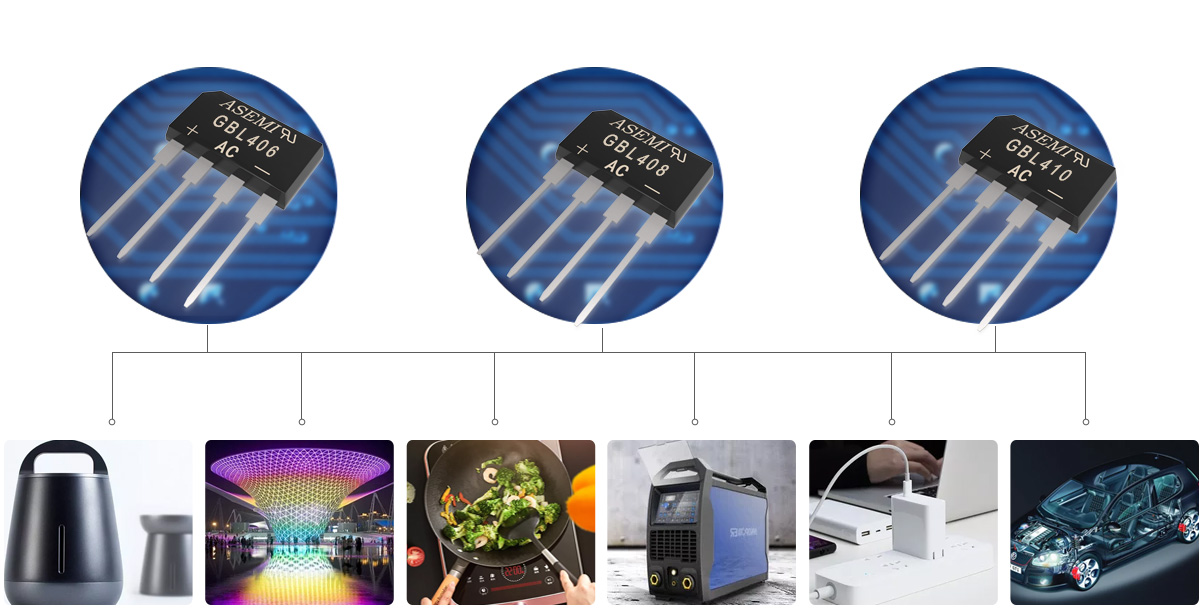

APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Power adapter of laptop
Automobile industry
lo
4AVRRM
50V~1000VIFSM
200Alr
>10uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US
GBL410/GBL408/GBL406/GBL404/GBL402, ASEMI bridge rectifier
GBL410 electrical parameters: maximum forward average current 4A; maximum reverse peak voltage 1000V
GBL410 packaging method: 500pcs/box,5Kpcs/ctn
The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
