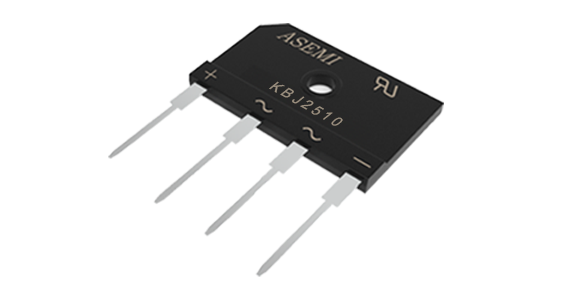

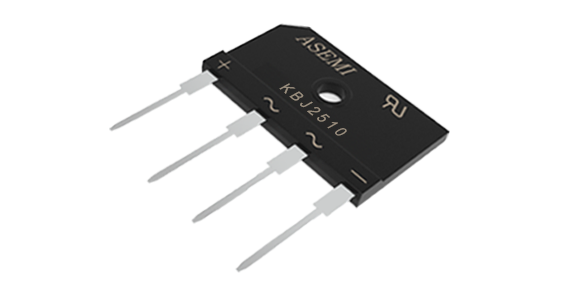

TypeKBJ2510
BrandASEMI
PackageKBJ-4
Featurethin flat bridge
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 15A | 50V~1000V | GPP Silicon | 4 | ≤5ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.05V | 400A | 140MIL | 4 | >500ns | 250pcs/box；2000pcs/ctn |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand KBJ-4 series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand KBJ-4 series，it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL

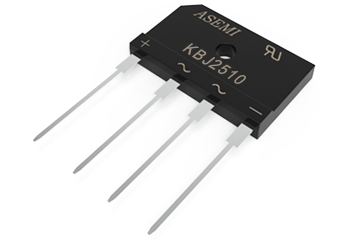

Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.

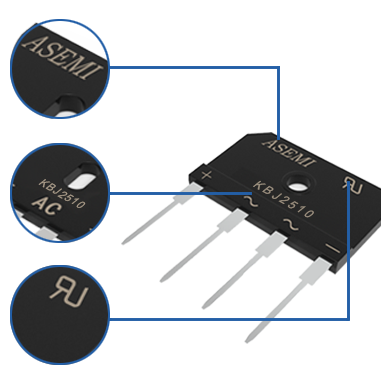

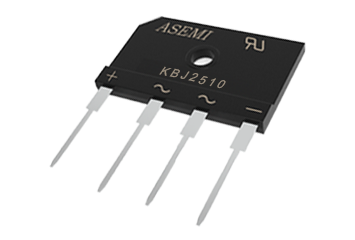

Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

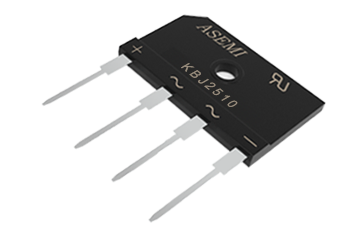

The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
DESCRIPTION
GREEN LASER PRINTER
●laser marking not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.71mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●【UL US safety certification LOGO 】
●【Safety experiment and appraisal authority】
●【 Safety inspection product yield prompt 】
PRODUCT ANALYSIS
●[KBJ2510] represents the complete model of the product
●[KBJ] stands for KBJ package rectifier bridge
●[25] means its forward current is 25.0a
●[10] represents its reverse withstand voltage is 1000V
SIZE
Body Width ：
30mmBody Height ：
37.5mmLead Length ：
17.5mmLead Space ：
10mm
Body Thickness：
4.6mmLead Thickness：
0.71mmSpace Between Leading and Bottom：
30mmPROCESS
Product
stability
Product stability
Adopt GPP chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopt 140mil High quality chip, good parameter consistency, stable and efficient output
Some uses inferior 130mil poor quality chip, long time working easy to heat and blow up
ASEMI uses laser marking is not easy to fade and prevent renovation
Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment
ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance
ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time
Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

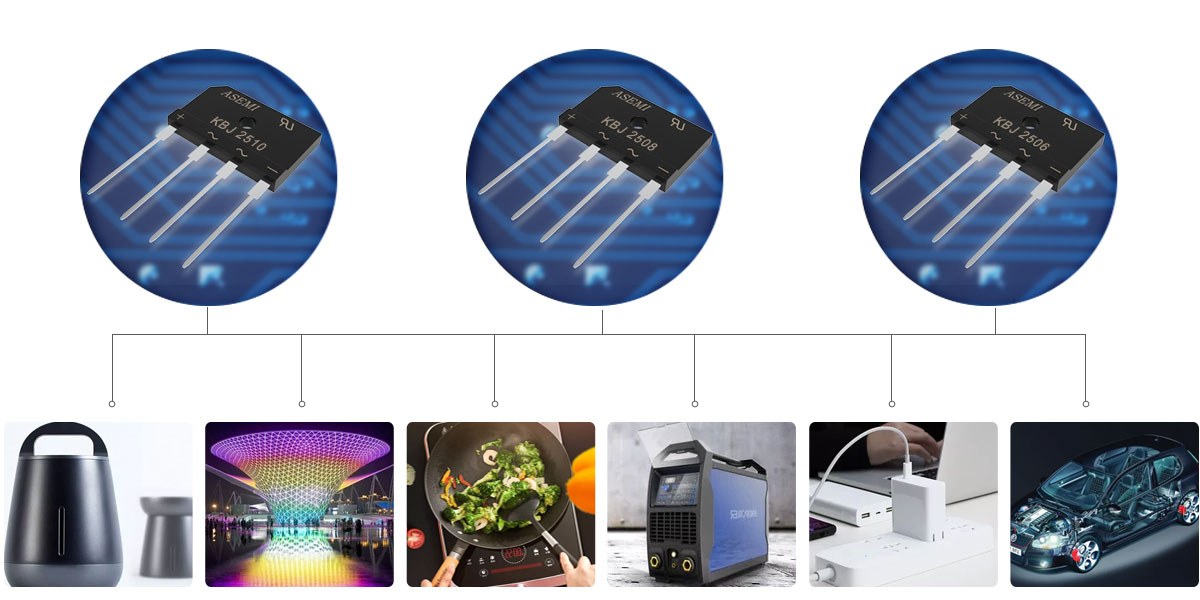

APPLICATION
lo
15AVRRM
50V~1000VIFSM
400Alr
≤5uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

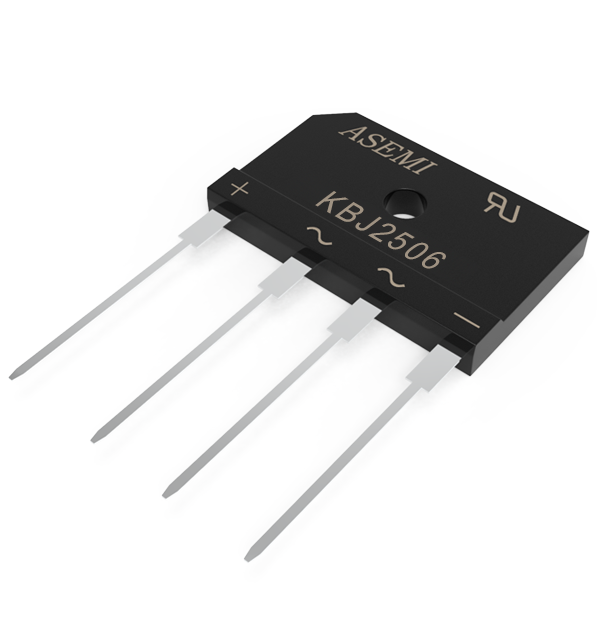

KBJ2510,KBJ2508,KBJ2506,KBJ2504,KBJ2502 ASEMI Bridge Rectifier

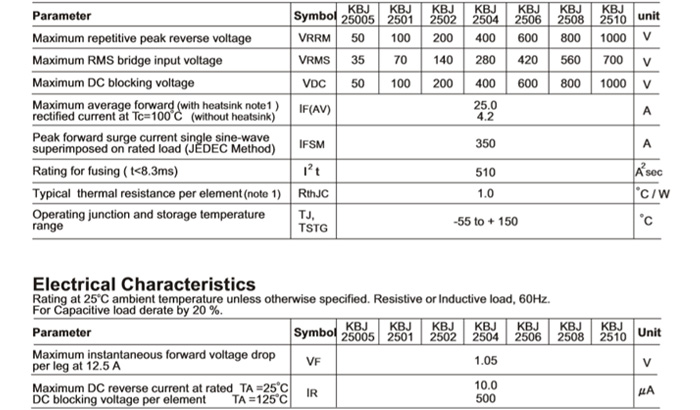

KBJ2510 electrical parameters: maximum forward average current 25A; maximum reverse peak voltage 1000V
KBJ2510 packaging method: 250pcs/box；2000pcs/ctn
The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
