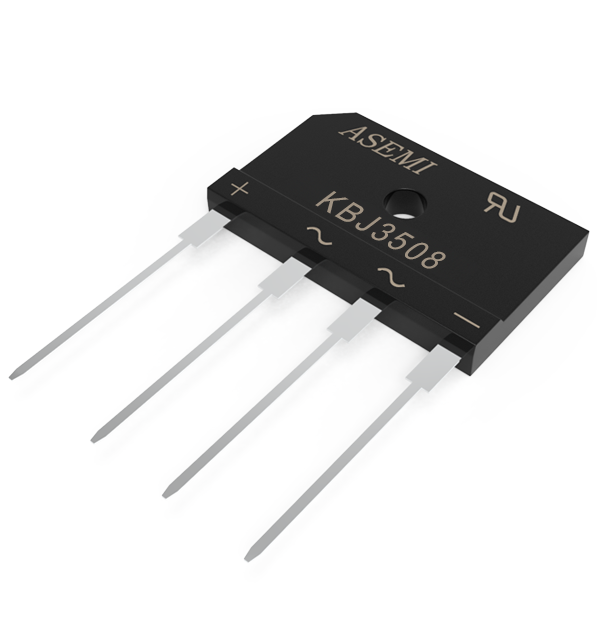

KBJ3510,KBJ3508,KBJ3506,KBJ3504,KBJ3502 ASEMI Bridge Rectifier
  • TypeKBJ3510

    BrandASEMI

    PackageKBJ-4

    Featurethin flat bridge

  • lo VRRM Chip Material Chip Number lr Temperature
    35A 50V~1000V GPP Silicon 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V 400A 165MIL 4 >500ns 250pcs/box;2000pcs/ctn

    Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand KBJ-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand KBJ-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

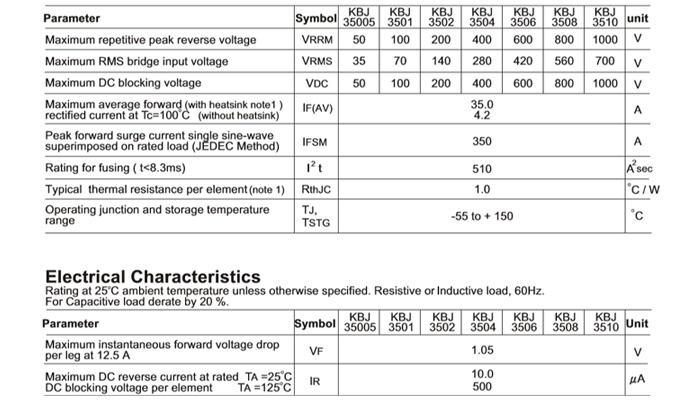

    KBJ3510规格书

    DETAIL

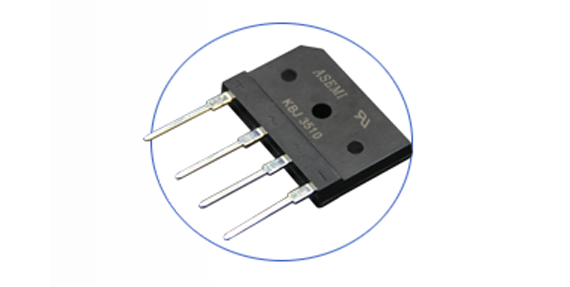

    KBJ3510小图1

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.

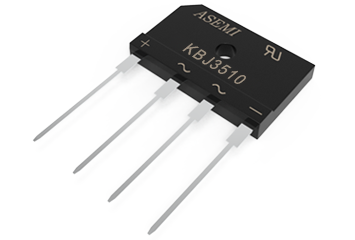

    KBJ3510小图2

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

    GBJ6小图3

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    GBJ小图5

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    GBJ1010小图4

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    GBJ小图6

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    DESCRIPTION

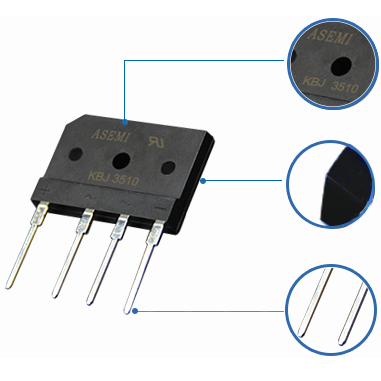

    KBJ3510详情
    KBJ3510详情2
    GREEN LASER PRINTER

    laser marking is not easy to fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.71mm, can work for a long time without heating

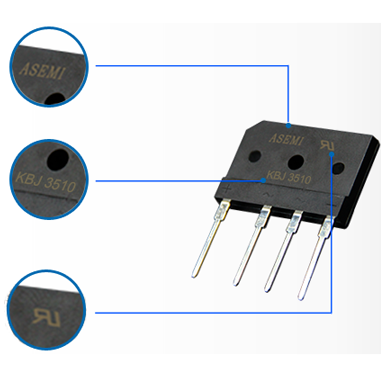

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [KBJ3510] represents the complete model of the product

    [KBJ] stands for KBJ package rectifier bridge

    [35] means its forward current is 35.0a

    [10] represents its reverse withstand voltage is 1000V

    SIZE

    GBJ产品尺寸
  • Body Width :

    30mm
  • Body Height :

    37.5mm
  • Lead Length :

    17.5mm
  • Lead Space :

    10mm
  • GBJ产品尺寸2
  • Body Thickness:

    4.6mm
  • Lead Thickness:

    0.71mm
  • Space Between Leading and Bottom:

    30mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt  GPP  chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation, interpersonal interaction process

    PRODUCT PK

    大芯片-通用-2 小芯片-通用-2

    ASEMI adopt 165mil High quality chip, good parameter consistency, stable and efficient output

    Some uses inferior 140mil poor quality chip, long time working easy to heat and blow up

    无油墨-修改-3 易掉字-3

    ASEMI uses laser marking is not easy to fade and prevent renovation

    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

    GBJ无氧铜-4 易氧化-4通用

    ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding

    Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance

    MB6S PK7 MB6S PK8

    ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time

    Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

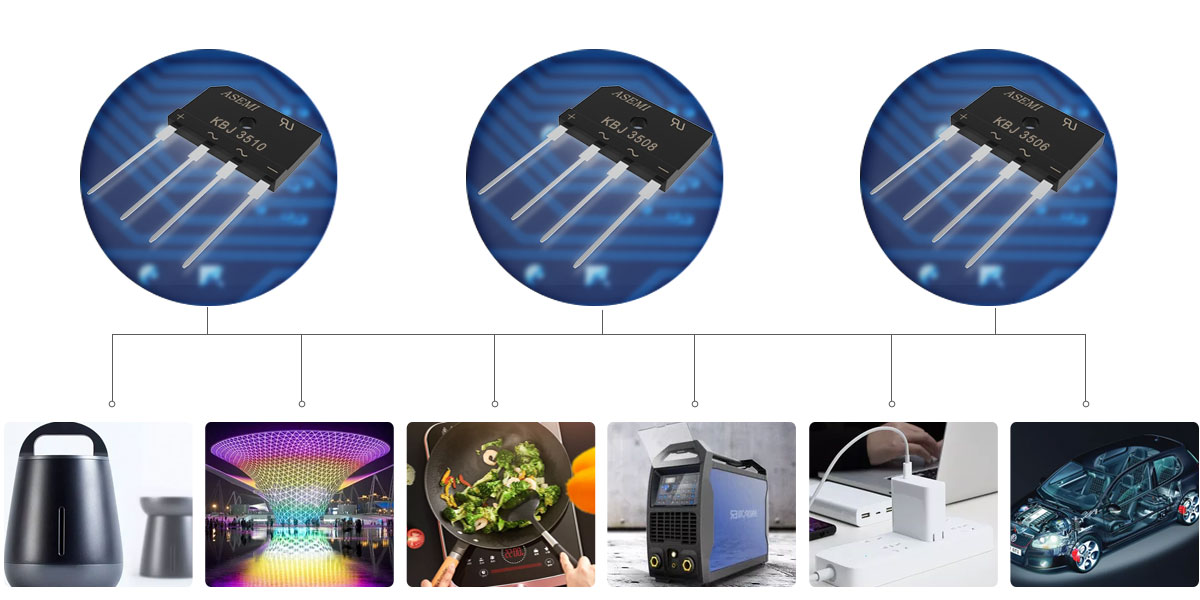

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

    KBJ3510应用领域
  • lo

    35A
  • VRRM

    50V~1000V
  • IFSM

    400A
  • lr

    ≤5ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    KBJ3510,KBJ3508,KBJ3506,KBJ3504,KBJ3502 ASEMI Bridge Rectifier

    KBJ3510 electrical parameters: maximum forward average current 35A; maximum reverse peak voltage 1000V

    KBJ3510 packaging method: 250pcs/box;2000pcs/ctn

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
