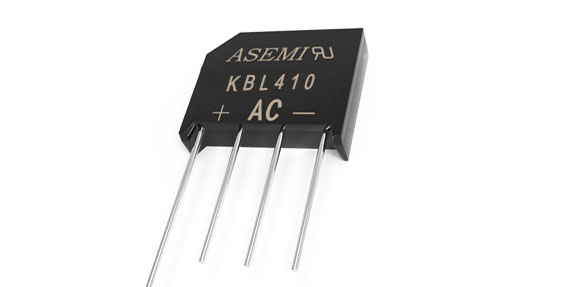

TypeKBL410
BrandASEMI
PackagKBL-4
FeatureThin flat bridge
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 4A | 50V~1000V | GPP silicon chip | 4 | ≤5ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 100A | 72MIL | 4 | >500ns | 500 / box of 3k/CTN |
●rectifier bridge KBL410 electrical parameters 4A 50~1000VV
●Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
●The pin is anoxic copper with good resistance to bending, oxidation and conduction
●KBL410:3K/CTN Box material: kraft paper, resistant to pressure, abrasion and impact
●500PCS/box,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
DETAIL

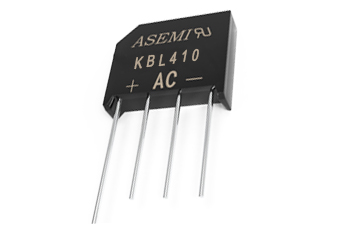

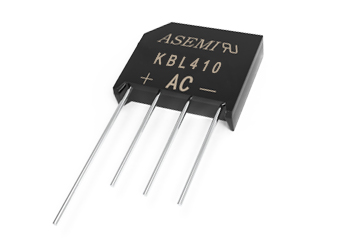

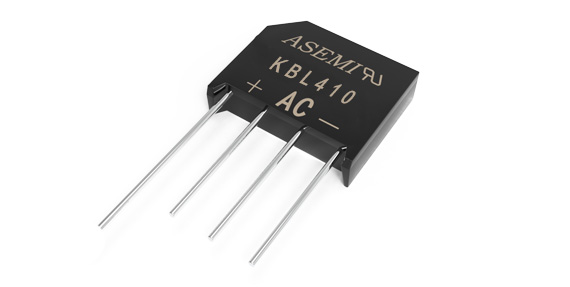

bridge rectifier KBL410
electrical parameters 4A;50V~1000V
Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
The pin is anoxic copper with good resistance to bending, oxidation and conduction
500pcs/box,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
KBL410:3K/CTN material: kraft paper, resistant to pressure, abrasion and impact
Appearance of the packaging：500pcs/box ; Carton: environmental protection, sealed carton
DESVRIPTION

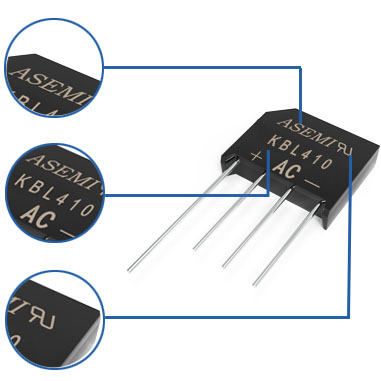

GREEN LASER PRINTER
●laser marking, non-fading, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
ADVANCED PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance

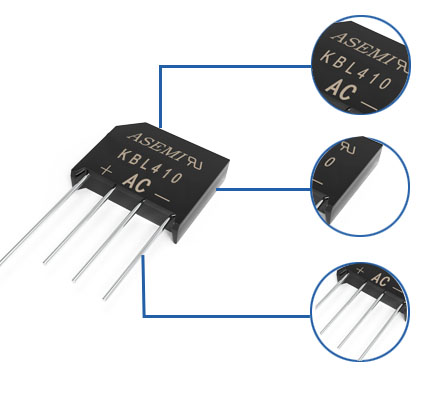

PURE OXYGEN-FREE COPPER PINS
●oxygen free copper, excellent electrical conductivity
●pin thickening design, thickness up to 0.81mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand in Taiwan
●A = advanced
●SEMI = semiconductor
●the figure shows the common negative diode symbol
●generally, input at both ends and output in the middle
●two diodes integrated inside
PRODUCT ANALYSIS
●[KBL410] represents the complete model of the product
●[KBL] For the packaging of this product
●[4] means its forward current is 4a
●[10] represents its reverse withstand voltage of 1000V
SIZE
Body Width ：
15.7mmBody Height ：
24.7mmLead Length ：
19mmLead Space ：
5.1mm
Body Thickness：
6.25mmLead Thickness：
1.13mmSpace Between Leading and Bottom：
0mmPROCESS
Product
stability
Product stability
Adopt Taiwan GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Perfect interpersonal interaction
Perfect interpersonal interaction
Reinforcement, cutting, separation, perfect interpersonal interaction process
PRODUCT PK
ASEMI adopt 72mil High quality chip, good parameter consistency, stable and efficient output

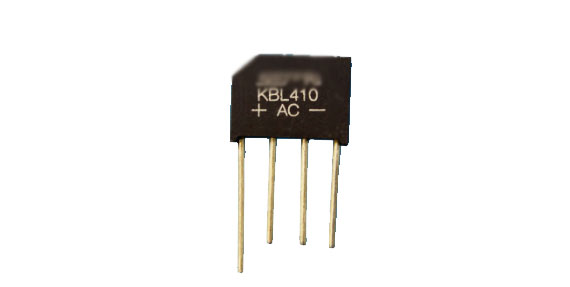

Some brands use inferior 65mil Poor quality chip, long time working heat, easy to blow up
ASEMI USES laser marking, environmental protection, fadeless, prevent renovation

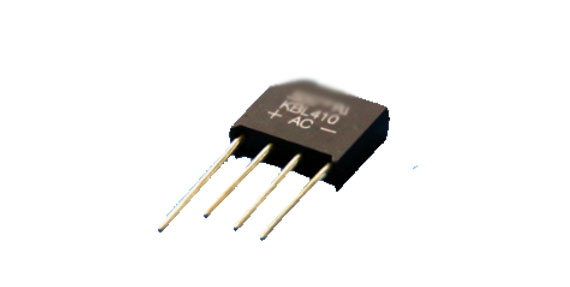

Some brands of ordinary copper frame pin material, easy oxidation, machine, virtual welding, low strength and easy damage
High quality chip, good parameter consistency, stable and efficient output
Poor quality chip, long time working heat, easy to blow up
ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time
Some brands of common test equipment, detection function is single, and the accuracy is not high, resulting in parameter consistency control is not accurate
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Notebook power
Automobile industry
lo
4AVRRM
50V~1000VIFSM
100Alr
≤5uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US
KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier
Parameter specification: current:4A voltage:1000V package:500pcs/box
Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.
This product original packing genuine product, the quality guarantee high stability and the reliability.
