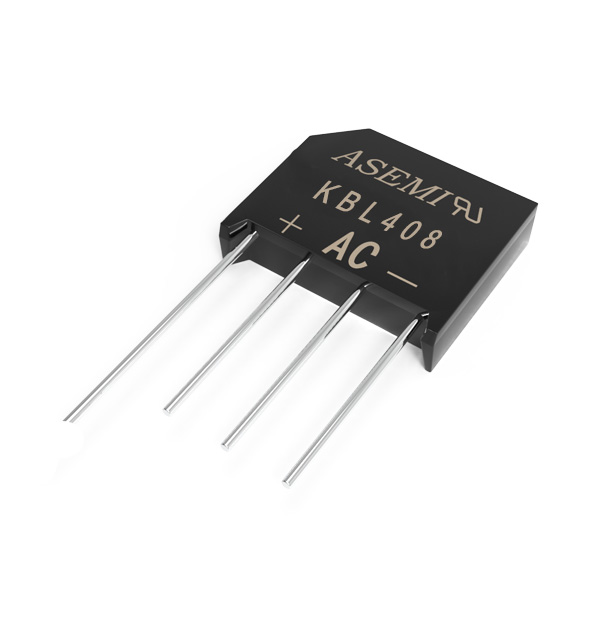

KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier
KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier
KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier
KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier
KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier

  • TypeKBL410

    BrandASEMI

    PackageKBL-4

    FeatureDIP bridge rectifier

    • lo VRRM Chip Material Chip Number lr Temperature
    4A 50V~1000V GPP silicon chip 4 >10ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V 200A 72MIL 4 >500ns 500pcs / box 3000pcs/CTN

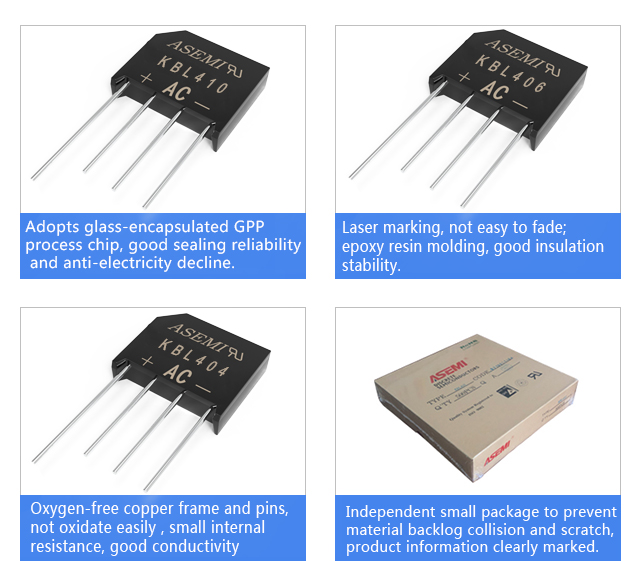

    ●Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation

    ●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    ●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

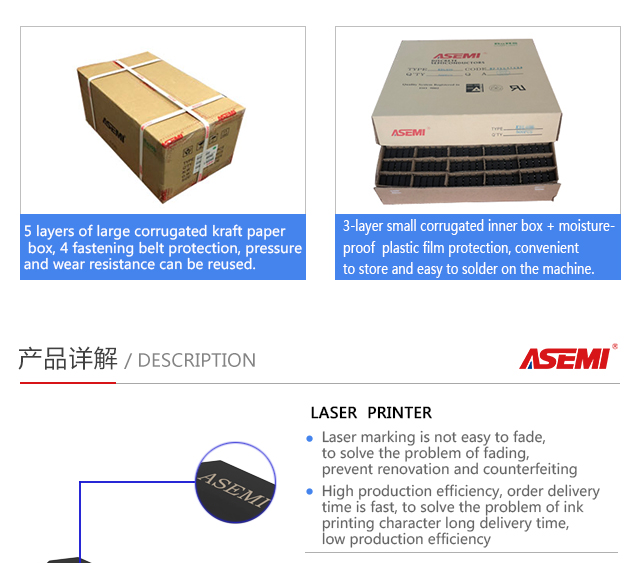

    ●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    ●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    Preview Order Now

    Recommended products

    VIDEO

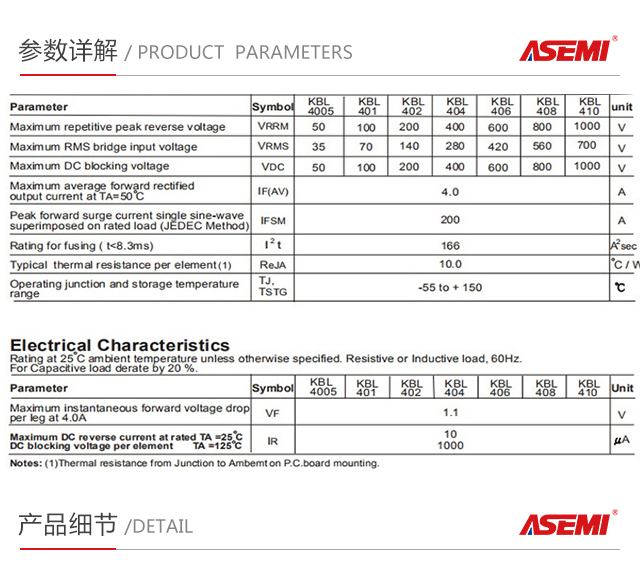

    PRODUCT PARAMETERS

    KBL410_01KBL410_02KBL410_03KBL410_04KBL410_05KBL410_06KBL410_07KBL410_08KBL410_09KBL410_10

  • lo

    4A

  • VRRM

    50V~1000V

  • IFSM

    200A

  • lr

    >10ua

  • Temperature

    -50℃~150℃

    • COMPANY QUALIFICATION

    Patent certificate / honorary qualification
    Schottky Porcelain Rectifier with High Reverse Voltage
    Rectifier Bridge with Zero Plane and High-power
    Rectifier Bridge with Ultra-thin Package
    Rectifier Bridge with High-power
    Rectifier Bridge with Efficient Heat Dissipation Feature
    Vehicle Rectifier Bridge with High-power
    Ceramics Rectifier Bridge with High-power
    Cone Rectifier with High-power
    Pioneer Growing Enterprise of Blue Dot Adward
    Trophy of Blue Dot Adward
    Quality Supplier of HUAWEI TECHNOLOGIES CO., LTD.
    High-tech Enterprise Certificate of Shenzhen
    Certificate of High-tech Enterprise
    Certificate of Credit Enterprise for China Electronic Supplier
    Data Collection Point of HCS Index

    PARTNER

    BOE
    TBEN
    Yuxin
    Rainbow
    Hisense
    Rayspower
    Haier
    DunAn
    Cosic
    Inovance
    Panda
    Xinghuoyuan
    BYD

    CONTACT US

    KBL410/KBL408/KBL404/KBL402, ASEMI bridge rectifier

    KBL410 electrical parameters: maximum forward average current A; maximum reverse peak voltage 1000V

    KBL410 packaging method: 500pcs/box,3Kpcs/ctn

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
