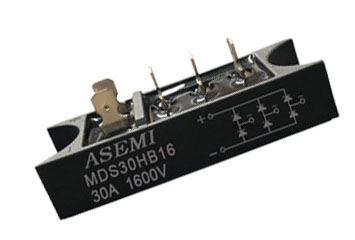

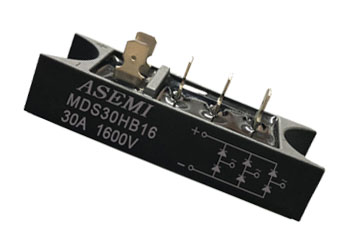

TypeMDS30HB16
BrandASEMI
PackageMDS-HB
FeatureThree phase rectifier bridge
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 30A | 600V~1600V | GPP Silicon | 4 | ≤10ua | -40℃~170℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 2300A | 5 | >500ns | 10pcs/box 100pcs/ctn |
● Three-phase rectifier module MDS30HB16 electrical parameter 30A 600V~1600V
●Laser marking, not easy to fade, vinyl material; Epoxy resin material, good encapsulation stability
●The pin is anoxic copper with good resistance to bending, oxidation and conduction
●MDS30HB16 :100pcs/ctn Material: kraft paper, resistant to pressure, abrasion and impact
●10pcs/box, 100pcs/ctn , anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MDS30HB16,MDS-HB series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand MDS30HB16,MDS-HB series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL

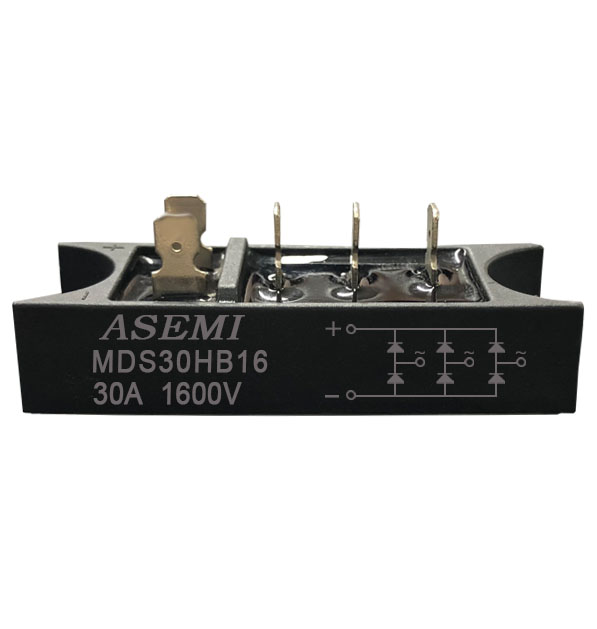

Three-phase rectifier module MDS30HB16
electrical parameters 30A 1600V
Laser marking, not easy to fade, vinyl material: epoxy resin material, good encapsulation stability
The pin is oxygen-free copper with good resistance to bending, oxidation and conduction
10pcs/box, anti-static PE pipe,anti-static kraft paper box, easy to preserve, recyclable.
MDS30HB16 100pcs/ctn, material: kraft paper, resistant to pressure, abrasion and impact
Packaging：10pcs/box
DESCRIPTION

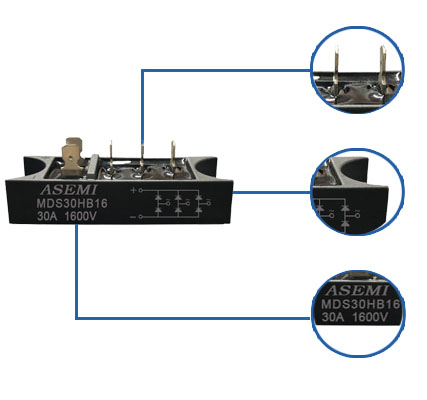

GREEN LASER PRINTER
●laser marking, not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance

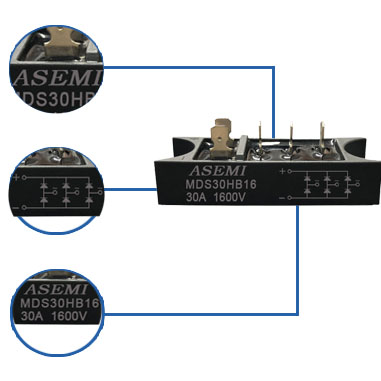

OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 1.5mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●HB is the external volume of this product
●High strength anti - oxidation screws repeatedly twist and do not slip wire
●Non - slip safety gasket, good confinement, buffer hard force
PRODUCT ANALYSIS
●[MDS30HB16] represents the complete model of the product
●[MDS-HB] stands for three-phase rectifier module
●[30] means its forward current is 30a
●[-16] represents its reverse withstand voltage of 1600V

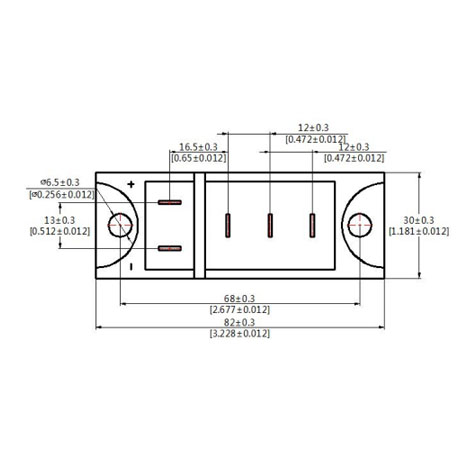

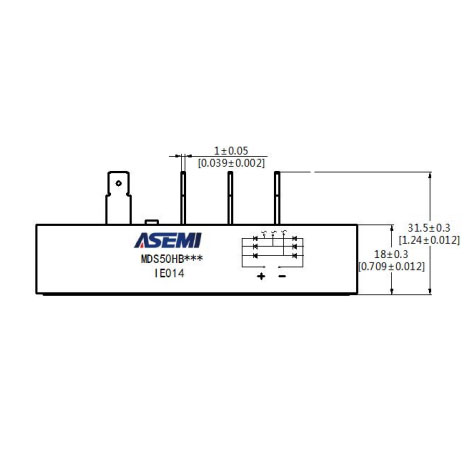

SIZE
Body Width ：
30.3mmBody Length ：
82.3mmHole Height ：
3.2mmPin Length：
13mm
Body Thickness：
30.3mmLead Spacing：
12.2mmLead Thickness ：
1.5mmPROCESS
Product
stability
Product stability
Adopt GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process

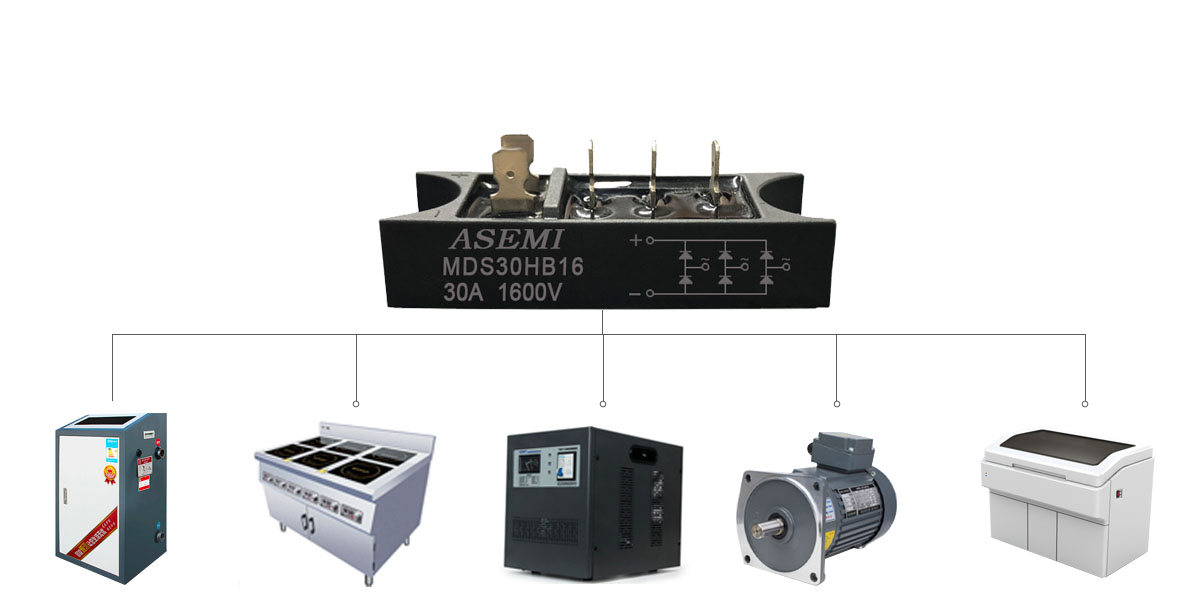

APPLICATION
lo
30AVRRM
600V~1600VIFSM
2300Alr
≤10uaTemperature
-40℃~170℃COMPANY QUALIFICATION
PARTNER
CONTACT US
MDS30HB16/MDS30HB14/ ASEMI Three-phase rectifier module
MDS30HB16 Parameter specification: current 30A voltage: 600V~1600V MOP:10pcs/box
Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.
This's ASEMI original product, the quality is stable and reliable.
