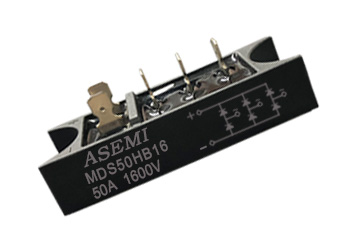

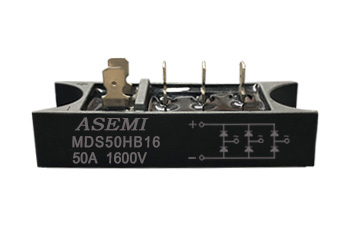

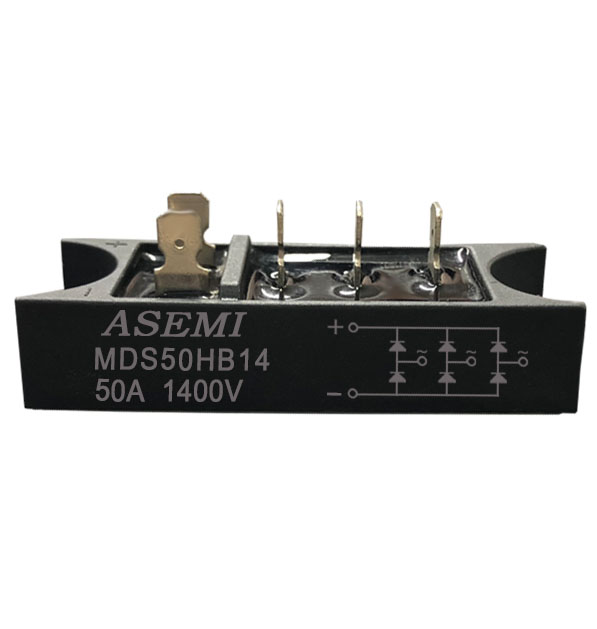

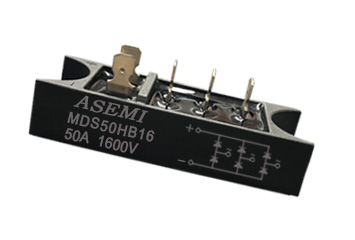

MDS50HB16/MDS50HB14/ ASEMI Three-phase rectifier module
  • TypeMDS50HB16

    BrandASEMI

    PackageMDS-HB

    FeatureHigh power

  • lo VRRM Chip Material Chip Number lr Temperature
    50A 600V~1600V GPP Silicon 4 >5uA -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.1V 2800A 5 >500ns 10pcs/box 100pcs/ctn

    Rectifier bridge MDS50HB16 electrical parameters 50A 600V~1600V

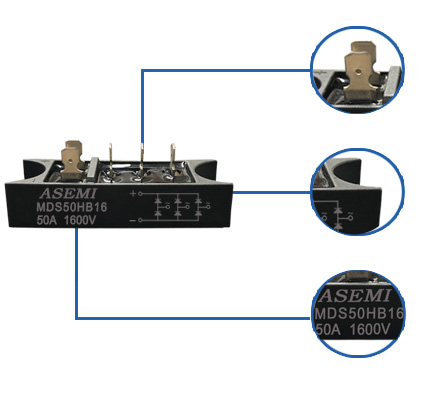

    Laser marking, not easy to fade, vinyl material:epoxy resin material, good encapsulation stability

    The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction

    MDS50HB16 :100pcs/ctn, material: kraft paper, resistant to pressure, abrasion and impact

    10pcs/box ,100pcs/ctn, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand MDS50HB16, MDS-HB series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand MDS50HB16, MDS-HB series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    DETAIL

    Three-phase rectifier module MDS50HB16

    electrical parameters 50A 1600V

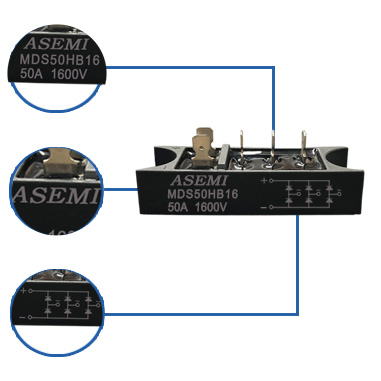

    Laser marking, not fade easily, vinyl material:epoxy resin material, good encapsulation stability

    The pin is oxygen-free copper with good resistance to bending, oxidation and conduction

    模块包装图1

    10pcs/box, anti-static PE pipe,anti-static kraft paper box, easy to preserve, recyclable.

    模块包装图2

    MDS50HB16  100pcs/ctn, Material: kraft paper, resistant to pressure, abrasion and impact

    模块包装图1

    Packaging:10pcs/box

    DESCRIPTION

    GREEN LASER PRINTER

    ●laser marking, not easy to fade, to solve the ink screen printing easy fade

    ●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    ●disposable injection molding with epoxy resin material

    ●good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    ●oxygen free copper, good electrical conductivity

    ●pin thickening design, thickness up to 1.5mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    HB is the external volume of this product

    High strength anti - oxidation screws repeatedly twist and do not slip wire

    Non - slip safety gasket, good confinement, buffer hard force

    PRODUCT ANALYSIS

    [MDS50HB16] represents the complete model of the product

    [MDS-HB] stands for three-phase rectifier module

    [50] means its forward current is 50a

    [-16] represents its reverse withstand voltage of 1600V

    SIZE

  • Body Length :

    82.3mm
  • Height :

    18.3mm
  • Lead Length :

    13mm
  • Positon Height:

    3.2mm
  • Body Thickness:

    30.3mm
  • Lead Spacing:

    12.2mm
  • Lead Thickness:

    1.5mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt  GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation,  interpersonal interaction process

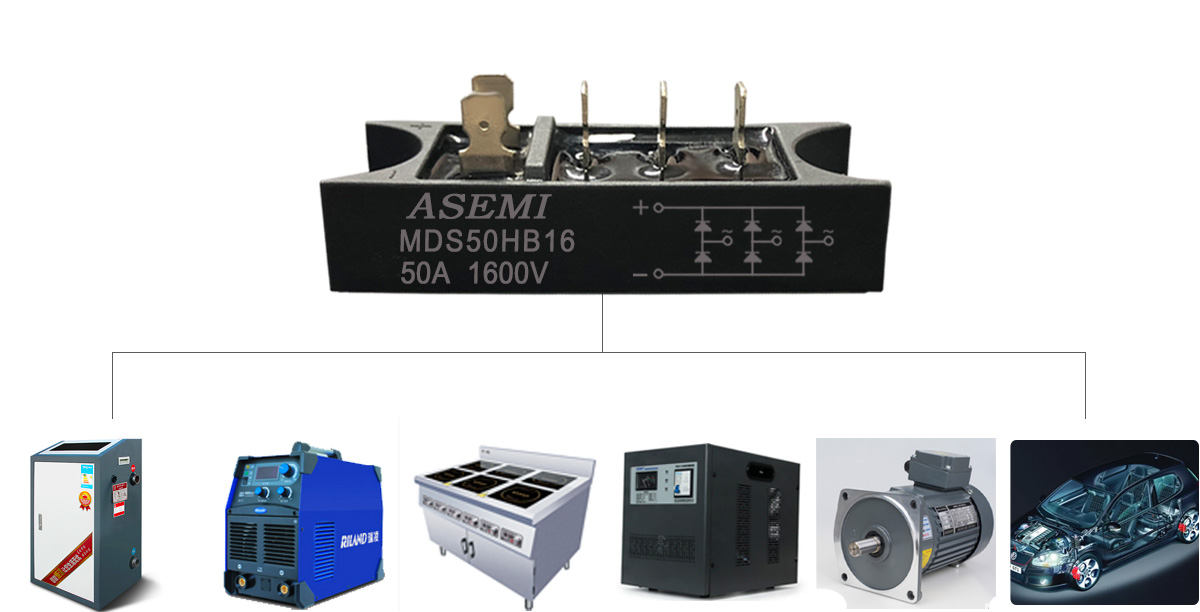

    APPLICATION

    MDS50HB16-3
  • lo

    50A
  • VRRM

    600V~1600V
  • IFSM

    2800A
  • lr

    >5uA
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    MDS50HB16/MDS50HB14/ ASEMI Three-phase rectifier module

    MDS50HB16 Parameter specification: current 50A voltage: 600V~1600V MOP:10pcs/box

    Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.

    This's ASEMI original product, the quality is stable and reliable.

    Welcome to apply for free sample test.
