TypeMSAD110-16
BrandASEMI
PackageMDA
Featurehigh-power
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 110A | 800V~1800V | GPP silicon chips | 2 | ≤10ua | -40℃~170℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 2500A | 2 | >500ns | 20PCS/BOX, 200PCS/CTN |
●Single arm common anode rectifier module MSAD110-16 electrical parameter 110A 800V~1800V
●Laser marking, not easy to fade, vinyl material; Epoxy resin material, good encapsulation stability
●The pin is oxygen-free copper with good resistance to bending, oxidation and conduction
●SAD110-16 :20 PCS/box of 200 PCS/box Material: kraft paper, resistant to pressure, abrasion and impact
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL

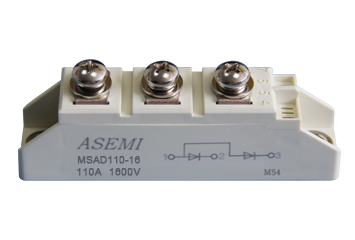

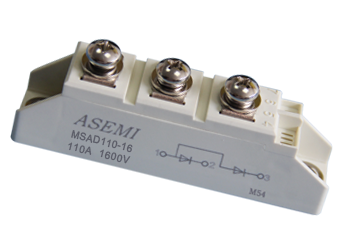

Single arm common anode rectifier module MSAD110-16
electrical parameters 110A 1600V
Laser marking, not easily fade, vinyl material; Epoxy resin material, good encapsulation stability
The pin is oxygen-free copper with good resistance to bending, oxidation and conduction
10pcs/box, anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
MDS50HB16: 100PCS/CTN material: kraft paper, resistant to pressure, abrasion and impact
Appearance of the packaging：10pcs/box
DESCRIPTION

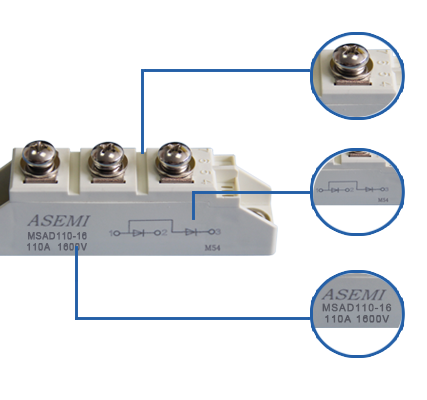

GREEN LASER PRINTER
●laser marking, not easily fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

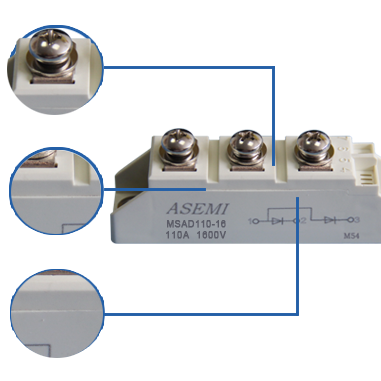

PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.41mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand in Taiwan
●A = advanced
●SEMI = semiconductor
●HB is the external volume of this product
●High strength anti - oxidation screws repeatedly twist and do not slip wire
●Non - slip safety gasket, good confinement, buffer hard force
PRODUCT ANALYSIS
●[MSAD110-16] represents the complete model of the product
●[MSAD] stands for rectifier module
●[110] means its forward current is 110a
●[-16] represents its reverse withstand voltage of 1600V
SIZE
Body Width ：
21mmBody Height ：
30mmPositioning ：
80mmPin spacing：
20mm
Height：
30mmhole diameter：
6.4mmScrew ：
M5PROCESS
Product
stability
Product stability
Adopt GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
APPLICATION
lo
110AVRRM
800V~1800VIFSM
2500Alr
≤10uaTemperature
-40℃~170℃COMPANY QUALIFICATION
PARTNER
CONTACT US

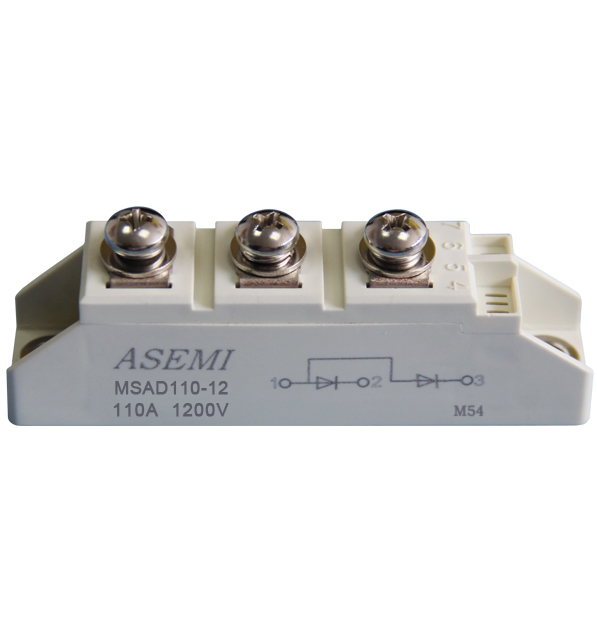

MSAD110-16,MSAD110-12,MSAD100 ASEMICommon anode rectifier module
MSAD110-16 Parameter specification: current 110A voltage: 800V~1800V MOP:20pcs/box
Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.
This's ASEMI original product, the quality is stable and reliable.
