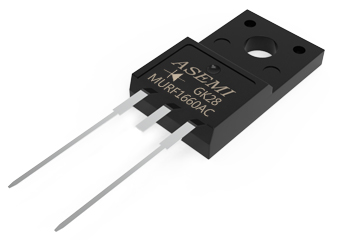

TypeMURF1660AC
BrandASEMI
PackageITO-220AC
FeatureHigh power
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 16A | 200V~800V | Impact resistant & silicon chip | 1 | 10ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.05V~1.50V | 175A | 102MIL | 2 | 35ns | 1000/box;5000/CTN |
●Super fast recovery diode MURF1660AC electrical parameters:16A;200V~800V
●Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
●The pin is anoxic copper with good resistance to bending, oxidation and conduction
●MURF1660AC :5K/CTN Material: kraft paper, resistant to pressure, abrasion and impact
●1K/box，50pcs/tube, Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
DETAIL

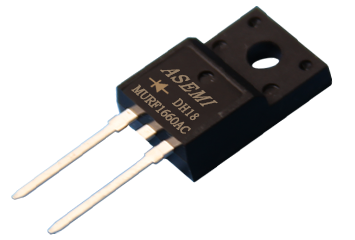

Super fast recovery diode MURF1660AC
electrical parameters 16A 600V
Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
The pin is anoxic copper with good resistance to bending, oxidation and conduction
1K/box,50pcs/tube,Environmental protection and anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
MURF1660AC: 5K/CTN Material: kraft paper, resistant to pressure, abrasion and impact
Packing：1K/box Carton: environmental protection, sealed material Size:56.4*15.0*4.1cm

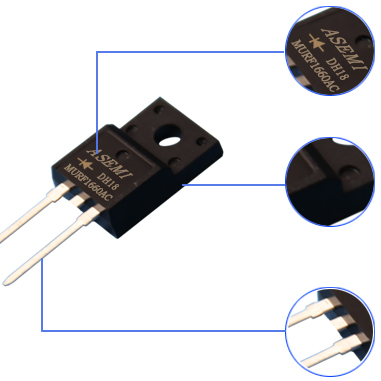

DESVRIPTION
GREEN LASER PRINTER
●laser marking, non-fading, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
ADVANCED PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
PURE OXYGEN-FREE COPPER PINS
●oxygen free copper, excellent electrical conductivity
●pin thickening design, thickness up to 0.25mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand in Taiwan
●A = advanced
●SEMI = semiconductor
●the figure shows the symbol of common cathod diode
●Represents input at the right end and output at the left end
●Means that there is one diode integrated inside
PRODUCT ANALYSIS
●[MURF1660AC] represents the complete model of the product
●[MUR] stands for the Super fast recovery diode
●[16] means its forward current is 16a
●[60] represents its reverse withstand voltage is 600V
●[F-AC] represents it's belong to ITO-220AC plastic package
SIZE
Body Height ：
15.00mmBody Width ：
10.16mmLead Length ：
13.60mmPositioning Hole Height：
16.00mm
Body Thickness：
4.57mmLead Spacing：
5.08mmLead Thickness：
0.42mmPROCESS
Product
stability
Product stability
Adopt Taiwan GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Perfect interpersonal interaction
Perfect interpersonal interaction
Reinforcement, cutting, separation, perfect interpersonal interaction process
PRODUCT PK
ASEMI adopts 102mil high-quality large chip, with good parameter consistency and stable and efficient output
Use inferior 95mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine
ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment
Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation
ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins
Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Notebook power
Automobile industry
lo
16AVRRM
200V~800VIFSM
175Alr
10uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

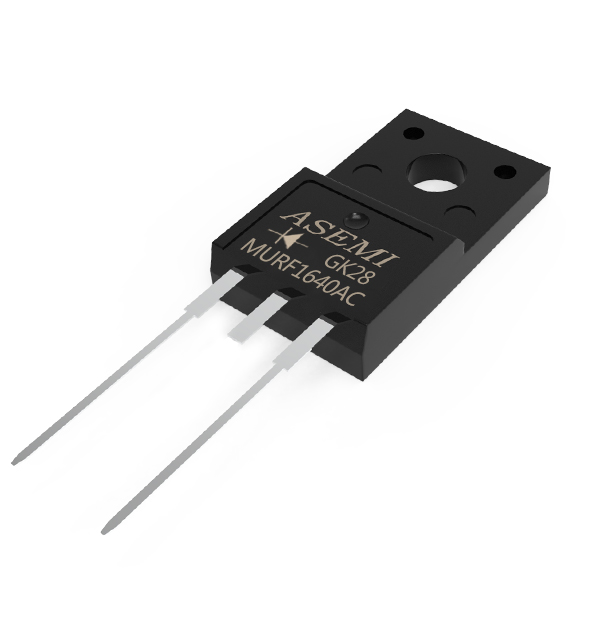

MURF1660AC,MURF1620/1640/1680AC, ASEMI Fast recovery diode
Parameter specification: current:16A voltage: 200V~800V MOP:1Kpcs/box
Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.
This product original packing genuine product, the quality guarantee high stability and the reliability.
