TypeUS1MB
BrandASEMI
PackageSMB
Featurepaster
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 1A | 50V~1000V | GPP(si) | 1 | 10ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 30A | 50MIL | 2 | 75ns~100ns | 3000/dish |
●super fast recovery diode US1MB electrical parameters:1A;50V~1000V
●Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
●The pin is anoxic copper with good resistance to bending, oxidation and conduction
●US1MB：3000/dish ; Material: kraft paper, resistant to pressure, abrasion and impact
●99K/CTN , Environmental protection and anti-static PE tape feeder, kraft paper box, anti-static, easy to preserve, recyclable.
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
Video content details：
ASEMI brand MB6S,MBS series，Environmentally friendly imported chip, export quality, GPP chip, environmentally friendly and reliable, high stability, highly consistent product dispersion. This product original packing genuine product, the quality guarantee high stability and the reliability.Welcome to apply for free sample test.
DETAIL

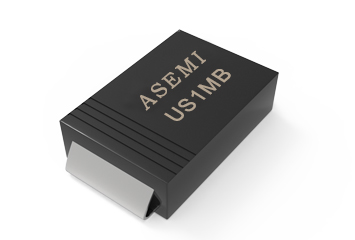

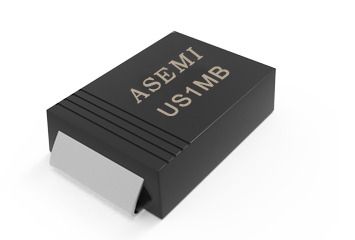

super fast recovery diode US1MB
electrical parameters 1A 1000V
Laser marking, fadeless, vinyl material; Epoxy resin material, good encapsulation stability
The pin is anoxic copper with good resistance to bending, oxidation and conduction
3000/dish,Environmental protection and anti-static PE tape feeder, anti-static, easy to preserve, recyclable.
US1MB: 99K/CTN;Material: kraft paper, resistant to pressure, abrasion and impact
Packing：6000/box ;Carton: environmental protection,kraft paper box,
DESVRIPTION

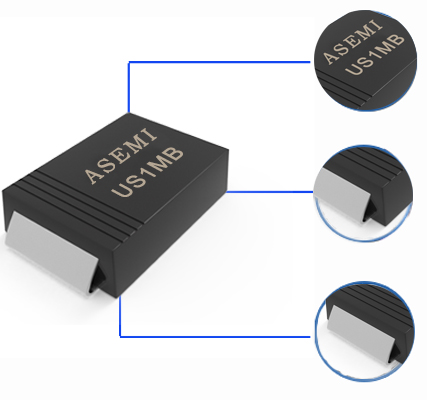

GREEN LASER PRINTER
●laser marking, non-fading, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
ADVANCED PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
PURE OXYGEN-FREE COPPER PINS
●oxygen free copper, excellent electrical conductivity
●pin thickening design, thickness up to 0.9mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand in Taiwan
●A = advanced
●SEMI = semiconductor
●The three bars represent the positive poles
●Safety testing and identification authority
●Safety inspection product yield labeling
PRODUCT ANALYSIS
●[US1MB] represents the complete model of the product
●[US] stands for the super fast recovery diode
●[1] means its forward current is 1a
●[M] represents its reverse withstand voltage is 1000V
●[B] represents it's belong to SMB
SIZE
Body Height ：
2.44mmBody Width ：
4.7mmLead Length ：
0.75mmlead width ：
2.11mm
package：
1.35mmLead Spacing：
2.59mmLead Thickness：
0.12mmPROCESS
Product
stability
Product stability
Adopt Taiwan GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Perfect interpersonal interaction
Perfect interpersonal interaction
Reinforcement, cutting, separation, perfect interpersonal interaction process
PRODUCT PK
ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output
Use inferior 46mil small chip,Inferior chip easy to heat after long-time working serious, and will damaged the machine
ASEMI uses laser marking, environmentally friendly, non-fading, and prevents refurbishment
Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation
ASEMI uses a high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins
Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Notebook power
Automobile industry
lo
1AVRRM
50V~1000VIFSM
30Alr
10uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

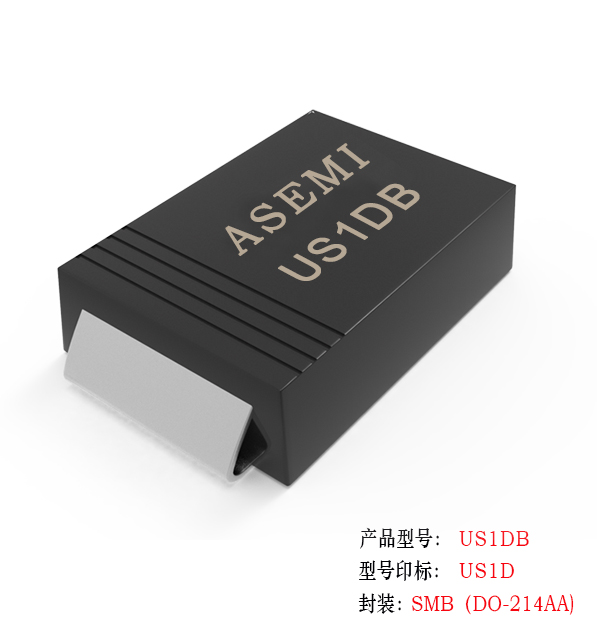

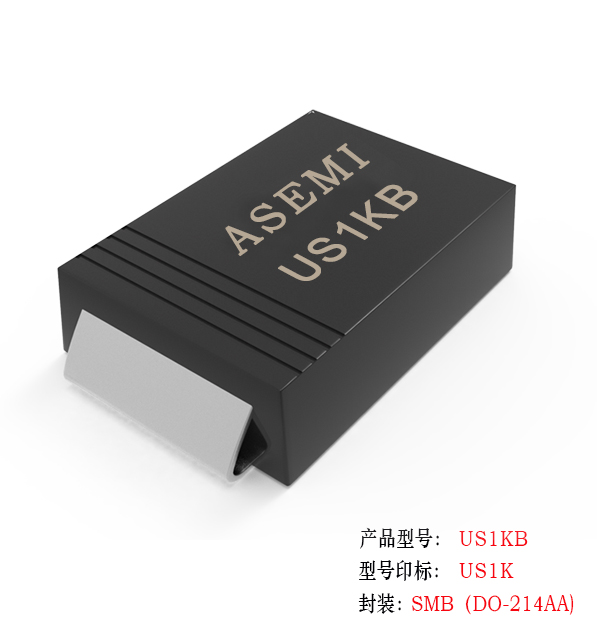

(US1M-SMB) US1MB/US1KB/US1JB/US1GB,ASEMI super fast recovery
US1MB Parameter specification: current:1A voltage: 50V~1000V MOQ:15Kpcs
Application in the field of small current products: low power switching mode power supply, power adapter, led lamp rectifier, fan, television, indoor air conditioner, household appliances and other related electrical products.
