TypeRMB16S
BrandASEMI
PackageRMBS
FeatureSMD rectifier bridge
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 1A | 200V~600V | GPP Silicon | 4 | 5uA | -55~+150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 0.5V~0.85V | 30A | 50MIL | 4 | 150ns~500ns | 5Kpcs/T&R, 10Kpcs/box |
●Rectifier bridge RMB16S electrical parameters 1A 200V~600V
●Laser marking, not easily fade, vinyl material：epoxy resin material, good encapsulation stability
●The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction
●RMB16S :50Kpcs/CTN, material: kraft paper, resistant to pressure, abrasion and impact
●5Kpcs/T&R ,10Kpcs/box, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand RMB16S,RMBS series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand RMB16S,RMBS series，it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL
SMD Super fast recovery rectifier bridge RMB16S
electrical parameters 1A 600V
Laser marking, not easily fade, vinyl material:epoxy resin material, good encapsulation stability
The pin is oxygen-free copper with good resistance to bending, oxidation and conduction
10Kpcs/box,5Kpcs/T&R, anti-static PE pipe, kraft paper box, anti-static, easy to preserve, recyclable.
RMB16S:50Kpcs/CTN, Material: kraft paper, resistant to pressure, abrasion and impact
Packing：10Kpcs/box, Size:33.8*33.8cm
DESCRIPTION

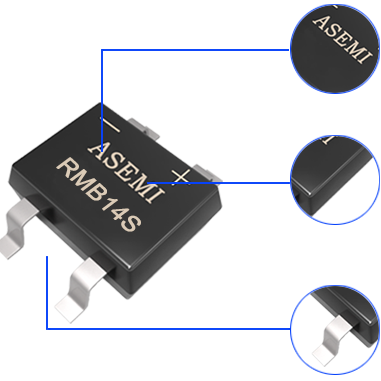

GREEN LASER PRINTER
●laser marking, not easily fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.25mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●【UL US safety certification LOGO 】
●【Safety experiment and appraisal authority】
●【 Safety inspection product yield prompt 】

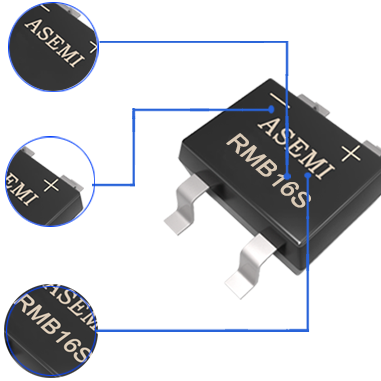

PRODUCT ANALYSIS
●[RMB16S] represents the complete model of the product
●[RMB] Super fast recovery rectifier bridge
●[1] means its forward current is 1A
●[6] represents its reverse withstand voltage is 600V
●[S] represents it's belong to SMD package
SIZE
Lead Spacing ：
2.5mmBody Length ：
4.7mmBody Height ：
1.5mmBody Width：
4.0mm
Lead Thickness ：
0.25mmBody Width：
4.0mmBody Length：
4.7mmPROCESS
Product
stability
Product stability
Adopt GPP wave chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Perfect interpersonal interaction
Flexible interpersonal interaction
Reinforcement, cutting, separation, flexible interpersonal interaction process
PRODUCT PK
ASEMI adopts 50mil high-quality large chip, with good parameter consistency and stable and efficient output
Inferior chip easy to heat after long-time working serious, and will damaged the machine
ASEMI uses laser marking, not easily fade, and prevents refurbishment
Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation
ASEMI uses oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins
Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

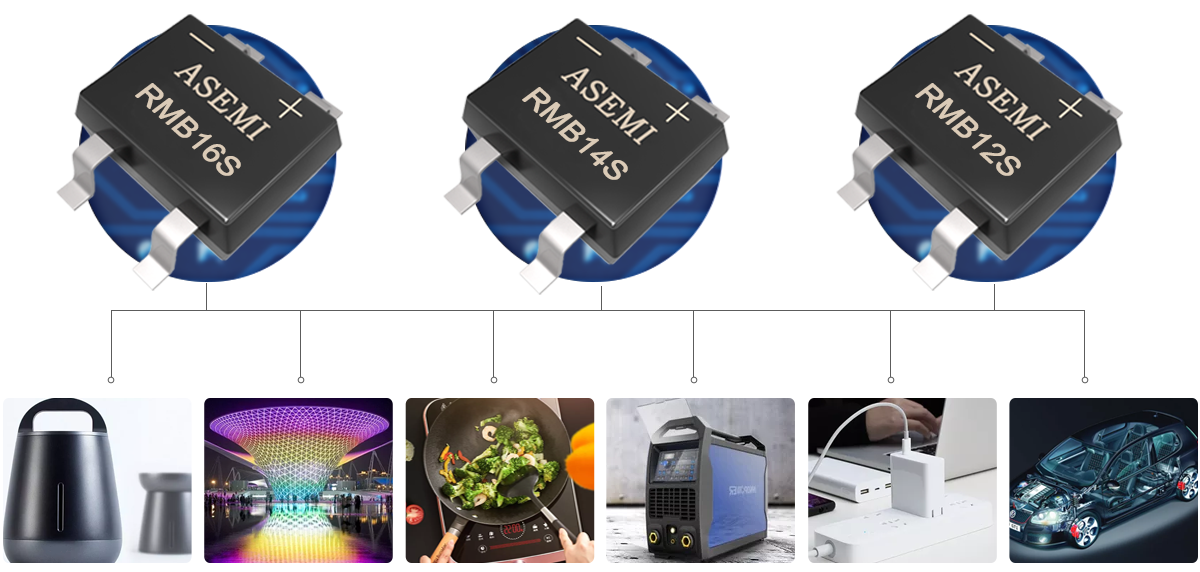

APPLICATION
Industrial equipment
Led lamps Led lighting
Induction cooker
Electric welding machine
Charger of laptop
Automobile industry
lo
1AVRRM
200V~600VIFSM
30Alr
5uATemperature
-55~+150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

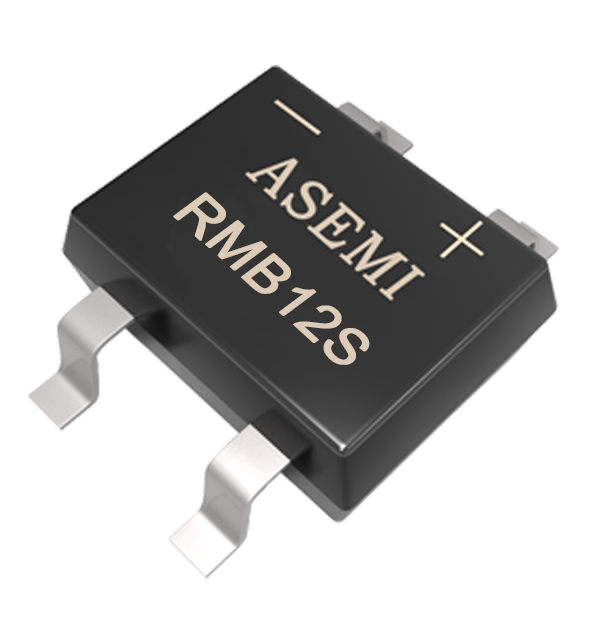

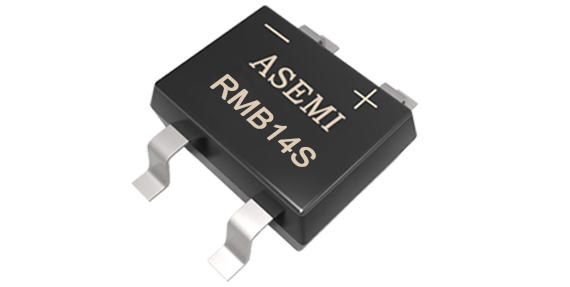

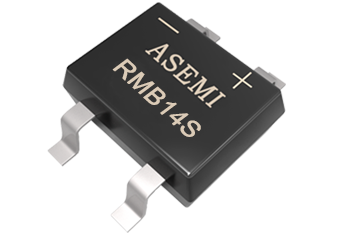

RMB16S/RMB14S/RMB12S，ASEMI Super fast recovery rectifier bridge
SMD rectifier bridge RMB16S parameter specifications: current :1A voltage: 200V~600V;Box packing: 5000Pcs/ T&R
is applied in the field of small current products: small power switching power supply, power adapter, LED lamp rectifier, electric fan, television, indoor
air conditioner, household appliances and other related electrical products.This product is of good quality, quality and reliability Welcome to apply for free sample test.
