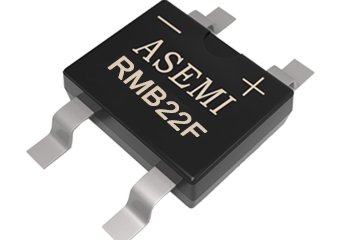

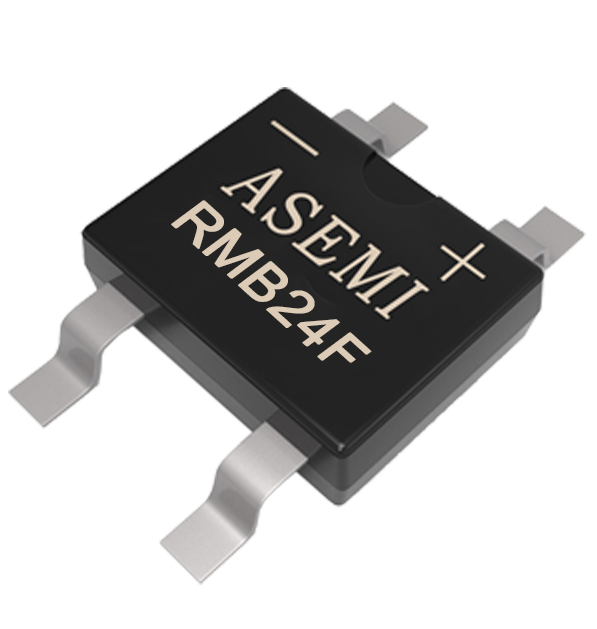

RMB26F/RMB24F/RMB22F,ASEMI SMD fast recovery rectifier bridge
  • TypeRMB26F

    BrandASEMI

    PackageRMBF

    FeatureSMD rectifier bridge

  • lo VRRM Chip Material Chip Number lr Temperature
    2A 200V~600V GPP Silicon 4 5uA -55~+150℃
    VF IFSM Chip Size Lead Number Trr Package
    0.5V~0.85V 60A 60MIL 4 150ns~500ns 5Kpcs/ T&R 10Kpcs/box

    Rectifier bridge RMB26F electrical parameters 2A 200V~600V

    Laser marking,not easily fade, vinyl material:epoxy resin material, good encapsulation stability

    The pin is oxygen-free copper with good resistance to bending, oxidation and good conduction

    RMB26F :50Kpcs/CTN, material: kraft paper, resistant to pressure, abrasion and impact

    5Kpcs/T&R ,10Kpcs/box, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.

    Purchase:

    400-9929-667

    VIDEO

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand RMB26F RMBF series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand RMB26F RMBF series,it adopts GPP chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    1、规格书

    DETAIL

    2、6小图 1

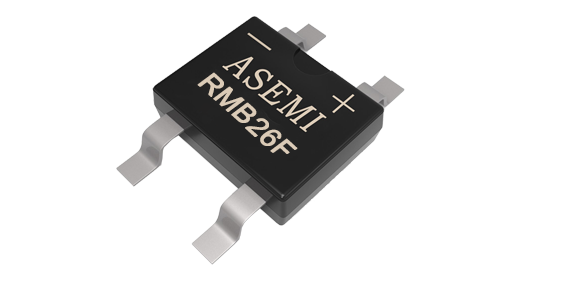

    SMD Fast recovery rectifier bridge RMB26F

    electrical parameters 2A 600V

    2、6小图 2

    Laser marking, not easily fade, vinyl material:epoxy resin material, good encapsulation stability

    2、6小图 3

    The pin is oxygen-free copper with good resistance to bending, oxidation and conduction

    6-4

    10Kpcs/box,5Kpcs/T&R, anti-static PE pipe, anti-static kraft paper box, easy to preserve, recyclable.

    贴片插件桥堆

    RMB26F:50Kpcs/CTN,  Material: kraft paper, resistant to pressure, abrasion and impact

    6-6

    Packing:10Kpcs/box, Size:33.8*33.8cm

    DESCRIPTION

    3、详解1
    3、详解2

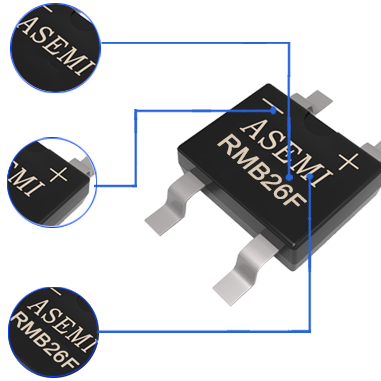

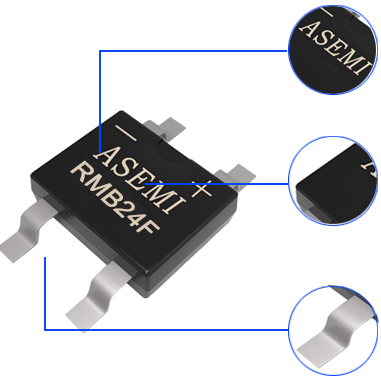

    GREEN LASER PRINTER

    laser marking, not easily fade, to solve the ink screen printing easy fade

    high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    disposable injection molding with epoxy resin material

    good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    oxygen free copper, good electrical conductivity

    pin thickening design, thickness up to 0.25mm, can work for a long time without heating

    the LOGO of the original "ASEMI" brand

    A = advanced

    SEMI = semiconductor

    【UL US safety certification LOGO 】

    【Safety experiment and appraisal authority】

    【 Safety inspection product yield prompt 】

    PRODUCT ANALYSIS

    [RMB26F] represents the complete model of the product

    [RMB] Represents Fast recovery Rectifier bridge

    [2] means its forward current is 2A

    [6] represents its reverse withstand voltage is 600V

    [F] represents it's belong to SMD package

    SIZE

    9、尺寸图
  • Lead Spacing :

    2.5mm
  • Body Length :

    4.7mm
  • Body Height :

    1.5mm
  • Body Width:

    4.0mm
  • 9、尺寸图2
  • Lead Thickness :

    0.25mm
  • Body Width:

    4.0mm
  • Body Length:

    4.7mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt GPP wave chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation, interpersonal interaction process

    PRODUCT PK

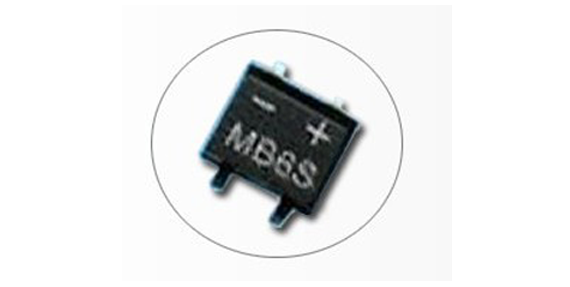

    MB6S PK 1 MB6S PK2

    ASEMI adopts 60mil high-quality large chip, with good parameter consistency and stable and efficient output

    Inferior chip easy to heat after long-time working serious, and will damaged the machine

    5、PK MB6S 打2

    ASEMI uses laser marking,not easily fade, and prevents refurbishment

    Inferior and easy to drop word will pullute PCB board,and also exist a problem of malicious renovation

    5、PK1 MB6S PK6

    ASEMI uses oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins

    Ordinary steel is easy to be oxidize and virtual weld, the strength is low then easy to break

    MB6S PK7 MB6S PK8

    The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously

    Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor

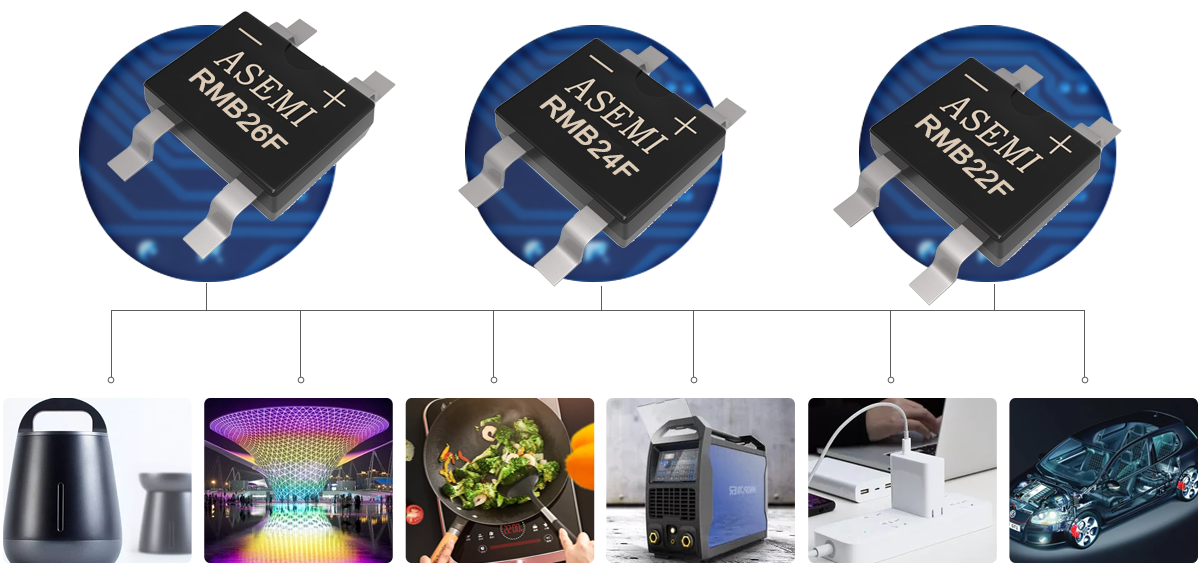

    APPLICATION

    Industrial equipment

    Led lamps Led lighting

    Induction cooker

    Electric welding machine

    Charger of laptop

    Automobile industry

    6、应用领域 1200-612
  • lo

    2A
  • VRRM

    200V~600V
  • IFSM

    60A
  • lr

    5uA
  • Temperature

    -55~+150℃
  • PARTNER

    CONTACT US

    RMB26F/RMB24F/RMB22F,ASEMI SMD fast recovery rectifier bridge

    Fast recovery rectifier bridge RMB26F parameter specifications: current :2A voltage: 200V~600V;Box packing: 5000Pcs/T&R

    is applied in the field of small current products: small power switching power supply, power adapter, LED lamp rectifier, electric fan, television, indoor

    air conditioner, household appliances and other related electrical products.This product is of good quality, quality and reliability Welcome to apply for free sample test.
