RS310/RS308/RS307/RS306, ASEMI bridge rectifier
  • TypeRS310

    BrandASEMI

    PackageRS-4

    FeatureDIP bridge rectifier

  • lo VRRM Chip Material Chip Number lr Temperature
    3A 50V~1000V GPP silicon chip 4 ≤5ua -50℃~150℃
    VF IFSM Chip Size Lead Number Trr Package
    1.05V 60A 60MIL 4 >500ns 500pcs/box;3Kpcs/ctn

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and prevents electrical degradation

    Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability

    Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity

    Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection

    The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse

    Purchase:

    400-9929-667

    VIDEO

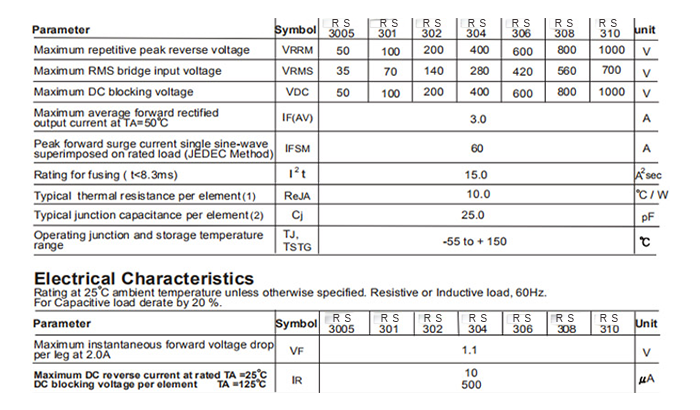

    PRODUCT PARAMETERS

    Video content details:

    ASEMI brand RS307,RS-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    Video content details:

    ASEMI brand RS310,RS-4 series,it adopts glass-encapsulated GPP process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

    RS310

    DETAIL

    RS310

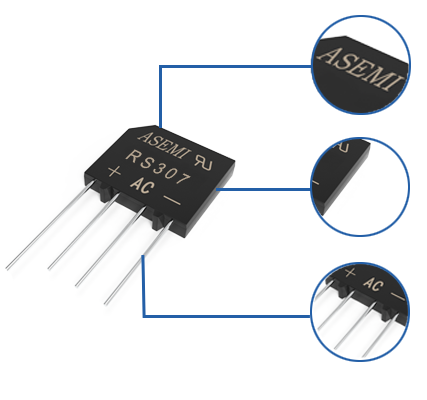

    Adopts glass-encapsulated GPP process chip, which has good sealing reliability and anti-electricity decline.

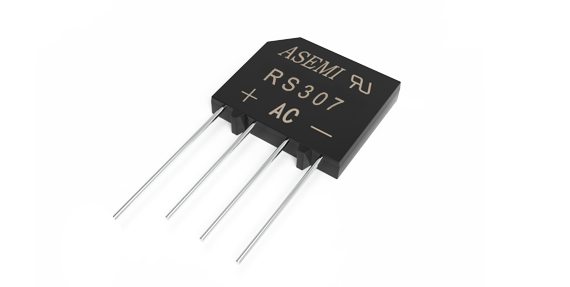

    RS307

    Laser marking, not easy to fade; epoxy resin molding, good insulation stability.

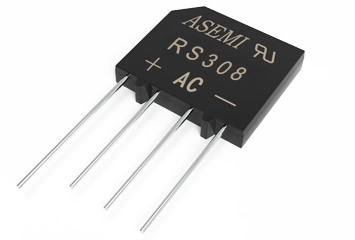

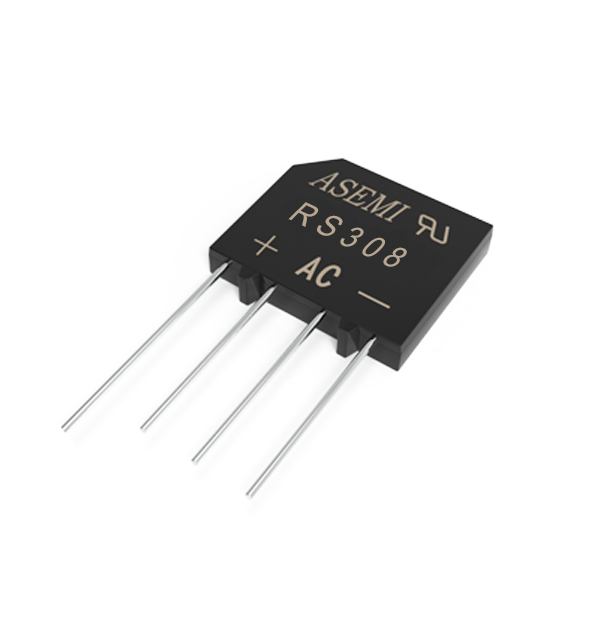

    RS308

    The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.

    Independent small package to prevent material backlog collision and scratch, product information clearly marked.

    5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.

    3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.

    DESCRIPTION

    RS310
    RS310
    GREEN LASER PRINTER

    ●laser marking is not easy to fade, to solve the ink screen printing easy fade

    ●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing

    PLASTIC PACKAGING

    ●disposable injection molding with epoxy resin material

    ●good flame retardant performance, high strength, high temperature resistance

    OXYGEN-FREE COPPER PINS

    ●oxygen free copper, good electrical conductivity

    ●pin thickening design, thickness up to 0.81mm, can work for a long time without heating

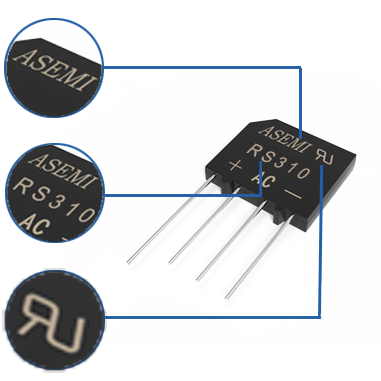

    the LOGO of the original "ASEMI" brand in Taiwan

    A = advanced

    SEMI = semiconductor

    the figure shows the common negative diode symbol

    generally, input at both ends and output in the middle

    two diodes integrated inside

    PRODUCT ANALYSIS

    [RS310] represents the complete model of the product

    [RS] For the package of this product

    [3] means its forward current is 3A

    [10] represents its reverse withstand voltage of 1000V


    SIZE

    KBP210-1
  • Body Width :

    14.7mm
  • Body Height :

    11.2mm
  • Lead Length :

    15.2mm
  • Lead Space :

    3.85mm
  • KBP尺寸图2
  • Body Thickness:

    3.73mm
  • Lead Thickness:

    0.81mm
  • Positioning hole height:

    0.0mm

  • PROCESS

    Product

    stability

    Product stability

    Adopt GPP chip, the product continues to be stable

    Accurate product quantity

    Accurate product quantity

    Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage

    One-step injection molding

    One-step injection molding

    Automated equipment supports injection molding in one step

    Passed 6 quality checks

    Passed 6 quality
    checks

    12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.

    Interpersonal interaction

    Interpersonal interaction

    Reinforcement, cutting, separation,  interpersonal interaction process

    PRODUCT PK

    KBP210-1 KBP210-2

    ASEMI adopt 60mil High quality chip, good parameter consistency, stable and efficient output

    Some uses inferior 50mil poor quality chip, long time working easy to heat and blow up

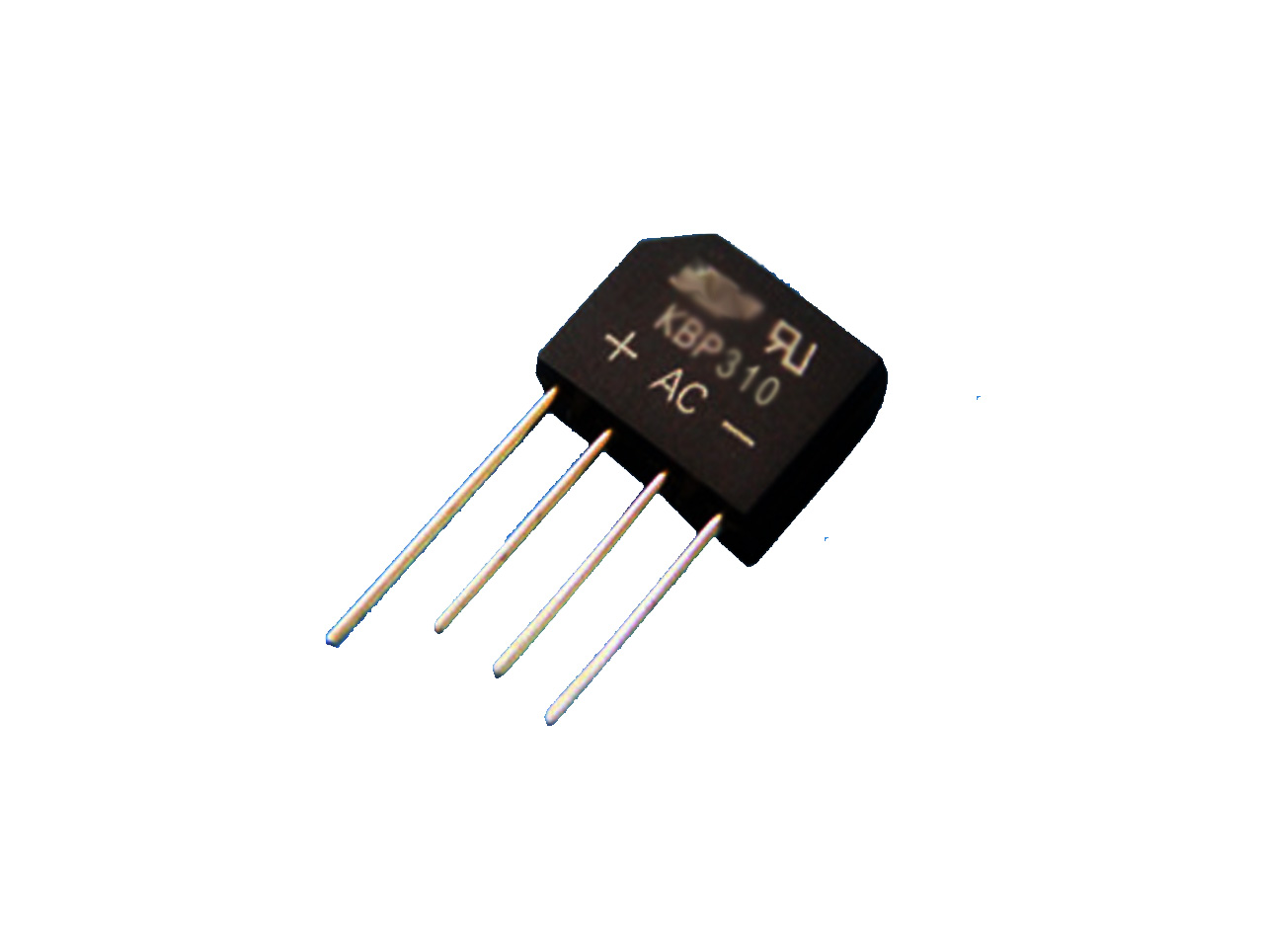

    RS310 KBP310-2

    ASEMI uses laser marking is not easy to fade and prevents refurbishment
    Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment

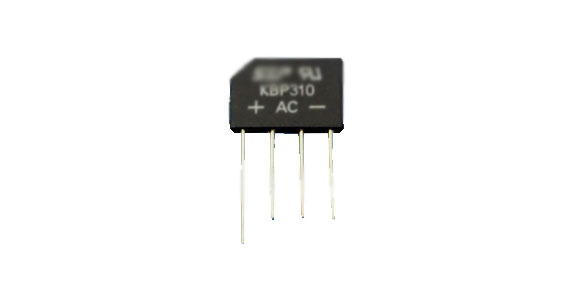

    RS310 KBP310

    ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
    Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance


    MB6S-ASEMI MB6s-ASEMI

    ASEMI factory adopts the special equipment of jianding and guankuigao, and tests 18 key electrical data at the same time

    Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

    APPLICATION

    Industrial equipment

    Led lamps and lanterns

    Induction cooker

    Electric welding machine

    Power adapter of laptop

    Automobile industry

  • lo

    3A
  • VRRM

    50V~1000V
  • IFSM

    60A
  • lr

    ≤5ua
  • Temperature

    -50℃~150℃
  • PARTNER

    CONTACT US

    RS310/RS308/RS307/RS306, ASEMI bridge rectifier

    RS310 electrical parameters: maximum forward average current 3A; maximum reverse peak voltage 1000V

    RS310 packaging method: 500pcs/box;3Kpcs/ctn

    The bridge rectifier is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products

    Welcome to apply for free sample test.
