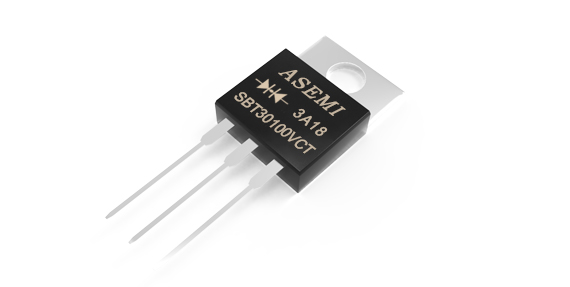

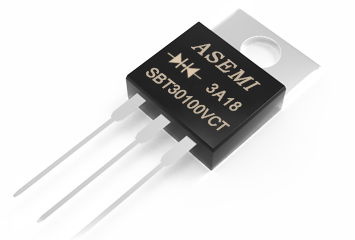

TypeSBT30100VCT
BrandASEMI
PackageTO-220AB
FeatureLOW VF

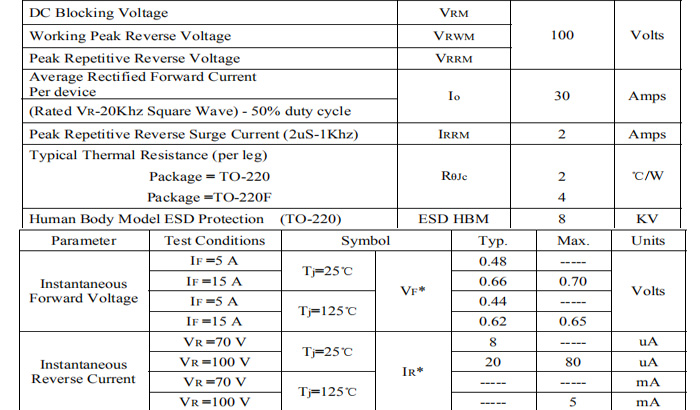

| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 30A | 40V~200V | Metal & silicon chip | 2 ( separated ) | 20ua | -40℃~170℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 0.40V~0.66V | 200A | 100mil*2 | 3 | 5ns | 1Kpcs/box. 5Kpcs/ctn |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO
PRODUCT PARAMETERS
Video content details：

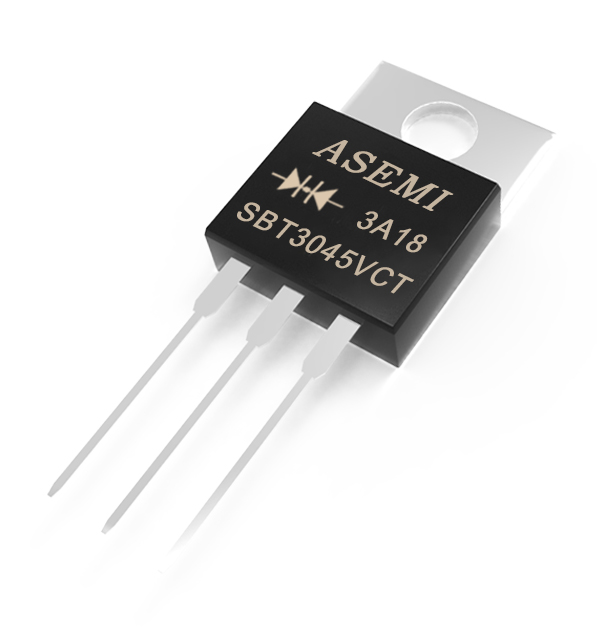

ASEMI brand SBT3045VCT,TO-220AB series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand SBT30100VCT,TO-220AB series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL

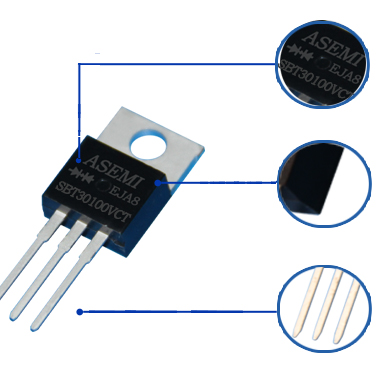

Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.
Laser marking, not easy to fade; epoxy resin molding, good insulation stability.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION

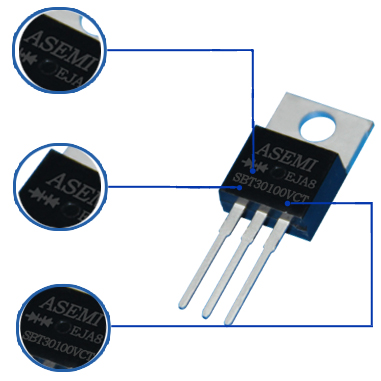

GREEN LASER PRINTER
●laser marking is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.25mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●the figure shows the symbol of common cathod diode
●both ends are input current and the middle is output current in general
●there are two diodes integrated inside
PRODUCT ANALYSIS
●[SBT30100VCT] represents the complete model of the product
●[SBT-V] stands for the V version of the low vf schottky diode
●[30] means its forward current is 30a
●[100] represents its reverse withstand voltage is 100V
●[CT] represents it's belong to TO-220AB package
SIZE
Body Height ：
15.00mmBody Width ：
10.16mmLead Length ：
13.60mmPositioning Hole Height：
16.00mm
Body Thickness：
4.57mmLead Spacing：
2.54mmLead Thickness：
0.62mmPROCESS
Product
stability
Product stability
Adopt high-quality process chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopts 100mil high-quality large chip, with good parameter consistency and stable and efficient output
Some uses inferior 95mil poor quality chip, long time working easy to heat and blow up
ASEMI uses laser marking is not easy to fade and prevent renovation
Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment
ASEMI uses oxygen-free copper material, good conductivity, tinned layer, simple storage, anti-oxidation and easy welding
Ordinary copper frame material or iron pins, easy to cause pin oxidation, easy to de-soldering when on the machine, large impedance
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Ordinary production equipment has low accuracy, less strict electrical parameter detection, uneven quality and poor consistency

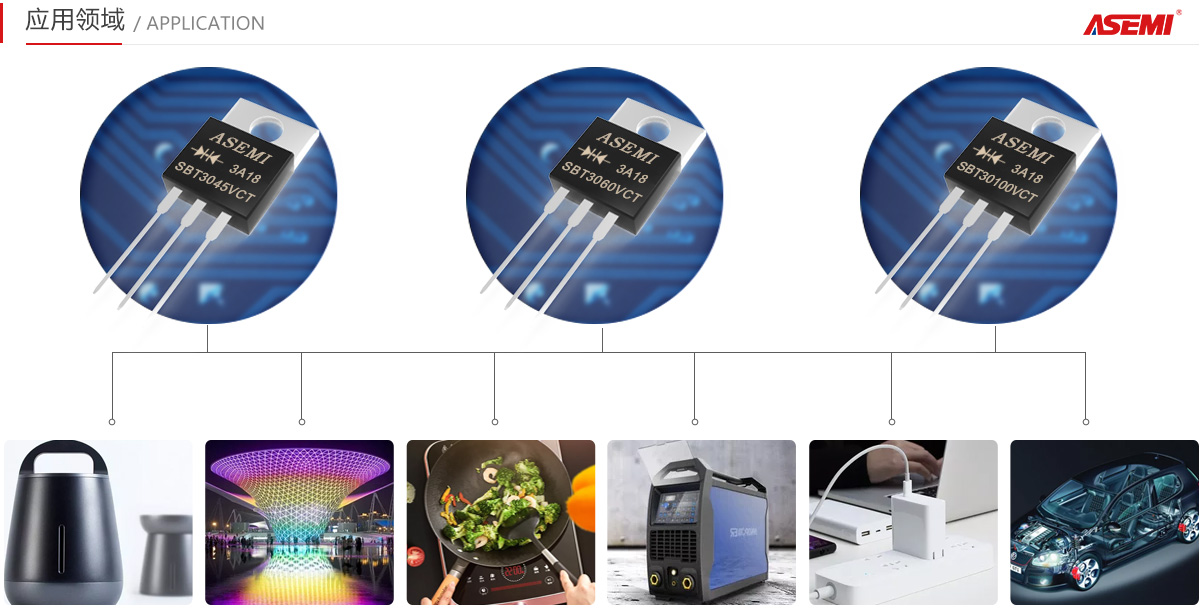

APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Power adapter of laptop
Automobile industry
lo
30AVRRM
40V~200VIFSM
200Alr
20uaTemperature
-40℃~170℃COMPANY QUALIFICATION
PARTNER
CONTACT US

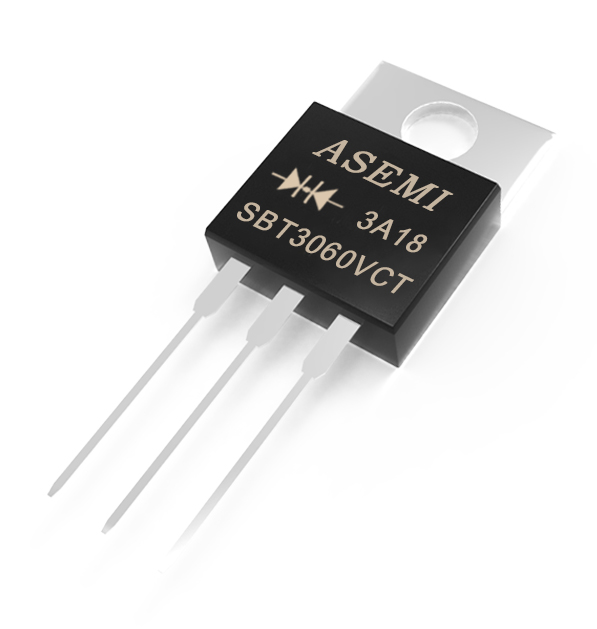

SBT30100VCT,SBT3060VCT/3045VCT,SBT30150VCT, Low VF SchottkyDiode
SBT30100VCT electrical parameters: maximum forward average current 30A; maximum reverse peak voltage 100V
SBT30100VCT packaging method: 1Kpcs/box. 5Kpcs/ctn
The diode is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
Welcome to apply for free sample test.Sales(1):0755-83235680
Sales(2):0755-83239557
Sales(3):0755-83239588
Overseas sales:(+86)0755-83231856
24-hour Phone:13530121177
400 Number:400-9929-667
Email:sales@asemi88.com
Fax:0755-83979773
