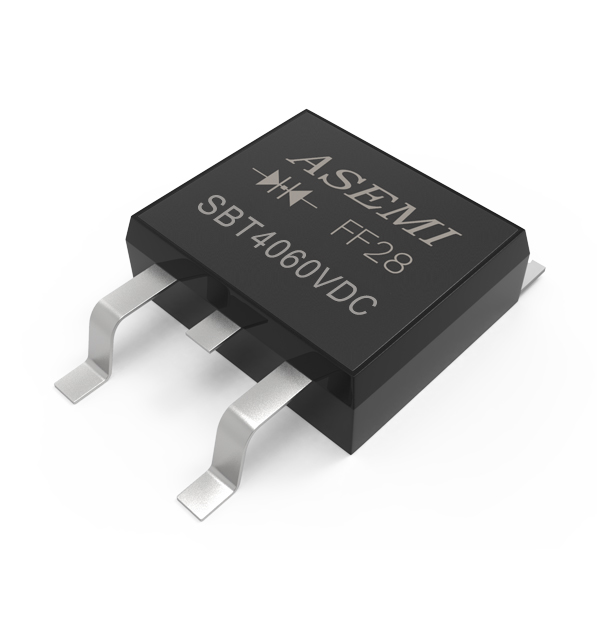

TypeSBT40100VDC
BrandASEMI
PackageTO-263
FeatureLOW VF
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 40A | 45V~200V | Metal & silicon chip | 2 ( separated ) | 20ua | -40℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 0.40V~0.66V | 250A | 120MIL*2 | 3 | 5ns | 800pcs/box. 5Kpcs/ctn |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand SBT40100VDC,TO-263 series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.

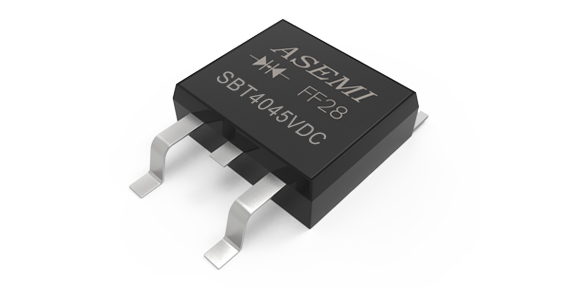

Video content details：
ASEMI brand SBT4045VDC,TO-263 series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL

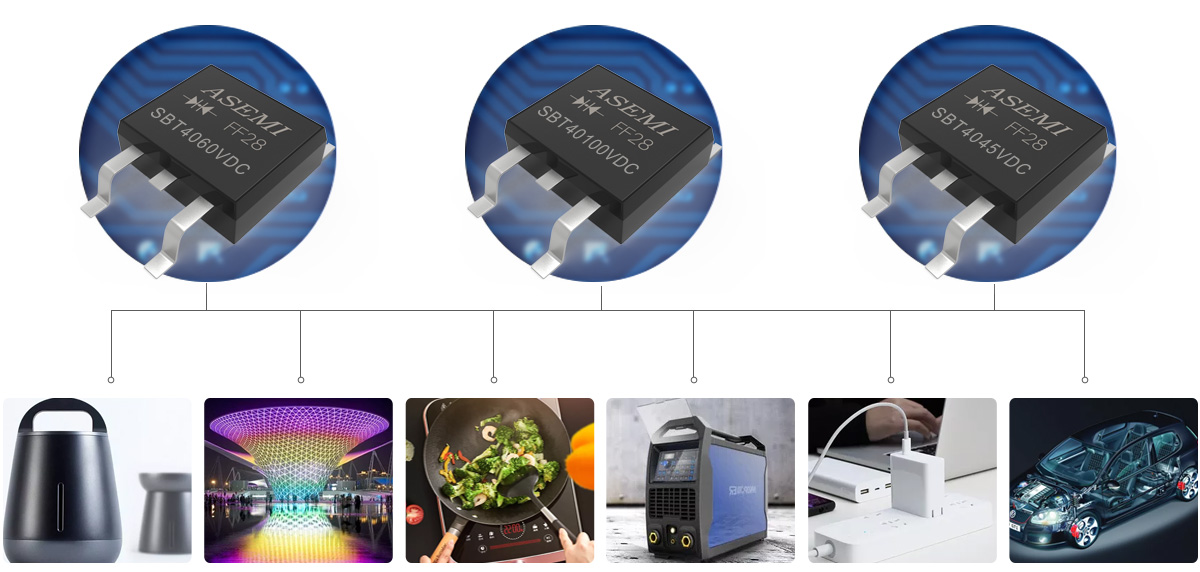

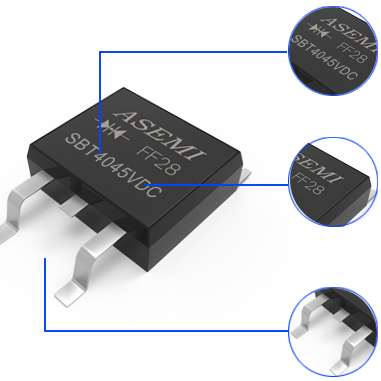

Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.
Laser marking, not easy to fade; epoxy resin molding, good insulation stability.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION

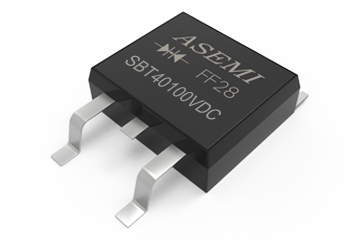

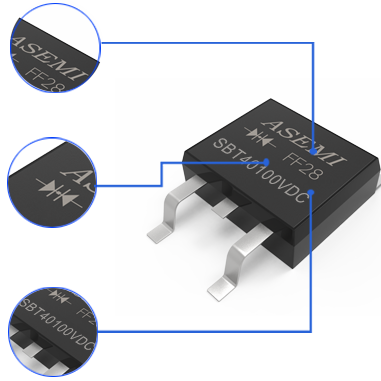

GREEN LASER PRINTER
●laser marking is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.41mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●the figure shows the symbol of common cathod diode
●both ends are input current and the middle is output current in general
●there are two diodes integrated inside
PRODUCT ANALYSIS
●[SBT40100VDC] represents the complete model of the product
●[SBT-V] stands for the Low VF schottky diode
●[40] means its forward current is 40a
●[100] represents its reverse withstand voltage is 100V
●[DC] represents it's belong to TO-263 plastic package
