TypeUS8MC
BrandASEMI
PackageSMC
FeatureSMD diode
| lo | VRRM | Chip Material | Chip Number | lr | Temperature |
|---|---|---|---|---|---|
| 8A | 20V~1000V | GPP(si) | 1 | 10ua | -50℃~150℃ |
| VF | IFSM | Chip Size | Lead Number | Trr | Package |
| 1.1V | 300A | 150MIL | 2 | 50ns~100ns | 3Kpcs/T&R 6Kpcs/box |
●Adopts high-quality process chip, which has good sealing reliability and prevents electrical degradation
●Laser marking is not easy to fade and prevent refurbishment; epoxy resin grease has good stability
●Oxygen-free copper frame pins, bright tin plating to prevent oxidation, small internal resistance, good conductivity
●Adopt 5 layers of large corrugated kraft paper box, 4 layers of restraint belt protection
●The inner box is protected by moisture-proof plastic film, which is convenient for long-term storage in the warehouse
VIDEO
PRODUCT PARAMETERS
Video content details：
ASEMI brand SMC series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
Video content details：
ASEMI brand SMC series，it adopts high-quality process chip with high stability, highly consistent product dispersion etc features.This product is ASEMI original product, the quality is stable and reliable.Welcome to apply for free sample test.
DETAIL
Adopts high-quality process chip, which has good sealing reliability and anti-electricity decline.
Laser marking, not easy to fade; epoxy resin molding, good insulation stability.
The frame pins are made of oxygen-free copper material, with small internal resistance, good conductivity.
Independent small package to prevent material backlog collision and scratch, product information clearly marked.
5 layers of large corrugated kraft paper box, 4 fastening belt protection, pressure and wear resistance can be reused.
3-layer small corrugated inner box + moisture-proof plastic film protection, convenient to store and easy to solder on the machine.
DESCRIPTION
GREEN LASER PRINTER
●laser marking is not easy to fade, to solve the ink screen printing easy fade
●high production efficiency of laser marking, short delivery time, solve the problem of long delivery time and low efficiency of ink printing
PLASTIC PACKAGING
●disposable injection molding with epoxy resin material
●good flame retardant performance, high strength, high temperature resistance
OXYGEN-FREE COPPER PINS
●oxygen free copper, good electrical conductivity
●pin thickening design, thickness up to 0.9mm, can work for a long time without heating
●the LOGO of the original "ASEMI" brand
●A = advanced
●SEMI = semiconductor
●The three bars represent the positive poles
●Safety testing and identification authority
●Safety inspection product yield labeling
PRODUCT ANALYSIS

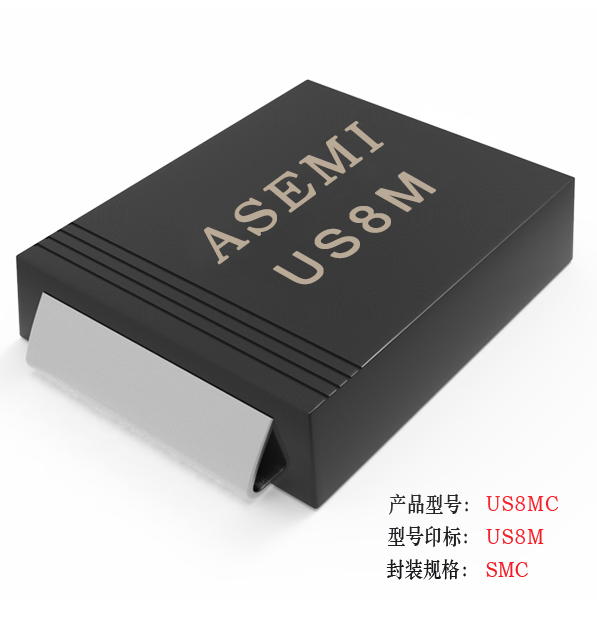

●[US8MC] represents the complete model of the product
●[US] stands for super fast recovery diode
●[8] means its forward current is 8a
●[M] represents its reverse withstand voltage is 1000V
●[C] represents it's belong to SMC
SIZE
Body Height ：
6.6mmBody Width ：
6.22mmLead Length ：
0.63mmlead width ：
0.76mm
thickness：
2.62mmLead Spacing：
6.6mmLead Thickness：
0.2mmPROCESS
Product
stability
Product stability
Adopt high-quality process chip, the product continues to be stable
Accurate product quantity
Accurate product quantity
Strict packaging inspection procedures to ensure that the product quantity is accurate, packaging without damage
One-step injection molding
One-step injection molding
Automated equipment supports injection molding in one step
Passed 6 quality checks
Passed 6 quality
checks
12 parameters such as Vb, Io, If, Vf, and Ir are detected through 6 channels, and ΔV is controlled within 80V to improve the consistency and reliability of 4 chips.
Interpersonal interaction
Interpersonal interaction
Reinforcement, cutting, separation, interpersonal interaction process
PRODUCT PK
ASEMI adopts 110mil high-quality large chip, with good parameter consistency and stable and efficient output
Use inferior 84mil small chip easy to heat seriously after long-time working , and will damaged the machine.
ASEMI uses laser marking is not easy to fade ,and prevents refurbishment
Ordinary ink screen printing is easy to fade, pollute the circuit board, there are bad problems such as malicious refurbishment
ASEMI uses high-purity oxygen-free copper frame and pins, with good electrical conductivity and high strength of thickened pins
Ordinary pins are easy to be oxidize and virtual weld, the strength is low then easy to break
The ASEMI factory uses Jianding and Guankui high-precision equipment to test 18 key electrical data simultaneously
Other equipment has low precision, the electrical parameter detection is not strict, and the quality consistency is poor
APPLICATION
Industrial equipment
Led lamps and lanterns
Induction cooker
Electric welding machine
Power adapter of laptop
Automobile industry
lo
8AVRRM
20V~1000VIFSM
300Alr
10uaTemperature
-50℃~150℃COMPANY QUALIFICATION
PARTNER
CONTACT US

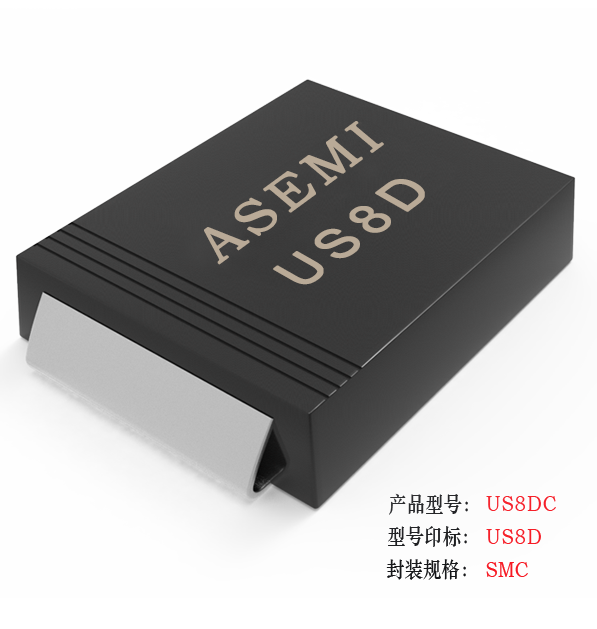

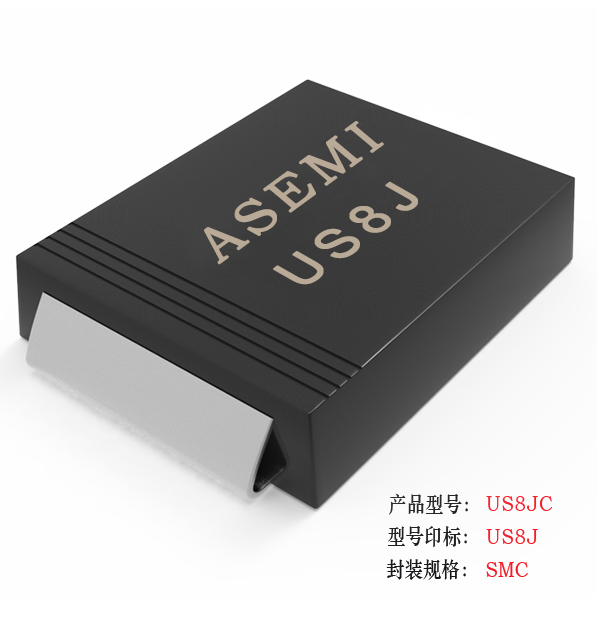

【US8M-SMC】US8MC/US8DC/US8GC/US8JC/US8, ASEMI super fast recovery
US8MC electrical parameters: maximum forward average current 8A; maximum reverse peak voltage 1000V
US8MCpackaging method: 3Kpcs/T&R 6Kpcs/box
The diode is widely used in: power supplies, chargers, adapters, LED lighting, home appliances, civil and industrial equipment and other products
