I believe that you know the rectifier bridge, you will not be unfamiliar with the ASEMI brand. Today, we will introduce the GBJ3510 rectifier bridge. The basic parameters are as follows:

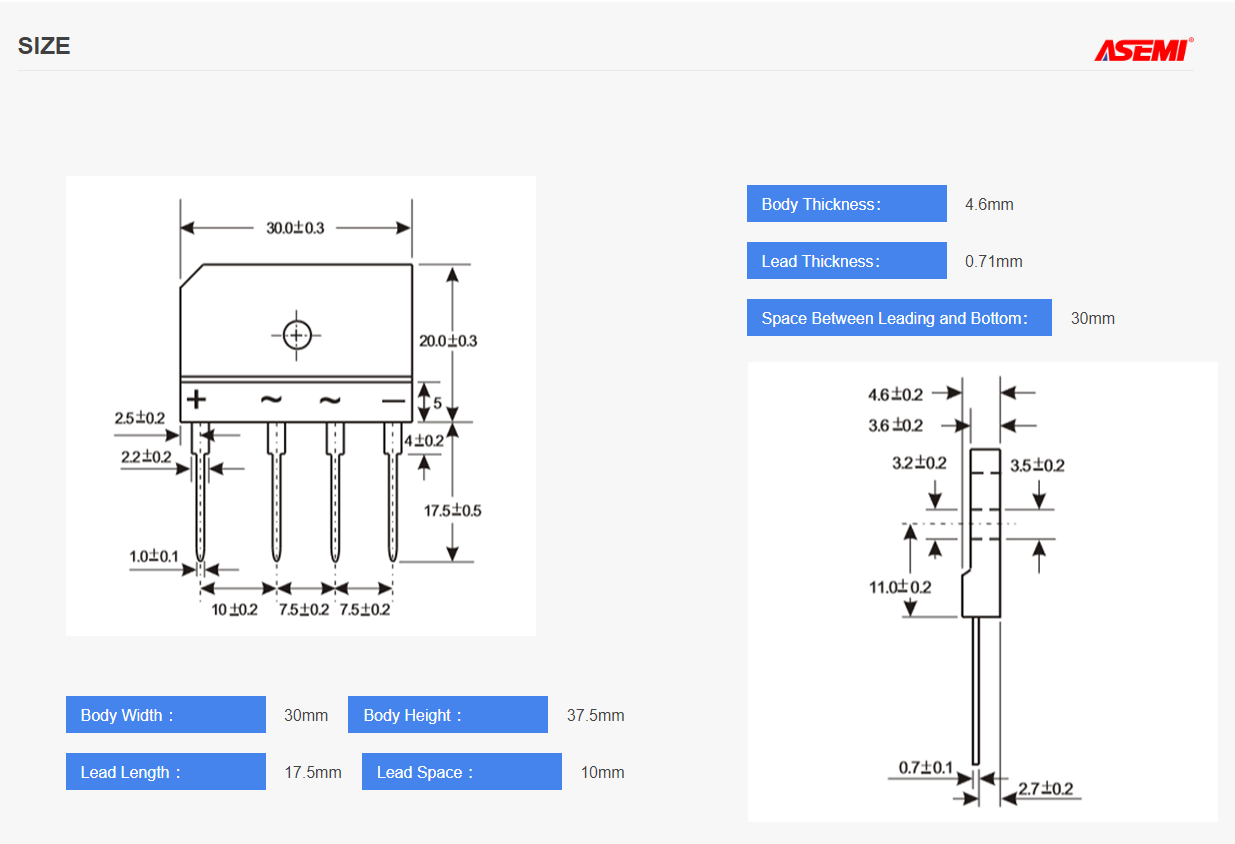

Package: GBJ-4

Features: thin flat bridge

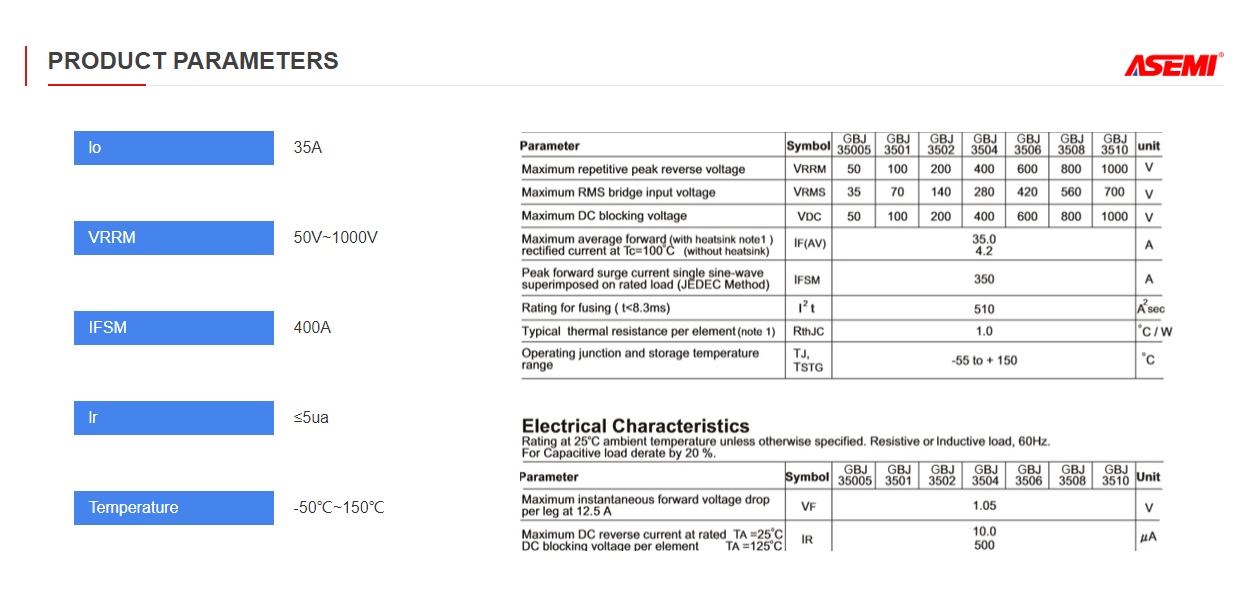

★Electric parameters: 35A 1000V

★ chip material: GPP

★ Forward current (Io): 35A

★Number of chips: 4

★ Forward voltage (VF): 1.1V

★ Chip size: 160 MIL

★ Surge current Ifsm: 400A

★Is it imported: Yes

★Leakage current (Ir): 5ua

★Working temperature: -55 °C ~ 150 °C

★ Recovery time (Trr): 500ns

★Number of leads: 4

As you can see, GBJ3510 is specially designed for the 2.5KW, 3.5KW part of the high-power induction cooker. It uses the GPP large chip from with a size of 160mil, and the parameter stability is good, 35A1000V;

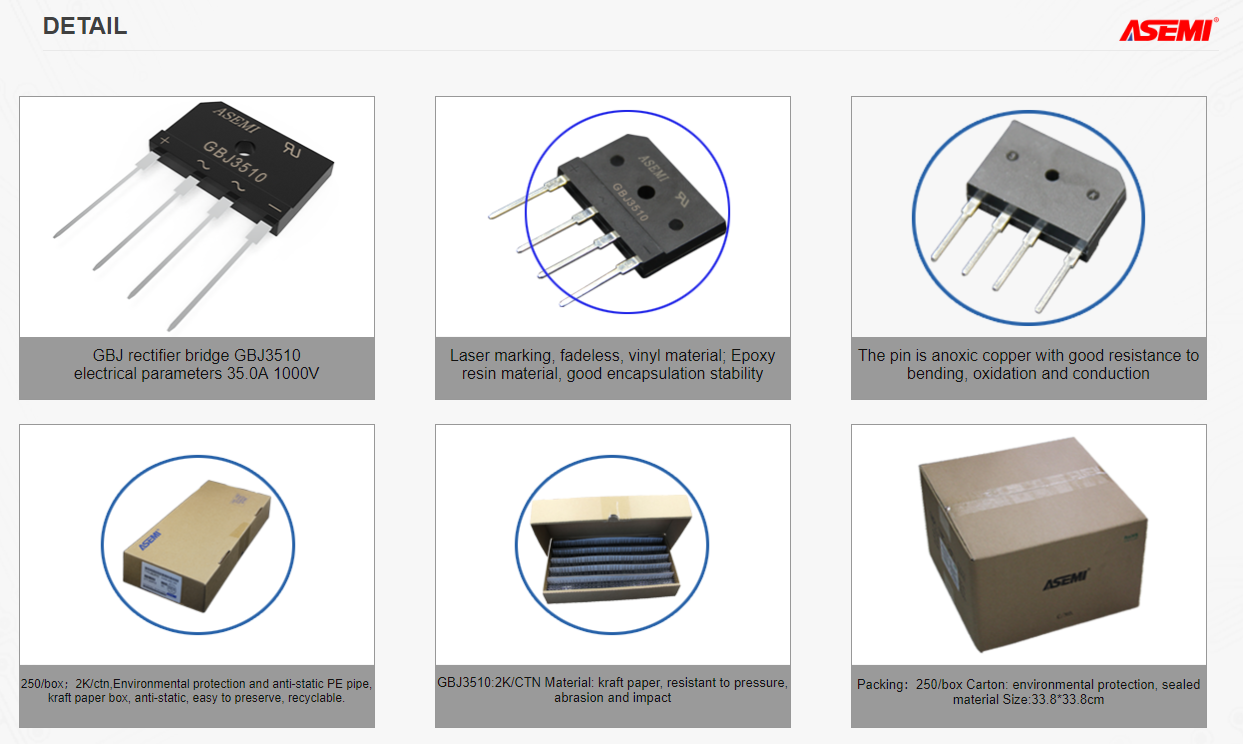

At the same time, this rectifier bridge is different from the packaging technology used by ASEMI. It uses epoxy plastic grease material, which has strong encapsulation stability and professional integrated mechanical equipment to ensure the precision of the production process!

GBU-4 package, very thin body, higher heat dissipation,stable and stronger quality

induction cooker production needs to be equipped with high-quality induction cooker rectifier bridge, ASEMI rectifier bridge GBJ3510 is your nice choice.
