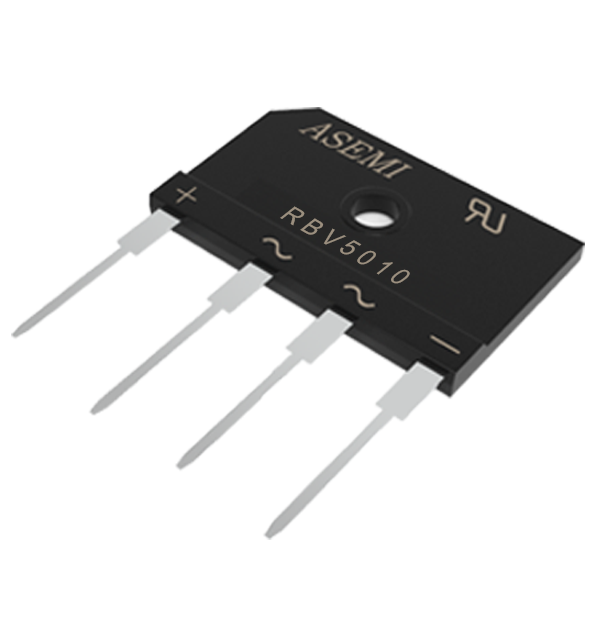

The RBV5010 package is a RBV-4 plug-in package flat bridge series. There are 4 chips inside, and its chip is made of glass-encapsulated GPP chip. The welding and frame assembly of the chip arl made by the advanced technology. The black rubber part is injection molded in one step, Guankui integrated equipment, its marking is also using laser marking, product printing clarity .

In addition to the insulation and other issues in the rectifier bridge, there is also a need to consider heat dissipation, as small as 0.8A MB6S, up to several hundred amperes rectifier modules. If the heat dissipation is not good, in addition to affecting the performance of the product at work, it will also create security problems.

RBV5010 is a rectifier bridge with its own heat sink. Under the current of 50A, the temperature rise of the bridge stack will be very fast, and it will rise to a higher level, although there are thermal grease and aluminum substrate heat sink on the back. Connected, the heat dissipation effect is still far from enough. But the RBV5010 comes with a heat sink behind it, and its heat dissipation effect which greatly improves the performance of the product.

Products produced by ASEMI are through material selection , production is subjected to a series of strict parameter screening to ensure its pass rate.

Choose ASEMI products you can rest assured.
